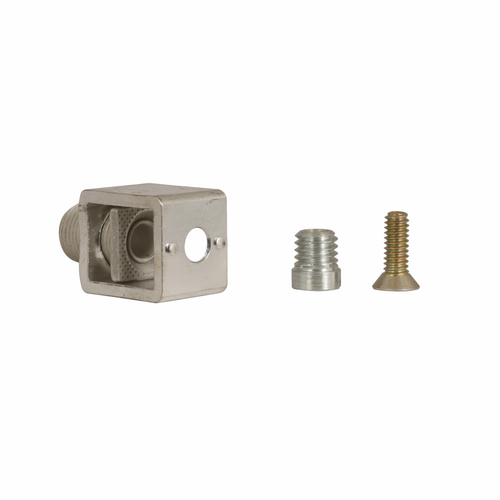

Eaton Circuit Breaker Terminal Kit, Standard Copper Pressure Terminals
Model: EAT-P439092
Eaton

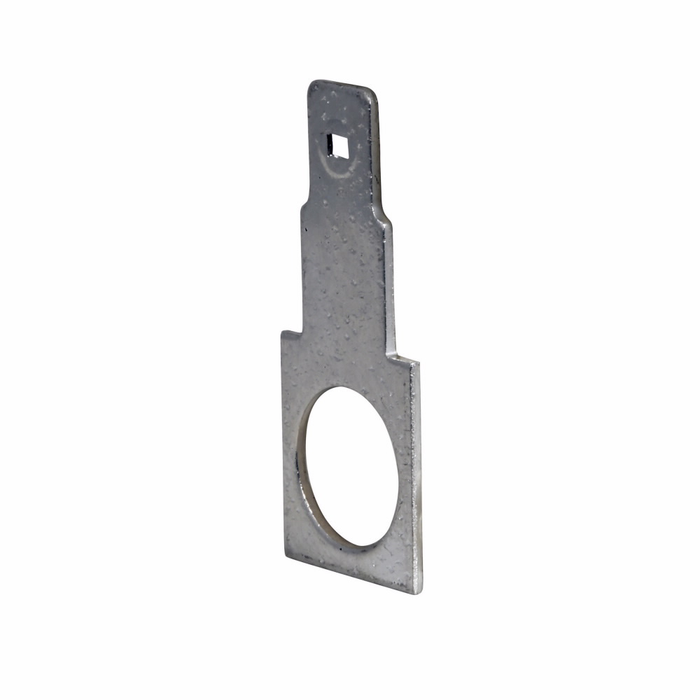

Eaton Series G Control Wire Terminal Kit, Circuit Breaker Accessory
The Eaton Series G Control Wire Terminal Kit is a molded case circuit breaker accessory built to provide secure control wire terminations on Series G breakers. Designed for use with JG-frame circuit breakers, Frame J-K, this control wire terminal kit features a compact footprint with a product width of .5 in, a length/depth of 1.5 in, and a height of .02 in. Supplied in quantities of 10, it's engineered to support consistent, code-compliant control wiring in commercial and industrial control panel applications.
Key Features
- Compact Dimensions: Product width of .5 in, length/depth of 1.5 in, and height of .02 in for low-profile fit within breaker enclosures.
- Series G Compatibility: Engineered for use with JG-frame molded case circuit breakers, Frame J-K.
- Purpose-Built Terminal Kit: Control wire terminal kit type designed specifically for secure control wire terminations on Series G breakers.
- Pack Quantity: Supplied in quantities of 10 for multi-breaker installations and panel builds.
- Special Features: Used with JG-frame breakers for consistent fit, alignment, and function.
- Manufacturer Warranty: Covered under Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.
Technical Specifications
- Type: Control wire terminal kit
- Series: Series G
- Used With: JG-frame
- Frame Size: Frame J-K
- Product Width: .5 in
- Product Length/Depth: 1.5 in
- Product Height: .02 in
- Quantity: 10
Typical Applications
- Molded Case Circuit Breaker Control Wiring
- Industrial Control Panel Installations
- Series G Breaker Accessory Upgrades and Retrofits
- Commercial Electrical Distribution Systems
- JG-Frame Breaker Terminations
Why Eaton?
Eaton engineers its Series G accessory line, including this control wire terminal kit, to deliver reliable, precisely fitted terminations for JG-frame molded case circuit breakers. Backed by Eaton's Selling Policy 25-000 warranty, this terminal kit helps electrical professionals maintain code-compliant, dependable control wiring in demanding commercial and industrial breaker installations.
Manufacturer Resources
Product Specs
- Product Width:
- .5 in
- Used with:
- JG-frame
- Item Quantity:
- 10
- Series:
- Series G
- Product Length/Depth:
- 1.5 in
- Frame size:
- Frame J-K
- Compliances:
- Contact Manufacturer
- Product Height:
- .02 in
- Product Type:
- Terminal Kit
- Special features:
- Used with JG-frame
- Department:
- Electrical
- Product Group:
- Wiring Devices
