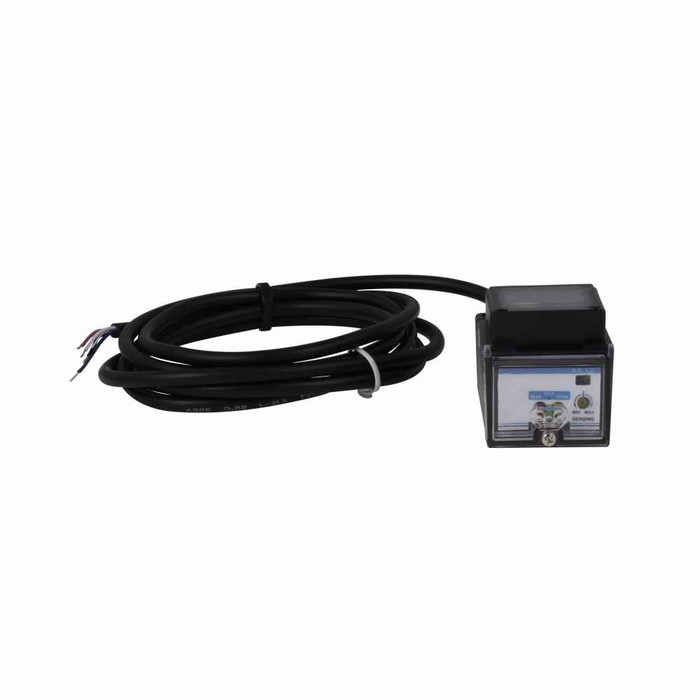

Eaton Photoelectric Sensor, Clear Object Detector, Forward Viewing, Output (green), power (yellow), alignment (red), 6.6 ft, 300 mA at 240 Vac/dc, PVC, SPNO SSR, 24-240 Vac, 12-240 Vdc
Manufacturer Resources
Product Specs
- Cable Type:
- Polyvinyl Chloride (PVC)
- Certifications:
- CSA Certified
- Compliances:
- Contact Manufacturer
- Contact Configuration:
- SPNO SSR
- Contact Rating:
- 300 mA at 240 Vac/dc
- Cord Length:
- 79.2 ft
- Enclosure Material:
- Fiberglass reinforced plastic
- Environmental Rating:
- IP67, IP69K
- Input Voltage:
- 24-240 Vac, 12-240 Vdc
- Led Indicator:
- Alignment: red
- Maximum Ac Current:
- 300 mA
- Maximum Dc Current:
- 300 mA
- Operating Temperature Max:
- 131 °F
- Operating Temperature Min:
- -13 °F
- Product Height:
- 3.13 in
- Product Length Depth:
- 3.46 in
- Product Weight:
- .7 lb
- Product Width:
- 1.91 in
- Protection:
- Output short circuit, overcircuit and reverse polarity
- Sensor Type:
- Clear object detector
