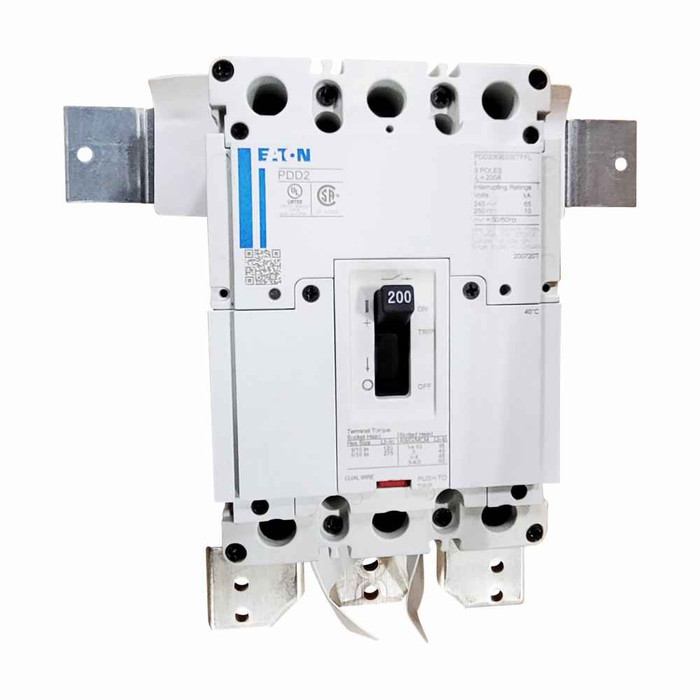

Eaton Pow-R-Xpress Main Circuit Breaker Kit 225A Single/Three-Phase with Top and Bottom Mounting
Professional Main Breaker Solution for Versatile Power Distribution Applications
The Eaton Pow-R-Xpress series main circuit breaker kit delivers reliable power distribution with 225A capacity and flexible single-phase or three-phase operation. Featuring PDG2XG circuit breaker type with top and bottom mounting options, this UL 67 certified kit provides professional-grade protection in a compact 3" x 4" x 6" design weighing just 5 pounds for versatile installation requirements.
Professional Features & Benefits
- 225A Amperage Rating: Provides robust power handling capacity for demanding electrical distribution applications with reliable overcurrent protection.
- Single/Three-Phase Compatibility: Offers installation flexibility to accommodate various electrical system configurations and load requirements.
- PDG2XG Circuit Breaker Type: Delivers proven circuit protection technology with consistent performance and reliable fault interruption capabilities.
- Top and Bottom Mounting: Enables versatile installation options to optimize panel space utilization and service accessibility.
- UL 67 Certification: Ensures compliance with recognized safety standards for panelboard and switchboard applications.
- Compact Design: 3" x 4" x 6" dimensions and 5 lb weight facilitate efficient installation in space-constrained environments.
- Pow-R-Xpress Series: Part of Eaton's established power distribution platform providing consistent quality and system compatibility.
Technical Specifications
- Amperage Rating: 225 A
- Certifications: UL 67
- Department: Electrical
- Phase: Single-phase, three-phase
- Product Details: CONV MCB KIT
- Product Group: Electrical
- Product Height: 3 in
- Product Length Depth: 6 in
- Product Weight: 5 lb
- Product Width: 4 in
- Rated Operational Current: 125A
- Series: Pow-R-stock
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial Electrical Panels
- Industrial Distribution Systems
- Multi-Unit Residential Properties
- Professional Office Buildings
- Retail and Service Establishments
- Light Industrial Facilities
- Electrical Contractor Projects
Why Choose Eaton Quality?
Eaton Pow-R-Xpress series main breaker kits provide dependable circuit protection with UL 67 certification ensuring compliance with industry safety standards. The compact, lightweight design combined with flexible mounting options delivers professional reliability for diverse electrical distribution applications requiring proven overcurrent protection performance.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 225 A
- Certifications:
- UL 67
- Phase:
- Single-phase, three-phase
- Product Height:
- 3 in
- Product Length Depth:
- 6 in
- Product Weight:
- 5 lb
- Product Width:
- 4 in
- Rated Operational Current:
- 125A
- Series:
- Pow-R-stock
- Product Group:
- Electrical
- Department:
- Electrical
- Product Details:
- CONV MCB KIT
