Eaton PDG13M0125KNSN Power Def...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$939.81
$889.81

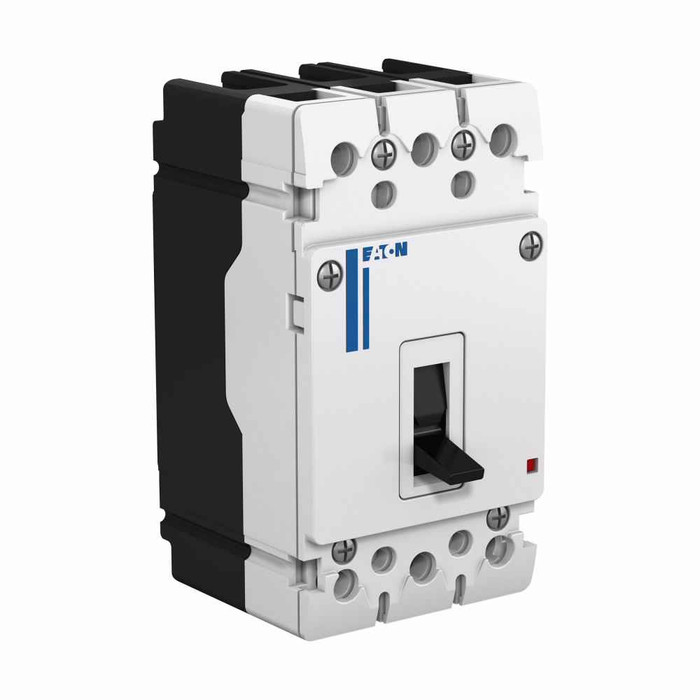

Eaton PDG13M0125KNSN Power Defense molded case switch, Globally Rated, Frame 1, Three Pole, 125A, 65kA/480V, Molded Case Switch, No Terminals

Eaton PDG13M0125KNSN Power Defense molded case switch, Globally Rated, Frame 1, Three Pole, 125A, 65kA/480V, Molded Case Switch, No Terminals

(No reviews yet) Write a Review

Model: PDG13M0125KNSN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$939.81
$889.81
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton Power Defense molded case switch, Globally Rated, Frame 1, Three Pole, 125A, 65kA/480V, Molded Case Switch, No Terminals

Manufacturer Resources

Product Specs

Amperage Rating:
125A
Certifications:
IEC 60947-2
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
PD1 Global
Class:
Class A
Compliances:
RoHS Compliant
Frame:
Frame 1
Interrupt Rating:
65 kAIC at 480 Vac
Interrupt Rating Range:
25 kAIC @600V (UL/CSA)
Max Rated Operation Voltage Ue Ac:
600
Number Of Poles:
Three-pole
Product Height:
139.7 MM
Product Length Depth:
75.95 MM
Product Weight:
1.36 KG
Product Width:
76.2 MM
Switch Off Technique:
Thermomagnetic
Terminals:
No Terminals
Type:
Molded Case Switch
Voltage Rating:
600 Vac
Voltage Rating Max :
600 V
!
