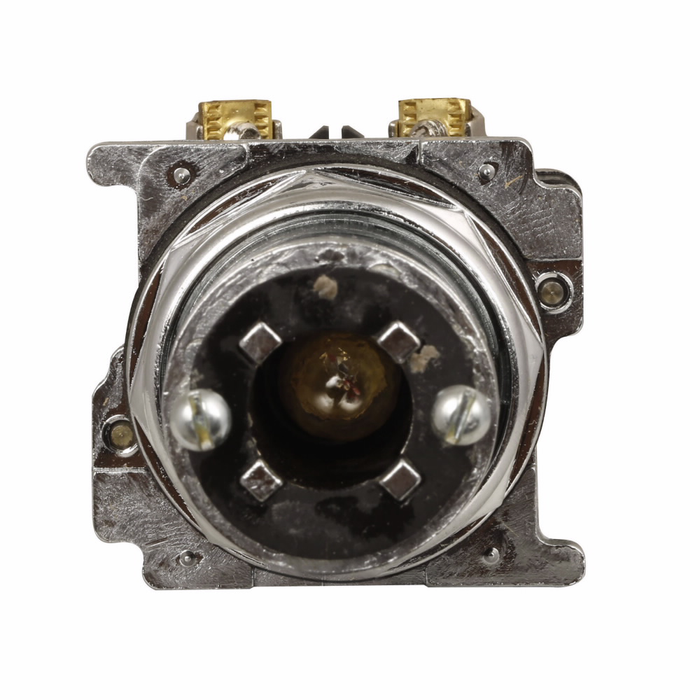

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, 10250T Series

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, 10250T Series

(No reviews yet) Write a Review

Model: 10250T6127

In Stock (leaves warehouse same day if ordered before 3pm ET)

$343.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty 30.5 mm Illuminated Pushbutton, 10250T Series

Eaton's Heavy-Duty 30.5 mm Illuminated Pushbutton, part of the 10250T series, is built for demanding industrial control panels and machine operator interfaces. This illuminated operator uses an incandescent lamp with transformer for the light unit, carries a 480 V voltage rating, and is rated across NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 enclosure types, making it suitable for harsh indoor and outdoor control environments. UL Listed and CE Marked, this heavy-duty 30.5 mm pushbutton delivers dependable, code-compliant switching performance for professional electrical and machine-control installations.

Key Features

  • Heavy-Duty 30.5 mm Type: Heavy-duty 30.5 mm pushbutton construction built for repeated actuation in industrial control applications.
  • Illuminated Operator: Illumination type is Illuminated, with an incandescent, transformer-driven light unit for clear visual status indication.
  • Cam Code: Cam 7 actuator configuration for defined switching action.
  • Throw Type: 40° throw type for consistent actuator travel and feel.
  • Number of Positions: 4-position switching for multi-state control applications.
  • Voltage Rating: Rated 480 V for use in industrial control circuits.
  • Compact Footprint: 1 in product width, 1 in length/depth, 1 in height, and 1.38 in diameter for standard 30.5 mm panel cutouts.
  • Warranty: Backed by a 1 year manufacturer warranty.

Certifications & Compliance

  • UL Listed
  • CE Marked
  • NEMA 3 Rated
  • NEMA 3R Rated
  • NEMA 4 Rated
  • NEMA 4X Rated
  • NEMA 12 Rated
  • NEMA 13 Rated

Technical Specifications

  • Warranty: 1 year
  • Department: Electrical
  • Product Type: Pushbutton

Typical Applications

  • Industrial Control Panels and Machine Operator Interfaces
  • HMI and Panel-Mounted Switching Assemblies
  • Outdoor and Wet-Location Control Enclosures (NEMA 3/3R/4/4X Rated)
  • Washdown and Corrosive-Environment Equipment (NEMA 4X/12/13 Rated)
  • Manufacturing and Process Control Stations

Why Eaton?

Eaton's heavy-duty 30.5 mm pushbutton line is engineered for the reliability that industrial control applications demand, backed by UL Listed and CE Marked certification and a broad NEMA enclosure rating spanning NEMA 3 through NEMA 13. With an illuminated incandescent light unit, defined 40° throw action, and rugged heavy-duty construction, this 10250T series pushbutton is built to deliver consistent, code-compliant performance across demanding electrical and machine-control environments.

Manufacturer Resources

Product Specs

Illumination:
Illuminated
Performance Rating:
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Series:
10250T
Warranty:
1 year
Department:
Electrical
Product Type:
Pushbutton
Compliances:
CE Marked
Light unit type:
Incandescent, transformer
Voltage Rating:
480V
Listing:
UL Listed
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250T6127 – Frequently Asked Questions

1) Can I use this Eaton pushbutton in a washdown or outdoor enclosure?
Yes. The 10250T illuminated pushbutton carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers rain and sleet outdoors, hosedown and washdown areas, corrosive duty (4X), and dust or oil-laden indoor plant environments. The enclosure it goes into has to carry the same rating for the assembly to hold that protection.
2) What voltage options does the Eaton 10250T illuminated pushbutton come in?
The operator is rated to 480 V for industrial control circuits, and the ordering choices include a 120 volt version (MPN 10250T6153) and a 480 volt version (MPN 10250T6127), plus 10250T6032 and 10250T6213. Match the light unit voltage to your control transformer secondary, not to the incoming line.
3) Is this Eaton 10250T pushbutton a simple momentary start button?
No. This is a 4-position operator with a cam 7 configuration and a 40 degree throw, so it is a multi-position selector style device rather than a two-state momentary start or stop button. If you need a plain momentary contact for a start circuit, specify a standard momentary 10250T operator instead of this 4-position unit.
4) What type of lamp is in this illuminated Eaton pushbutton, and can it be relamped?
It uses an incandescent lamp with a transformer in the light unit. On a transformer type illuminated operator the lamp itself runs at low voltage while the transformer takes the panel control voltage, which is why you order the unit to the control voltage rather than the lamp voltage. Plan on incandescent lamp replacement as a routine maintenance item in high-cycle stations.
5) Can I mix these Eaton heavy-duty operators with 22 mm pushbuttons already in my panel?
Not in the same hole. The 10250T line is heavy-duty 30.5 mm, and a 22 mm compact operator uses a smaller cutout, so the two are not interchangeable without a new punch or an adapter plate. If your existing panel is punched 30.5 mm, this drops straight in.
