Eaton

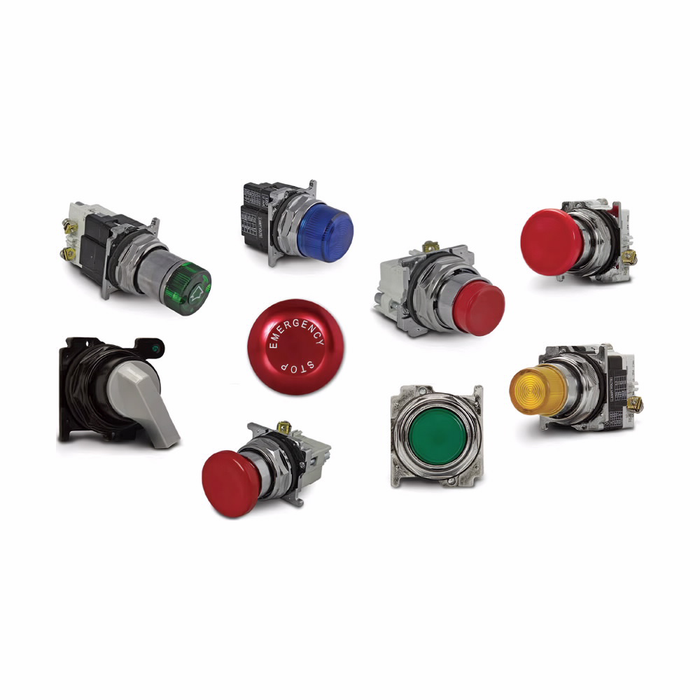

Eaton Heavy-Duty Illuminated Pushbutton, NEMA 4X
The Eaton Heavy-Duty Illuminated Pushbutton (Series 10250T) is a 30.5 mm heavy-duty pushbutton built for demanding industrial control applications. Rated NEMA 3, 3R, 4, 4X, 12, 13, it stands up to washdown, dust, and outdoor exposure while its LED light unit delivers full-voltage 120 Vac illumination for clear, at-a-glance status visibility. Configured with the EMERGENCY STOP legend and a push-maintained operating mode, this pushbutton is engineered for reliable machine safety and control-panel performance.
Key Features
- Trade Size: 30.5 mm heavy-duty actuator design with an overall 40 mm size for standard panel cutouts.
- Durable Construction: Plastic bus material supports reliable long-term switching performance.
- Illumination: LED, full-voltage light unit operating at 120 Vac for consistent, energy-efficient status indication.
- Operating Mode: Push: maintained action with 2 positions for dependable manual control.
- Contact Configuration: 1 LONC contact block for straightforward circuit integration.
- Actuator: Standard red actuator with EMERGENCY STOP legend for immediate visual identification.
- Environmental Rating: NEMA 3, 3R, 4, 4X, 12, 13 rated enclosure suitable for indoor, outdoor, washdown, and dusty/wet-location environments.
- Compact Footprint: Product dimensions of 2.5 in width, 2 in depth, and 2.5 in height fit standard panel layouts.
Certifications & Compliance
- UL Listed
- CE Marked
- NEMA 3, 3R, 4, 4X, 12, 13 Rated
Technical Specifications
- Warranty: 1 year
- Department: Electrical
- Product Type: Pushbutton
Typical Applications
- Industrial Machine Control Panels
- Emergency Stop Stations
- Heavy-Duty Manufacturing Equipment
- Outdoor and Wet-Location Control Enclosures
- Panelboard and Control Panel Wiring
- Washdown and Dusty Industrial Environments
Why Eaton?
Eaton engineers this heavy-duty 30.5 mm pushbutton with a durable plastic bus, full-voltage LED illumination, and a NEMA 3, 3R, 4, 4X, 12, 13 rated enclosure to perform reliably across harsh industrial environments. Backed by UL Listing, CE Marking, and a 1-year warranty, it delivers the code-compliant, dependable performance professionals expect for critical machine control and emergency-stop applications.
Manufacturer Resources
Product Specs
- Warranty:
- 1 year
- Series:
- 10250T
- Department:
- Electrical
- Illumination:
- Illuminated
- Compliances:
- CE Marked
- Product Type:
- Pushbutton
- Product Material:
- Plastic
- Product Color:
- Red
- Voltage Rating:
- 120V
- Standards:
- NEMA 4X
- Listing:
- UL Listed
- Product Group:
- Push Buttons
