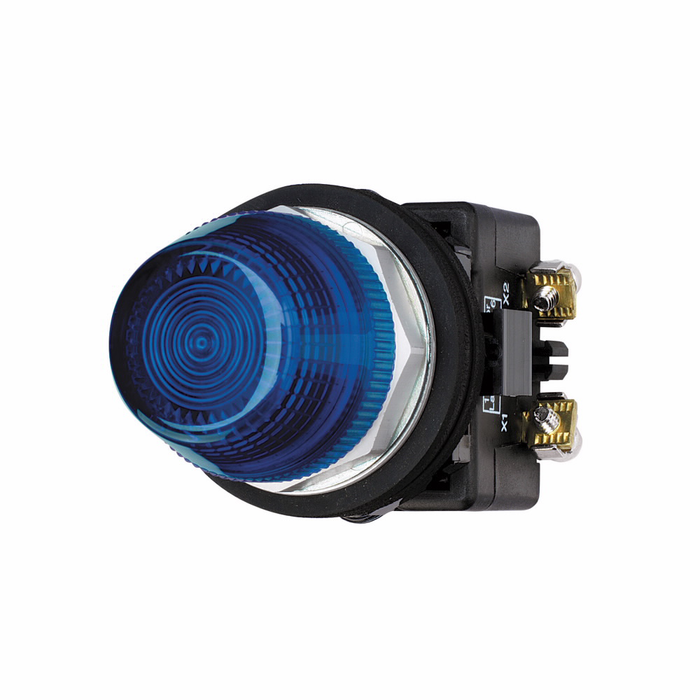

Eaton HT800 Illuminated Indicating Light Pushbutton, Chrome, NEMA 4X

Eaton HT800 Illuminated Indicating Light Pushbutton, Chrome, NEMA 4X

(No reviews yet) Write a Review

Model: HT8HFCV7
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$232.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton HT800 Illuminated Indicating Light Pushbutton, Chrome, NEMA 4X

The Eaton HT800 Illuminated Indicating Light Pushbutton is a watertight and oiltight pilot device built for demanding industrial control panels. Featuring a chrome bezel, standard actuator, and an incandescent full-voltage light unit rated 120 Vac/dc, this momentary pushbutton delivers reliable illuminated status indication. Rated NEMA 3, 3R, 4, 4X, 12, and 13, it is UL Listed and suited for use across harsh indoor and outdoor environments where washdown, dust, and oiltight protection are required.

Key Features

  • Watertight/Oiltight Construction (HT800): Sealed design protects internal components from moisture, washdown, and oil exposure in industrial settings.
  • Illuminated Indicating Light Unit: Incandescent, full-voltage light unit type provides clear visual status indication at the panel.
  • Momentary Operating Mode: Standard actuator returns to its normal position when released, ideal for start/stop and jog control functions.
  • 120 Vac/dc Rating: Full-voltage incandescent illumination sized for common 120V control circuits.
  • NEMA 3, 3R, 4, 4X, 12 and 13 Rated: Suitable for outdoor, washdown, corrosive, and dust/oil-tight enclosure applications.
  • Chrome Bezel Finish: Corrosion-resistant chrome bezel provides a durable, professional appearance on the panel face.
  • Standard Actuator: Straightforward, low-profile actuator style for general-purpose pushbutton control.

Certifications & Compliance

  • UL Listed
  • NEMA 3, 3R, 4, 4X, 12 and 13 Rated
  • Watertight and Oiltight (HT800) Design

Technical Specifications

  • Product Type: Pushbutton
  • Warranty: 1 year
  • Illumination: Illuminated
  • Light Unit Type: Incandescent, full voltage
  • Operating Mode: Momentary
  • Bezel: Chrome
  • Actuator: Standard
  • Type: Watertight/Oiltight-HT800
  • Certifications: UL Listed

Typical Applications

  • Industrial Machine Control Panels
  • Washdown and Wet-Location Equipment
  • Outdoor Electrical Enclosures
  • Oil and Dust-Tight Process Environments
  • Start/Stop and Jog Control Stations

Why Eaton?

Eaton's HT800 series combines watertight and oiltight construction with UL Listed reliability, giving panel builders and maintenance teams a pushbutton that stands up to harsh industrial conditions. The chrome bezel, incandescent illumination, and broad NEMA 3, 3R, 4, 4X, 12 and 13 rating make it a dependable, code-compliant choice for professional electrical control work.

Manufacturer Resources

Product Specs

Illumination:
Illuminated
Product Width:
2.1 in
Product Length/Depth:
2.4 in
Product Height:
3.2 in
Light unit type:
Incandescent, full voltage
Product Type:
Pushbutton
Warranty:
1 year
Operating mode:
Momentary
Product Category:
Indicating light unit
Product Style:
30.5 mm
Bezel:
Chrome
Actuator:
Standard
Certifications:
UL Listed
Department:
Electrical
Product Finish:
Chrome
Voltage Rating:
120V AC/DC
Listing:
UL Listed
Standards:
NEMA 3/3R/4/4X/12/13
Configuration:
Momentary
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton HT8HFCV7 – Frequently Asked Questions

1) Can I mount this Eaton HT800 pushbutton in an outdoor or washdown enclosure?
Yes. The HT800 is a watertight and oiltight pilot device rated NEMA 3, 3R, 4, 4X, 12 and 13, which covers outdoor rain and sleet, hosedown and washdown, corrosion-resistant 4X duty, and dust and oil-tight indoor process areas. It is UL Listed.
2) What control voltage does the Eaton HT800 illuminated pushbutton light run on?
The light unit is incandescent full-voltage rated 120 Vac/dc, so it wires directly across a 120V control circuit with no transformer or resistor lamp module. If your panel runs 24V control, this is not the unit for that circuit.
3) Is the Eaton HT800 a maintained or momentary pushbutton?
Momentary. The standard actuator springs back to its normal position the moment you let go, which suits start, stop and jog stations. It will not latch in, so do not use it where you need a maintained on/off selector action.
4) Do I get an indicating light and a pushbutton in one device, or do I need two holes?
One hole. The HT800 is an illuminated pushbutton, so the actuator and the indicating light unit share a single 30.5 mm cutout. That saves a second cutout when you need both a command and a status lamp at the same point on the panel.
5) Is the lamp in this Eaton illuminated pushbutton LED or incandescent?
Incandescent, full voltage at 120 Vac/dc. That matters for maintenance planning: incandescent lamps are replaceable consumables and draw more than an LED unit, so if your panel standard calls for LED status lamps, spec a different light unit type.
6) Will a chrome bezel hold up in a corrosive or wet plant area?
The HT800 pushbutton uses a chrome bezel, which the design pairs with its watertight/oiltight sealed construction and NEMA 4X corrosion rating. On panel faces that get regular washdown or chemical mist, that combination is what keeps the front of the device serviceable.
