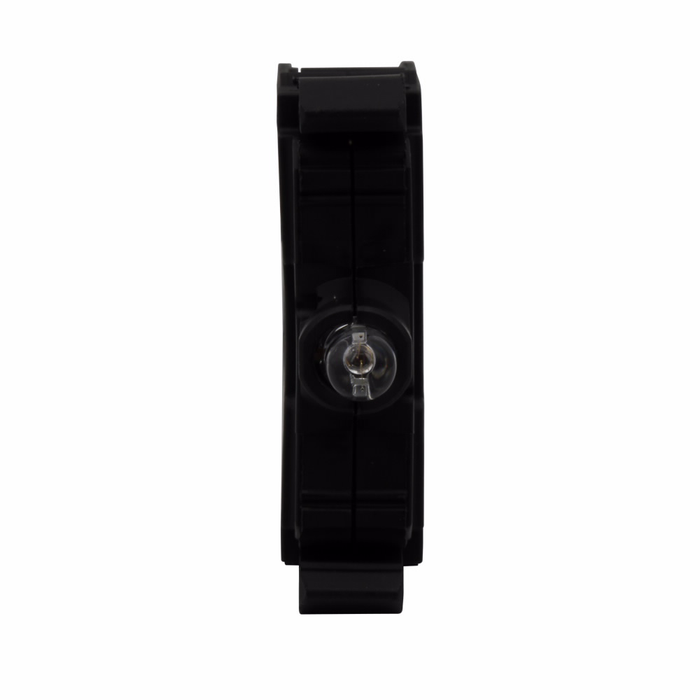

Eaton M22 Illuminated Pushbutton Light Unit, Flush Momentary, Blue, IP66/NEMA 4X
The Eaton M22 Illuminated Pushbutton Light Unit is a modular pilot device component engineered for visual status indication on industrial control panels. Part of Eaton's M22 series, this light unit features a blue illuminated lens, a screw-actuated flush momentary design, and a voltage rating of 85-264 V. Rated IP66, NEMA 4X, 13, it is built to perform reliably in washdown, wet, and dusty industrial environments while meeting CE Marked and CCC Marked compliance standards.
Key Features
- Illumination: Illuminated light unit with a Blue lens for clear, at-a-glance visual status indication.
- Compact Footprint: Measures 2 in wide x 2 in deep x 1 in high, suited for space-constrained panel layouts.
- Mounting Cutout: Standard 22.5 mm M22 panel cutout for compatibility across the Eaton M22 pilot device platform.
- Actuator Style: Screw-actuated, Flush Momentary operator type for durable, repeatable operation.
- Voltage Rating: 85-264 V rated for broad control-circuit compatibility.
- Environmental Protection: IP66, NEMA 4X, 13 rated for wet, washdown, dusty, and corrosive environments.
- Series Compatibility: Part of the Eaton M22 series, designed to integrate with M22 button lenses, light units, and contact blocks.
Certifications & Compliance
- CE Marked
- CCC Marked
- IP66, NEMA 4X, 13 Environmental Rating
Technical Specifications
- Product Type: Pushbutton
- Series: M22
- Department: Electrical
Typical Applications
- Industrial Control Panels and Enclosures
- Machine Operator Interface Stations
- HVAC and Process Equipment Controls
- Outdoor and Washdown-Duty Equipment
- OEM Panel Building and Retrofits
Why Eaton?
Eaton's M22 series pilot devices are engineered for dependable, code-compliant performance in demanding industrial settings. With an IP66, NEMA 4X, 13 environmental rating and CE and CCC marked compliance, this illuminated light unit is built to deliver consistent visual signaling and long-term reliability for professional control panel applications.
Manufacturer Resources
Product Specs
- Actuator:
- Screw
- Department:
- Electrical
- Series:
- M22
- Product Height:
- 1 in
- Compliances:
- CE Marked
- Product Color:
- Blue
- Product Width:
- 2 in
- Light color:
- Blue
- Product Length/Depth:
- 2 in
- Environmental rating:
- IP66, NEMA 4X, 13
- Illumination:
- Illuminated
- Product Size:
- 22.5 mm
- Product Group:
- Wiring Devices
- Product Type:
- Pushbutton
