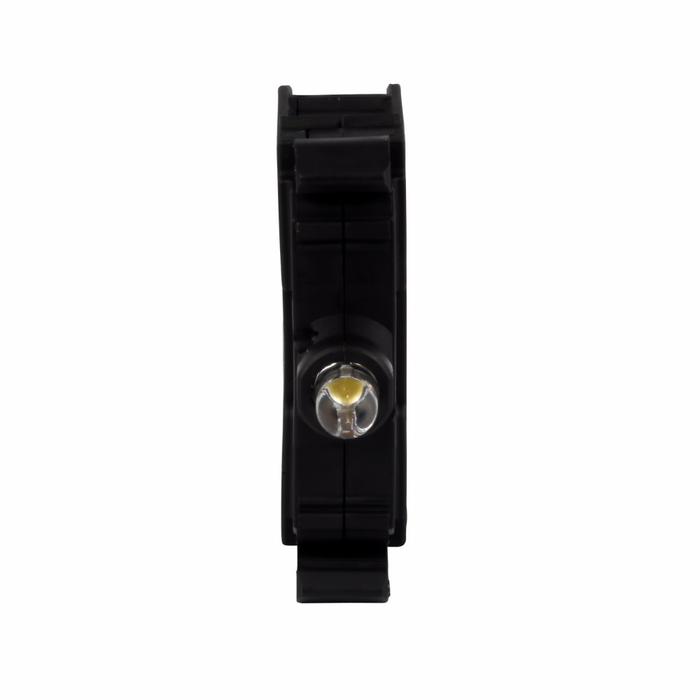

Eaton M22 Illuminated LED Light Unit, IP66/NEMA 4X

Eaton M22 Illuminated LED Light Unit, IP66/NEMA 4X

(No reviews yet) Write a Review

Model: M22-LED-W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 Illuminated LED Light Unit, Screw Actuator, IP66/NEMA 4X

The Eaton M22 Illuminated LED Light Unit is a modular pilot device component designed for the M22 pushbutton platform, providing bright, reliable illumination in control panels and industrial enclosures. Featuring a screw-type actuator for secure mounting and wiring, this light unit carries an IP66, NEMA 4X, 13 environmental rating with an Rk resistance of 4.7, making it suitable for demanding indoor and outdoor industrial environments. Available in a range of operating voltages and lens colors, it is part of Eaton's M22 Series, engineered for durability and consistent performance in HMI and machine control applications.

Key Features

  • Illuminated Light Unit: LED-illuminated design for clear visual status indication on control panels.
  • Screw Actuator: Screw-type actuation for a secure, dependable mechanical connection during installation and service.
  • Low-Voltage Control: Designed to support common low-voltage control circuits.
  • Environmental Rating: Rated IP66, NEMA 4X, 13 with an Rk resistance of 4.7 for protection against dust, water, and corrosive environments.
  • Compact Size: 22.5 mm mounting size with a 2 in product width and 2 in product length/depth for standard panel cutouts.
  • M22 Series: Part of Eaton's modular M22 pushbutton and pilot device platform, compatible with a wide range of button lenses, light units, and contact blocks.

Certifications & Compliance

  • CE Marked
  • IP66 Rated
  • NEMA 4X, 13 Rated

Technical Specifications

  • Product Type: Pushbutton
  • Series: M22
  • Illumination: Illuminated
  • Type: Light Unit
  • Actuator: Screw
  • Size: 22.5 mm
  • Product Width: 2 in
  • Product Length/Depth: 2 in
  • Environmental Rating: IP66, NEMA 4X, 13, Rk resistance 4.7
  • Compliances: CE Marked

Typical Applications

  • Industrial Control Panels
  • Machine Control and HMI Stations
  • Outdoor and Wet-Location Control Enclosures
  • Panelboard and Switchgear Indication
  • Manufacturing and Process Automation Equipment

Why Eaton?

Eaton's M22 Series pilot devices are built for reliable, code-compliant performance in demanding industrial settings. With an IP66, NEMA 4X, 13 environmental rating, CE marking, and a modular design compatible with a full range of button lenses, light units, and contact blocks, this LED Light Unit delivers the durability and consistent illumination professionals expect from Eaton's control and connectivity solutions.

Variant Specifications

VoltageColorSKUMPN
Standard (12-30V)GreenM22-LED-GM22LEDG
Standard (12-30V)RedM22-LED-RM22LEDR
Standard (12-30V)WhiteM22-LED-WM22LEDW
230VGreenM22-LED230-GM22LED230G
230VRedM22-LED230-RM22LED230R
230VWhiteM22-LED230-WM22LED230W

Manufacturer Resources

Product Specs

Department:
Electrical
Series:
M22
Illumination:
Illuminated
Product Size:
22.5 mm
Actuator:
Screw
Product Width:
2 in
Product Length/Depth:
2 in
Product Group:
Motor Control & Automation
Product Type:
Electrical Component
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22-LED-W – Frequently Asked Questions

1) Is the Eaton M22 LED light unit a complete indicator light, or do I need more parts?
It is the light unit only, one module in Eaton's M22 platform. To get a working indicator on the panel you also need the lens/button front and the mounting adapter or holder that clamps into the cutout. The M22 system is built that way on purpose: the same light unit sits behind different lenses and stacks with contact blocks on illuminated pushbuttons. If you are replacing a burned-out indicator and the lens and holder are intact, the light unit alone is the part you need.
2) Can I use this Eaton M22 LED indicator in an outdoor or washdown enclosure?
Yes. The M22 LED light unit carries an IP66, NEMA 4X, 13 rating, which covers dust, powerful water jets, corrosion and oil. That makes it usable in outdoor control enclosures, washdown areas and machine tool panels where coolant is present. The rating holds only when the device is properly mounted in the enclosure with its gasket and the enclosure itself carries a matching rating.
3) What panel cutout does the M22 LED light unit fit?
The M22 platform is a 22.5 mm device, so it goes into the standard 22 mm round panel cutout used across industrial control stations. Overall the part measures 2 inches wide by 2 inches in length/depth, which is what you need for clearance behind the door and spacing between adjacent devices on a crowded panel.
4) Does the Eaton M22 LED light unit have a screw terminal or a spring clamp?
Screw actuator. The connection is screw type, which is what most existing panels are wired for and what a lot of MRO shops prefer for retrofit work because you can land existing stripped conductors without changing ferrules or tooling.
5) What lens colors does the Eaton M22 LED light unit come in?
Three: red, green and white, each available in both the 12-30V and the 230V version. Red and green are the usual stop/run or fault/ready pairing on a machine control station, and white is commonly used for power-on or neutral status. If you are standardizing a plant on one platform, all six part numbers share the same 22.5 mm M22 body so panel prep does not change between them.
6) Is the Eaton M22 LED light unit CE marked for a machine going to Europe?
Yes, the M22 LED light unit is CE marked, along with its IP66 and NEMA 4X, 13 environmental ratings. For a machine build headed to an EU site, the 230V versions (M22-LED230-G, -R and -W) are the ones that run directly off 230V control power.
How fast can I get the Eaton M22-LED-W delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton M22-LED-W come with a warranty?
Absolutely. The Eaton M22-LED-W is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton M22-LED-W?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Eaton M22-LED-W from ZenSupply?
