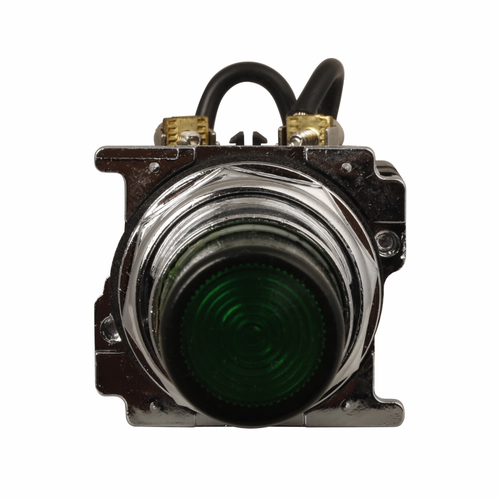

Eaton Heavy-Duty Watertight/Oiltight PresTest Indicating Light Pushbutton

Eaton Heavy-Duty Watertight/Oiltight PresTest Indicating Light Pushbutton

(No reviews yet) Write a Review

Model: 10250T235NC22

In Stock (leaves warehouse same day if ordered before 3pm ET)

$233.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty Watertight/Oiltight PresTest Indicating Light Pushbutton

The Eaton Heavy-Duty Watertight/Oiltight PresTest Indicating Light Pushbutton is a 30.5 mm style panel-mount device built for demanding industrial environments. Featuring a 120 Vac incandescent light unit with transformer and a green plastic lens, this Eaton unit is rated NEMA 3 for reliable indication in watertight and oiltight applications. Part of Eaton's 10250T series, it combines a PresTest actuator with CSA Certified and CE Marked compliance for dependable performance on the panel.

Key Features

  • Style: 30.5 mm mounting style for standard heavy-duty panel cutouts.
  • Durable Construction: Heavy-Duty Watertight/Oiltight type construction rated NEMA 3 for demanding indoor and outdoor duty.
  • PresTest Actuator: PresTest actuator design allows lamp testing directly at the device.
  • Light Unit Voltage: 120 Vac incandescent light unit with transformer for consistent illumination.
  • Lens: Green plastic lens for clear, high-visibility status indication.
  • Series: Eaton 10250T series construction for consistent fit and performance.
  • Certifications: CSA Certified and CE Marked for compliant industrial installations.

Certifications & Compliance

  • CSA Certified
  • CE Marked
  • NEMA 3 Rated

Technical Specifications

  • Warranty: 1 year
  • Product Type: Pushbutton
  • Department: Electrical
  • Light Unit Voltage: 120 Vac
  • Rating: NEMA 3
  • Lens Color: Green
  • Lens Material: Plastic
  • Light Unit Type: Incandescent, transformer
  • Style: 30.5 mm
  • Series: 10250T
  • Actuator: PresTest

Typical Applications

  • Industrial Control Panels
  • Machine Tool Control Stations
  • Outdoor and Wet-Location Equipment
  • Process Control and Signaling Systems
  • Panel-Mount Status Indication

Why Eaton?

Eaton's Heavy-Duty Watertight/Oiltight Indicating Light Pushbutton is engineered with CSA Certified and CE Marked compliance, backed by a NEMA 3 rating for tough, real-world panel environments. The PresTest actuator and 10250T series construction give electrical professionals a reliable, code-compliant option for critical signaling applications.

Manufacturer Resources

Product Specs

Warranty:
1 year
Series:
10250T
Actuator:
PresTest
Product Type:
Pushbutton
Department:
Electrical
Compliances:
CE Marked
Product Material:
Plastic
Product Color:
Green
Voltage Rating:
120V
Listing:
CSA Certified
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250T235NC22 – Frequently Asked Questions

1) What does the PresTest actuator on the Eaton 10250T indicating light actually do?
PresTest lets an electrician test the lamp right at the device. Press the lens on the Eaton 10250T indicating light and the bulb energizes, so you can confirm the lamp is good without pulling the unit or tracing the circuit back to the panel. It is the difference between a dark light meaning the process is off and a dark light meaning a burned-out bulb.
2) What size panel cutout do I need for the Eaton 10250T pushbutton?
It is a 30.5 mm style device, which is the standard heavy-duty panel cutout used across the 10250T line. If your enclosure is already drilled for 30.5 mm heavy-duty pilot devices, this drops straight in; it will not fit a 22 mm cutout without an adapter.
3) Can I wire this Eaton indicating light directly to 120 volts?
Yes. The light unit is a 120 Vac incandescent type with an integral transformer, so it connects straight to a 120 Vac control circuit with no separate transformer needed in the panel.
4) Is the Eaton 10250T indicating light OK for an outdoor or washdown location?
It carries a NEMA 3 rating, which covers watertight and oiltight duty, so it holds up to rain, sleet and windblown dust on outdoor equipment and to coolant or oil splash on machine tool stations. NEMA 3 is not a submersion or high-pressure washdown rating, so for direct hose-down duty you want a higher enclosure type.
5) Will the Eaton 10250T pass inspection on a CSA or CE job?
The device is CSA Certified and CE Marked, so it is acceptable on Canadian control panels and on equipment being built to European conformity requirements. Those are the two compliance marks stated for the product.
6) What is the difference between the Eaton watertight and oiltight versions of this pushbutton?
Both are built on the same 30.5 mm 10250T heavy-duty platform and both fall under the watertight/oiltight construction type. Order by part number: 10250T221N is the oiltight selection, 10250T235NC22 the watertight, and 10250T74NG is the third option in the group. Choose based on what your panel is exposed to, coolant and cutting oil spray versus weather and water.
7) What color lens does the Eaton PresTest indicating light use, and what is it made of?
Green plastic. Green is conventionally the run or power-on state on a control panel, so it pairs with a red stop or fault light on the same station. Plastic lenses shrug off impact better than glass, which matters on a machine tool station where a wrench can find the panel.
8) Where does an Eaton 10250T PresTest light typically get used?
Industrial control panels, machine tool control stations, process control and signaling systems, outdoor and wet-location equipment, and general panel-mount status indication. Anywhere an operator needs a status light that can be proved good on the spot rather than assumed.
