Eaton 10250T Series Square Leg...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6.89

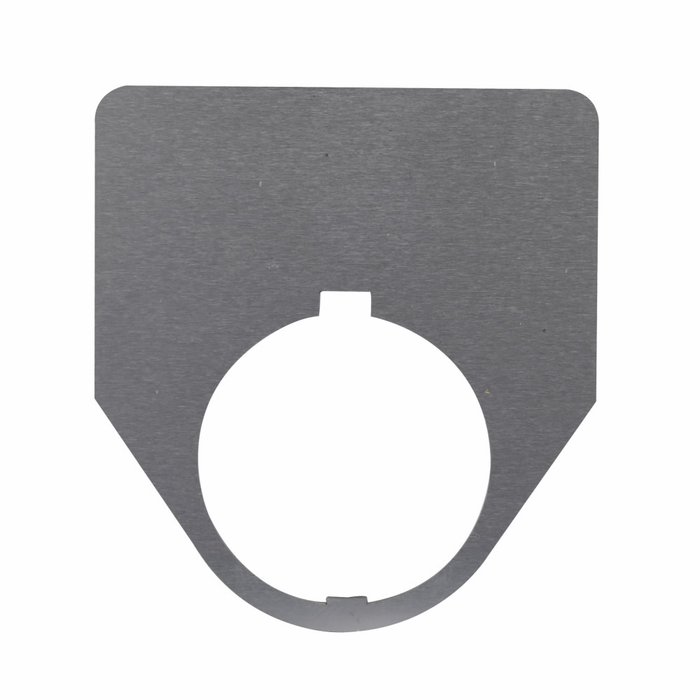

Eaton 10250T Series Square Legend Plate for Pushbutton Operators

Eaton 10250T Series Square Legend Plate for Pushbutton Operators

(No reviews yet) Write a Review

Model: 10250TJ89

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T Series Square Legend Plate for Pushbutton Operators

The Eaton 10250T Series Square Legend Plate is a panel-mount accessory designed for use with 10250T series pushbutton operators and indicating lights. This standard-type legend plate features a satin aluminum field with a black lower field and the legend "DOWN" rendered in white, 3/16 in high lettering for clear, at-a-glance operator identification on control panels. Measuring 1.7 in wide by 1.7 in deep, it is UL Listed and CE Marked, making it a dependable choice for professional industrial control applications.

Key Features

  • Compact Square Profile: 1.7 in width and 1.7 in depth for a low-profile fit on 10250T series pushbutton and indicating light assemblies.
  • Durable Construction: Satin aluminum field provides a clean, professional appearance and long-lasting legibility.
  • Clear Legend Marking: "DOWN" legend in 3/16 in high white lettering on a black lower field for high-contrast operator identification.
  • Purpose-Built Compatibility: Engineered specifically for use with 10250T Series pushbutton operators and indicating lights.
  • Finish: Satin aluminum field finish with color applied to the lower portion per catalog specification.
  • Standard Type: Backed by a 1-year manufacturer warranty for reliable long-term performance.

Certifications & Compliance

  • UL Listed
  • CE Marked

Technical Specifications

  • Warranty: 1 year
  • Department: Electrical
  • Product Type: Legend Plate

Typical Applications

  • Industrial Control Panels and Operator Stations
  • Pushbutton and Indicating Light Assemblies
  • Machine Control and Automation Enclosures
  • Panel Labeling for Operator Identification
  • OEM Equipment and Switchboard Applications

Why Eaton?

Eaton's 10250T Series legend plates are built for clear, durable operator identification on industrial control panels. With a satin aluminum field, high-contrast white lettering, UL Listed and CE Marked compliance, this legend plate delivers the code-compliant reliability professionals expect from Eaton on every installation.

Manufacturer Resources

Spec Sheet

Product Specs

Warranty:
1 year
Series:
10250T
Department:
Electrical
Compliances:
CE Marked
Product Type:
Legend Plate
Product Material:
Aluminum
Product Finish:
Satin Aluminum
Listing:
UL Listed
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250TJ89 – Frequently Asked Questions

1) Will an Eaton 10250T legend plate fit any 30.5mm pushbutton, or only Eaton operators?
These legend plates are built specifically for Eaton 10250T Series pushbutton operators and indicating lights. They mount between the operator and the panel on that series, so don't plan on them as a universal label for another manufacturer's control station.
2) What legend markings can I get on the Eaton 10250T plates?
Pre-printed legends cover the common machine control functions: STOP, E-STOP, DOWN, CLOSE, IN, HIGH, REVERSE, JOG FOR., JOG REV., POWER ON, MOTOR RUN, MOTOR STOP, CLAMP, UNCLAMP, and PULL START/PUSH STOP. If the wording you need is not on that list, there is a custom stamped blank, 10250TLP77STAMP, that gets marked to your text.
3) I need an E-Stop label for a 10250T mushroom button. Which plate do I order?
Two E-STOP plates are offered: 10250TS13, a square red plate, and 10250TRP79, a round yellow plate with a red legend. The round yellow-and-red version is the one that matches the usual yellow-background emergency stop convention around a red mushroom head; the square red plate suits panels already laid out with square plates throughout.
4) What is the difference between the square jumbo and standard 10250T legend plates?
Two sizes run through the family. Jumbo plates are the larger footprint used where the legend needs to read from a distance or the operator uses a jumbo mushroom head, and include 10250TL36 (black with white lettering) and 10250TLP77 (red or black). Standard size blanks include 10250TSP77 in red or black plastic and 10250TM89 in satin aluminum half round. Match the size to the operator and to the other plates already on the panel so the station looks consistent.
5) Are the 10250T legend plates metal or plastic?
Both, depending on the style you pick. The satin aluminum plates, such as 10250TJ89 and 10250TM89, are aluminum with a satin finish. Several of the marked and blank plates, including 10250TR30 (REVERSE) and 10250TSP77, are plastic in black, red or yellow. Aluminum is the choice where the plate takes wash-down or handling abuse; colored plastic is how you code a function by color.
6) How big is the square 10250T legend plate and how tall is the lettering?
The square standard plate measures 1.7 in wide by 1.7 in deep, and the legend is printed in 3/16 in high lettering. That letter height is what decides whether an operator reads the label from arm's length at the machine or has to lean in, so check it against the viewing distance at the station.
7) Can I get a blank 10250T plate and have it stamped with my own wording?
Yes. Order 10250TLP77STAMP, the square jumbo blank that gets custom stamped. Plain blanks are also available if you'd rather label them yourself: 10250TLP76 in white or silver, 10250TLP77 in red or black, 10250TRP78 round in yellow or red plastic, and 10250TSP77 in standard square.
8) Which 10250T plates should I use to label a motor start/stop station?
For a two-button motor station, 10250TS81 (MOTOR RUN) and 10250TS82 (MOTOR STOP) are the matched pair, both square black. If you want the stop called out in red instead, 10250TS34 is a square red STOP. POWER ON, 10250TS80, is the usual pick for the pilot light above them.
9) Do the 10250T legend plates come in a half round shape as well as square?
Yes. Alongside the square and round styles there are half round satin aluminum blanks: 10250TJ89 in jumbo and 10250TM89 in standard. Half round plates sit above or below the operator, which is how you keep a tight vertical column of buttons without the plates crowding each other.
10) I need CLAMP and UNCLAMP labels for a fixture control panel. Are those available?
Both are stocked as square black plates: 10250TS90 for CLAMP and 10250TS91 for UNCLAMP. Related machine-motion legends in the same square black style include IN (10250TS17), CLOSE (10250TS73), DOWN (10250TS74), JOG FOR. (10250TS20) and JOG REV. (10250TS21).
