Spec Sheet
Product Specs
- Amperage Rating:
- 15A
- Application:
- High intensity discharge
- Certifications:
- UL Listed
- Circuit Breaker Type:
- QC
- Connection:
- Cable-in/cable-out
- Interrupt Rating:
- 10 kAIC
- Number Of Poles:
- Single-pole
- Product Height:
- 5 IN
- Product Length Depth:
- 3.8 IN
- Product Weight:
- 2.8 LB
- Product Width:
- .4 IN
- Trip Type:
- Thermal-magnetic
- Voltage Rating:
- 120/240V
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Industrial miniature circuit breaker
- Product Details:

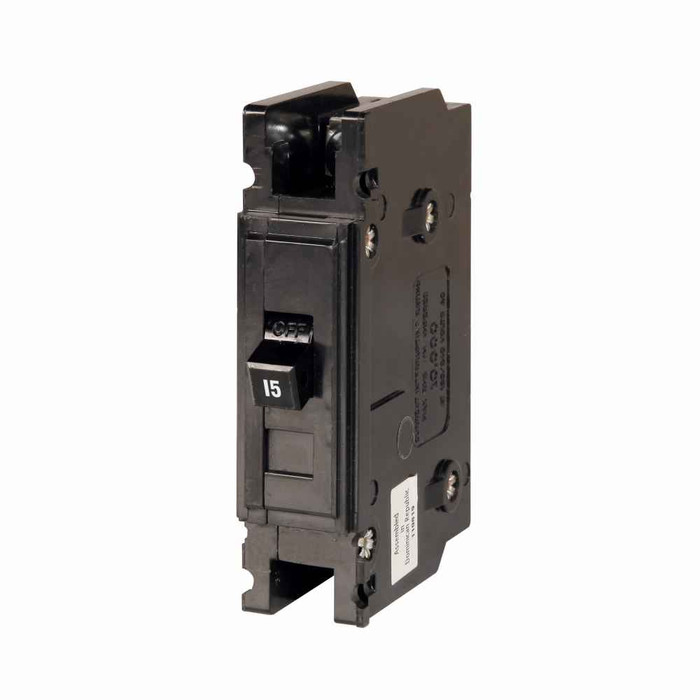

- Industrial miniature circuit breaker
B-LINE QC1015D – Frequently Asked Questions
1) Will the QC1015D breaker fit an Eaton QC load center?
The QC1015D is an Eaton QC-type single-pole breaker, so it is built for panels that take QC breakers. It is rated 120/240 V with a 10 kAIC interrupting rating and uses a cable-in/cable-out connection rather than plug-on bus stabs, so confirm your enclosure is wired for that connection style.
2) Is a 15 amp single-pole breaker enough for an HID lighting circuit?
The QC1015D is rated 15A single-pole and is specified for high intensity discharge lighting, which is why it exists as a distinct catalog item: HID ballasts draw a heavy inrush at strike, and this breaker's thermal-magnetic trip is matched to that application. Size the circuit conductors and fixture load to 15A at 120/240 V.
3) Can I use this 15A breaker on a 240 volt two-wire circuit?
No. The QC1015D is a single-pole device rated 120/240 V, which means it protects one ungrounded conductor at 120 V to ground. A straight 240 V two-wire load needs a two-pole breaker that opens both hot legs.
4) What exact part number should I order to match an existing QC1015D?
Order by manufacturer part number QC1015D, the Eaton QC industrial miniature circuit breaker, single-pole 15A, 120/240 V, cable-in/cable-out. Matching the full part number matters on QC breakers because the amperage and connection style both change the suffix.
5) What does the thermal-magnetic trip on this breaker actually protect against?
Two separate things. The thermal element responds to sustained overloads, tripping after the bimetal heats, while the magnetic element trips near-instantly on a short circuit. That combination is standard for branch-circuit protection and is what lets the QC1015D ride through the momentary inrush of HID lighting without nuisance tripping.
How fast can I get the B-LINE QC1015D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE QC1015D come with a warranty?
Absolutely. The B-LINE QC1015D is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
