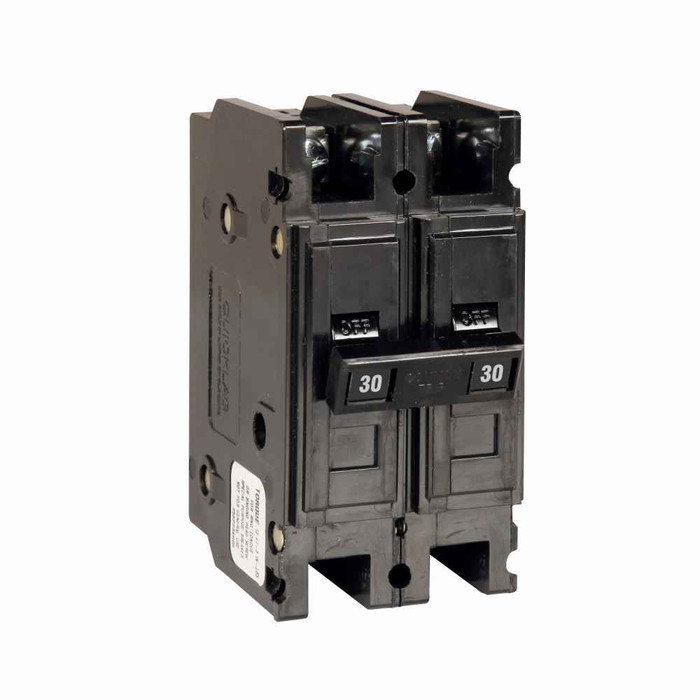

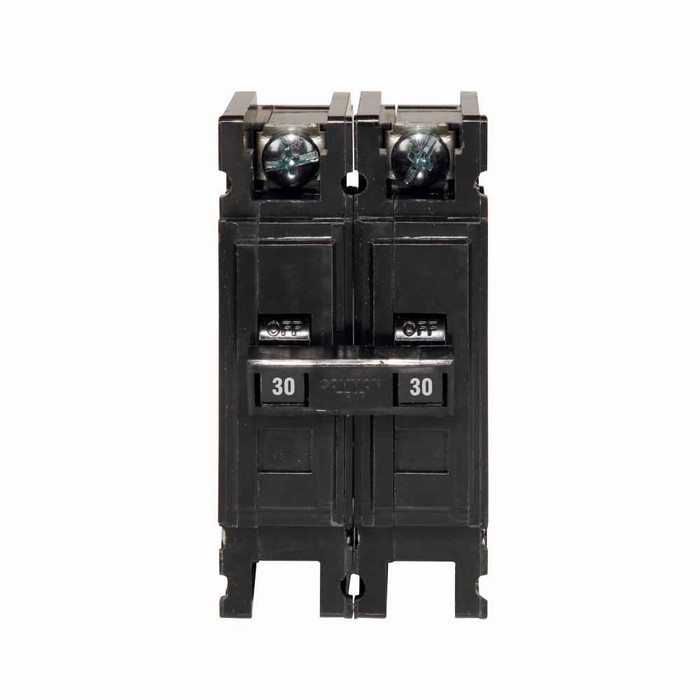

Eaton QC thermal magnetic circuit breaker
Manufacturer Resources
Product Specs
- Amperage Rating:
- 30A
- Application:
- High intensity discharge
- Certifications:
- UL Listed
- Circuit Breaker Type:
- QC
- Connection:
- Cable-in/cable-out
- Interrupt Rating:
- 10 kAIC
- Number Of Poles:
- Two-pole
- Product Height:
- 5 IN
- Product Length Depth:
- 3.8 IN
- Product Weight:
- 3.1 LB
- Product Width:
- .7 IN
- Trip Type:
- Thermal-magnetic
- Voltage Rating:
- 120/240V
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Industrial miniature circuit breaker
- Product Details:
- Industrial miniature circuit breaker
B-LINE QC2030D – Frequently Asked Questions
1) Is the QC2030D a two-pole 30 amp breaker, and what voltage is it rated for?
The QC2030D is a two-pole, 30 amp thermal-magnetic breaker rated 120/240 V. Two poles at 240 V is what you use for a line-to-line load such as an HID lighting circuit or a 240 V piece of equipment, not a standard 120 V lighting or receptacle branch.
2) How does the QC2030D connect - does it plug into a panel bus or land on wire?
It is a cable-in/cable-out breaker, so both the line and load sides terminate on conductors rather than clipping onto a panelboard bus stab. That is how QC-type industrial miniature breakers get used in lighting panels, HID ballast enclosures and pole bases where the breaker sits inline rather than in a loadcenter.
3) Can I use the QC2030D to replace a plug-on breaker in a loadcenter?
No. This is a cable-in/cable-out device - the conductors terminate directly on the breaker, so it has no bus stab to plug onto. If you are replacing a breaker in a panelboard, you need the plug-on version for that panel, not the QC cable-connected type.
4) Is this the right breaker for HID lighting circuits?
Yes, high intensity discharge is the stated application for the QC2030D. Thermal-magnetic tripping handles the inrush of HID ballasts without nuisance tripping on start, while still opening on a sustained overload or a short.
5) Is the Eaton QC2030D UL Listed?
UL Listed, yes. For institutional and government work where the submittal requires a listed overcurrent device, that listing plus the 10 kAIC interrupting rating and the 120/240 V rating are the three values the reviewer usually wants on the cut sheet.
6) What is the exact part number to order for the Eaton QC two-pole 30 amp breaker?
Order by manufacturer part number QC2030D. The number reads out as QC series, 2 pole, 30 amp. It is a single configuration - one part number, no finish or option choices to specify.
