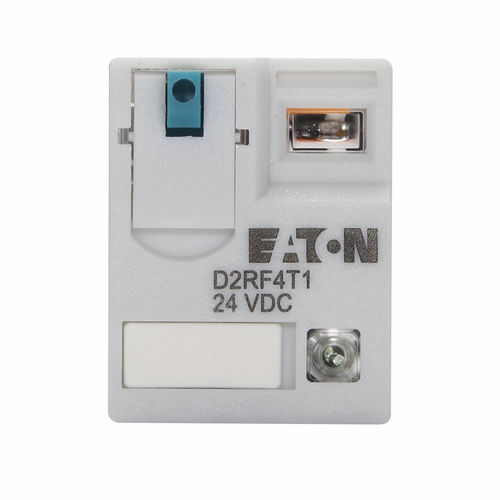

Eaton Ice Cube Relay, 3PDT, 10A, 24VDC Coil
The Eaton Ice Cube Relay is a socket-mount control relay built for reliable switching in industrial and commercial control panels. Configured as a 3PDT (three-pole) relay with a 10A rated operational current and a 24VDC coil, it is rated up to 300V and is CSA certified for dependable performance in demanding automation and control circuits. Its compact 8-pin socket-mount design makes it a straightforward drop-in choice for panel builders and maintenance electricians standardizing on Eaton control components.
Key Features
- 3PDT Configuration: Three-pole design provides multiple isolated switching paths for controlling several circuits from a single relay.
- 10A Rated Operational Current: Delivers dependable switching capacity for resistive loads up to 10A.
- 24VDC Coil: Low-voltage DC coil for compatibility with common control and automation power supplies.
- 300V Maximum Voltage Rating: Rated for use in circuits up to 300V for broad application flexibility.
- Socket Mounting: Designed for socket installation with 8 pins, simplifying replacement and maintenance without hardwiring.
- Compact Footprint: Measures 1.5 in wide, 3 in deep, and 1.5 in high, fitting easily into standard control panel layouts.
- CSA Certified: Independently certified for safety and performance in North American control applications.
Certifications & Compliance
- CSA Certified
Technical Specifications
- Department: Electrical
- Product Type: Coil
- Number Of Poles: Three-pole
- Product Width: 1.5 in
- Rated Operational Current: 10
- Voltage Rating: 300 V
- Mounting: SOCKET
- Resistive Load: 10
- Product Length/Depth: 3 in
- Product Height: 1.5 in
- Voltage - Max: 300
- Number Of Pins: 8
- Certifications: CSA
Typical Applications
- Industrial Control Panels
- Automation and Machine Control Circuits
- Low-Voltage DC Switching Applications
- Panelboard and Control Cabinet Wiring
- Commercial and Industrial Electrical Installations
- Relay Panel Replacement and Retrofits
Why Eaton?
Eaton control relays are built to deliver dependable, code-compliant performance for professional electrical and automation work. With a CSA certified 3PDT design, 10A rated switching, and a compact socket-mount 8-pin footprint, this Ice Cube Relay is engineered for consistent operation in control panels where reliability matters. Choose Eaton for control components that stand up to the demands of industrial and commercial electrical systems.
Manufacturer Resources
Spec Sheet
Product Specs
- Department:
- Electrical
- Product Height:
- 1.5 in
- Product Width:
- 1.5 in
- Product Type:
- Control Relay
- Configuration:
- 3PDT
- Amperage Rating:
- 10A
- Voltage Rating:
- 24VDC
- Listing:
- CSA
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Contactors & Relays
Eaton D3RF3B – Frequently Asked Questions
1) Does the Eaton ice cube relay come in anything other than a 24VDC coil?
Three coil voltages are offered on the Eaton ice cube relay: 24V DC (MPN D5RR3T1), 120V AC (D5RF3A), and 240V AC (D3RF3B). The coil voltage is the one thing you have to specify at order time, so match it to the control transformer or DC supply feeding the panel. The contact side is the same 3PDT, 10A arrangement regardless of which coil you pick.
2) Does this Eaton relay need a socket, or can I wire it directly?
It is a socket-mount relay with 8 pins, so it plugs into a relay socket rather than being hardwired. You need a matching 8-pin socket on the DIN rail or panel subplate, and that socket is ordered separately. The upside is replacement later takes seconds with no rewiring.
3) Can one of these ice cube relays switch three separate circuits?
Yes. The 3PDT arrangement gives three independent changeover poles, each with a normally open and a normally closed contact, so a single coil can switch three isolated circuits at once. Each pole carries up to 10A on a resistive load.
4) What voltage can the contacts on the Eaton 3PDT ice cube relay switch?
Contacts are rated to 300V maximum, with a 10A rated operational current on resistive loads. That covers 120V and 240V control and lighting circuits. Inductive loads such as motor starters and solenoids draw more on make and break, so size below the resistive figure for those.
5) Will this relay fit in a tight control panel layout?
The body measures 1.5 in wide, 3 in deep and 1.5 in high, which is a standard ice cube footprint for panel work. Allow extra depth beyond the 3 in for the socket itself and for the retaining clip to swing clear when you pull the relay.
6) Can I use the 24VDC version with a PLC output?
The 24V DC coil version (D5RR3T1) runs on the same 24VDC supply most PLCs and automation power supplies use, so it is the one to pick when a controller output or a 24V DC control bus is driving the relay. Confirm your PLC output can source the coil current, or drive it through an interposing output module.
