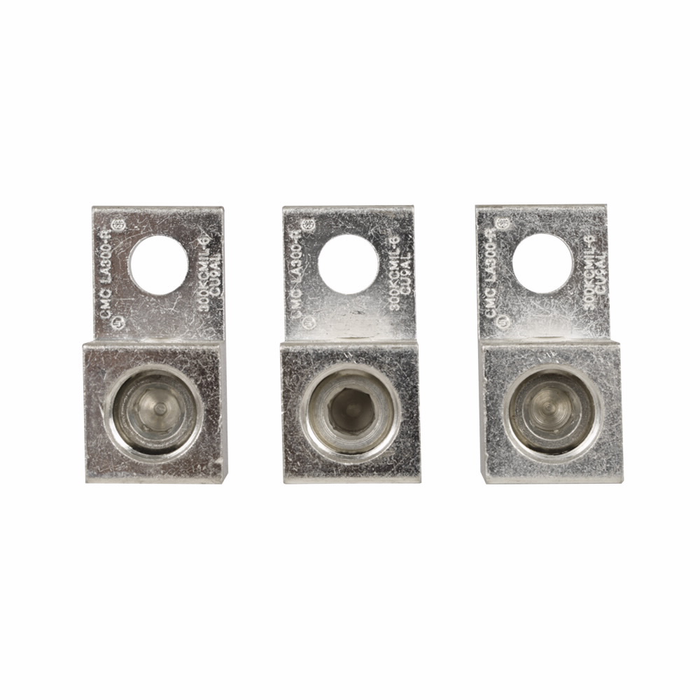

Eaton Rotary Disconnect Line and Load Terminal Lugs, 3-Lug Cu/Al Cable

Eaton Rotary Disconnect Line and Load Terminal Lugs, 3-Lug Cu/Al Cable

(No reviews yet) Write a Review

Model: LK3R9DL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Rotary Disconnect Line and Load Terminal Lugs, 3-Lug Cu/Al Cable

Eaton Rotary Disconnect Line and Load Terminal Lugs provide a dependable line- and load-side wire termination solution for Eaton Series R9, Frame D rotary disconnect switches. This three-pole lug set is rated 200A and accepts Cu/Al cable from #6 to 300 kcmil per phase, giving installers flexibility across a wide range of conductor sizes in industrial and commercial disconnect applications. Each catalog number covers either the line side or the load side; order two sets when both line and load terminations are required.

Key Features

  • Wire Range: Main lug wire size accommodates #6-300 kcmil Cu/Al cable per phase for flexible conductor sizing.
  • Amperage Rating: Rated 200A for use with Eaton Series R9, Frame D rotary disconnect switches.
  • Three-Pole Configuration: Three-pole lug set matches three-phase rotary disconnect switch applications.
  • 3-Lug Design: Special features include a 3-lug configuration engineered for Cu/Al cable termination.
  • Compact Dimensions: Measures 1.12 in wide x 1 in deep x 1.5 in high for a low-profile fit within the disconnect enclosure.
  • Line and Load Terminal Lugs: Each catalog number is for the line side or the load side only; order two sets when both line and load terminations are needed.
  • Series R9, Frame D: Purpose-built for Eaton R9 Series, Frame D rotary disconnect switches.

Technical Specifications

  • Product Type: Disconnect Switch
  • Series: R9
  • Frame size: D
  • Number Of Poles: Three-pole
  • Amperage Rating: 200A
  • Main lug wire size: #6-300 kcmil per phase
  • Product Width: 1.12 in
  • Product Length/Depth: 1 in
  • Product Height: 1.5 in
  • Type: Line and load terminal lugs
  • Department: Electrical

Typical Applications

  • Industrial and Commercial Disconnect Switch Wiring
  • Motor Control and Protection Panels
  • Panelboard and Switchgear Terminations
  • Rotary Disconnect Switch Retrofits and Upgrades
  • Renovation and New Construction Electrical Installations

Why Eaton?

Eaton Rotary Disconnect Line and Load Terminal Lugs are backed by Eaton Selling Policy 25-000, with a warranty of one year from installation or eighteen months from shipment, whichever occurs first. Engineered specifically for Eaton Series R9, Frame D rotary disconnect switches, these terminal lugs deliver dependable, code-compliant Cu/Al cable termination rated 200A for demanding industrial and commercial electrical systems. Choose Eaton for consistent quality and engineering support across your rotary disconnect switch installations.

Manufacturer Resources

Product Specs

Number Of Poles:
Three-pole
Product Width:
1.12 in
Amperage Rating:
200A
Product Length/Depth:
1 in
Special features:
3 lugs, Cu/Al cable
Main lug wire size:
#6-300 kcmil per phase
Product Height:
1.5 in
Product Type:
Terminal Lugs
Product Category:
Line and load terminal lugs
Series:
R9
Frame size:
D
Certifications:
Contact Manufacturer
Department:
Electrical
Product Group:
Wiring Devices
