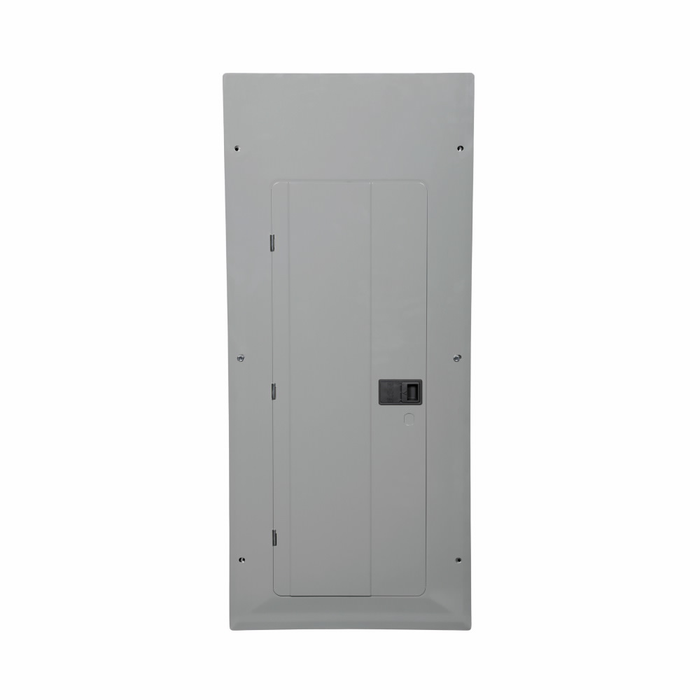

Eaton BR Series Main Lug Load Center

Eaton BR Series Main Lug Load Center

(No reviews yet) Write a Review

Model: BR816L125SP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$108.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton BR Series Main Lug Load Center

The Eaton BR Series Main Lug Load Center is engineered for reliable power distribution in commercial, industrial, and general electrical service applications. This main lug load center platform is available in two configurations to match project requirements: a 125A single-phase model housed in a NEMA 1 enclosure with 16 circuits for indoor distribution, and a 150A three-phase, four-wire model housed in a NEMA 3R enclosure with 42 circuits across 24 spaces for outdoor and wet-location service. Built to Eaton's widely specified BR Series design, this main lug load center delivers the circuit capacity, enclosure protection, and phase configuration needed for panelboard replacement, service upgrades, and new construction projects requiring dependable distribution equipment.

Key Features

  • Amperage Range: Available in 125A and 150A main lug configurations to match branch circuit and feeder distribution needs.
  • Circuit Capacity: 16 circuits in the 125A single-phase configuration, or 42 circuits across 24 spaces in the 150A three-phase configuration, providing room for growing load requirements.
  • Phase Configuration: Offered in single-phase (125A) and three-phase, four-wire (150A) versions for compatibility with a range of commercial and industrial distribution systems.
  • Enclosure Options: NEMA 1 enclosure for indoor installations in the 125A configuration, and NEMA 3R enclosure for outdoor and wet-location installations in the 150A configuration.
  • Main Lug Design: Main lug configuration provides straightforward branch circuit distribution for feeder-fed applications without an integral main breaker.
  • Bus Material: Aluminum bus construction for dependable current-carrying capacity.
  • BR Series Construction: Part of Eaton's widely specified BR Series main lug load center line, trusted for dependable service equipment applications.

Certifications & Compliance

  • NEMA 1 Rated Enclosure (125A Configuration)
  • NEMA 3R Rated Enclosure (150A Configuration)
  • Suitable for Outdoor and Wet-Location Installations (150A NEMA 3R Configuration)

Technical Specifications

  • Series: BR
  • Voltage Rating: 120/208/240V
  • Configuration: Three-Phase Four-Wire
  • Bus Material: Aluminum

Typical Applications

  • Commercial and Industrial Electrical Service Panels
  • Indoor and Outdoor Power Distribution Equipment
  • Single-Phase and Three-Phase Distribution Systems
  • New Construction and Panel Replacement Projects
  • Main Lug Service Entrance Applications
  • Renovation and Panelboard Upgrade Projects

Why Eaton?

Eaton's BR Series load centers are engineered to deliver dependable, code-compliant power distribution across a range of amperage, phase, and enclosure configurations. Whether specified as a 125A single-phase, NEMA 1 model for indoor service or a 150A three-phase, four-wire, NEMA 3R model built for outdoor and wet-location conditions, the BR Series main lug load center provides the circuit distribution reliability that electrical professionals rely on for commercial and industrial projects. As part of a widely specified product line, the BR Series is manufactured to meet the rigorous demands of main lug service equipment, helping ensure long-term, code-compliant performance in both indoor and outdoor applications.

Manufacturer Resources

Product Specs

Product Type:
Load Center
Series:
BR
Amperage Rating:
150A
Voltage Rating:
120/208/240V
Standards:
NEMA 3R
Configuration:
Three-Phase Four-Wire
Department:
Electrical
Product Subgroup:
Panelboards & Load Centers
list_batch:
EAT-20260922
Bus Material:
Aluminum
Product Material:
Aluminum
Product Group:
Power Distribution

Eaton BR816L125SP – Frequently Asked Questions

1) What is the difference between the two Eaton BR main lug load centers, 3BR2442LC150R and BR816L125SP?
Two very different panels. The BR816L125SP is 125A single-phase in a NEMA 1 enclosure with 16 circuits, meant for indoor distribution. The 3BR2442LC150R is 150A three-phase four-wire in a NEMA 3R enclosure, 42 circuits across 24 spaces, rated for outdoor and wet-location service. Pick by phase first, then enclosure: a single-phase service cannot use the three-phase panel.
2) Can an Eaton BR main lug load center be mounted outdoors?
Only the 150A three-phase version, model 3BR2442LC150R, which is built in a NEMA 3R enclosure suitable for outdoor and wet-location installation. The 125A single-phase BR816L125SP is NEMA 1, indoor dry locations only. Putting the NEMA 1 panel outside, even under an overhang, is not what it is rated for.
3) Does a main lug load center need a separate upstream breaker?
Yes. Main lug means there is no integral main breaker in the panel, so the feeder has to be protected by overcurrent device ahead of it. The Eaton BR main lug load center is built for feeder-fed branch circuit distribution, so plan on upstream protection sized to the panel, 125A or 150A depending on which version you order.
4) What voltage is the Eaton BR series main lug load center rated for?
120/208/240V. That covers 120/240V single-phase for the 125A NEMA 1 panel and 120/208V three-phase four-wire for the 150A NEMA 3R panel. If your service is 277/480V, this is not the panel for it.
5) Is the bus in the Eaton BR load center copper or aluminum?
Aluminum bus. If your spec or inspector calls for a copper bus panelboard, this will not meet it. Aluminum bus is standard on the BR line and is what most residential and light commercial specs accept.
6) How many breakers will fit in the 150A three-phase BR panel?
The 3BR2442LC150R has 24 spaces and accepts up to 42 circuits, so full-size breakers fill the 24 spaces and tandem-capable positions get you to the 42-circuit count. Useful headroom on a panel replacement where the load is expected to grow.
7) I'm replacing a 16-circuit indoor subpanel in an apartment building. Which BR load center matches?
The BR816L125SP, 125A single-phase in a NEMA 1 enclosure with 16 circuits, is the indoor subpanel configuration. Being main lug, it lands on a feeder from the main service with the overcurrent protection upstream, which is how most apartment subpanels are fed.
