Eaton Rotary Disconnect Shaft Extension, SH0/SH00 Selector Handle, 16-100A

Eaton Rotary Disconnect Shaft Extension, SH0/SH00 Selector Handle, 16-100A

(No reviews yet) Write a Review

Model: SF200SH5X5

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Rotary Disconnect Shaft Extension, SH0/SH00 Selector Handle, 16-100A

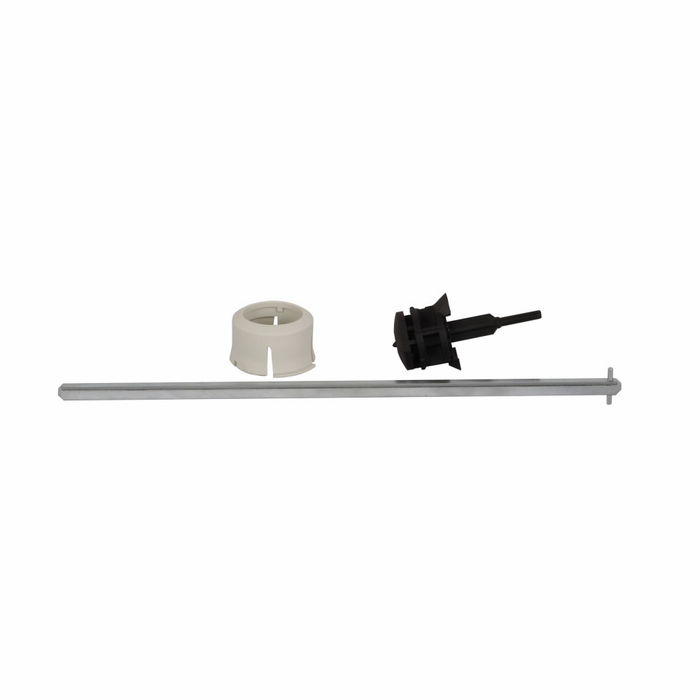

The Eaton Rotary Disconnect Shaft Extension is engineered for SH0 and SH00 selector handles, extending the operating shaft to 200 mm (7.87 in) for rotary disconnect switches rated 16-100A. Compatible with Eaton's R5/R9 rotary disconnect switch series, this shaft extension enables reliable door-mounted or remote operation of the disconnect while preserving a solid mechanical linkage between the handle and the switch mechanism.

Key Features

  • Extended Reach: 200 mm (7.87 in) shaft extension length supports flexible mounting distances between the selector handle and the disconnect switch.
  • Compact Profile: .19 in product width and .19 in product height with a 6 in product length/depth keep the shaft assembly compact for standard enclosure cutouts.
  • Amperage Compatibility: Rated for use with 16-100A rotary disconnect switches, matching common Eaton disconnect switch ampacities.
  • Handle Compatibility: Purpose-built for SH0/SH00 selector handles, ensuring a secure fit and correct operating travel.
  • Series Compatibility: Fits Eaton R5/R9 rotary disconnect switch series for straightforward replacement or new-build installations.
  • Product Type: Shaft extension accessory for selector handle assemblies, simplifying handle-to-switch coupling.

Technical Specifications

  • Product Width: .19 in
  • Product Length/Depth: 6 in
  • Product Height: .19 in
  • Size: 200 mm (7.87 in)
  • Type: Shaft extension
  • Product Category: Shaft extensions for selector handles
  • Product Type: Disconnect Switch
  • Department: Electrical

Typical Applications

  • Rotary Disconnect Switch Selector Handle Assemblies
  • Panelboard and Enclosure Door-Mounted Disconnect Operation
  • Industrial Motor Control and Protection Panels
  • Remote Handle Operation for Safety Switches
  • Replacement and Retrofit of Eaton R5/R9 Disconnect Switch Systems

Why Eaton?

Eaton engineers this shaft extension to maintain precise, reliable mechanical linkage between SH0/SH00 selector handles and R5/R9 rotary disconnect switches rated 16-100A. Backed by Eaton's Selling Policy 25-000 warranty, it delivers the dependable fit and function professionals expect for code-compliant motor control and disconnect switch installations.

Manufacturer Resources

Product Specs

Product Width:
.19 in
Certifications:
Contact Manufacturer
Product Size:
200 mm (7.87 in)
Product Length/Depth:
6 in
Product Height:
.19 in
Product Type:
Shaft Extension
Product Category:
Shaft extensions for selector handles
Department:
Electrical
Amperage Rating:
16-100A
Configuration:
SH0/SH00 Handle
Series:
R5/R9
Product Group:
Power Distribution
Product Subgroup:
Safety Switches & Disconnects
Product Weight:
0.1 lb
Product Length:
6 in

Eaton SF200SH5X5 – Frequently Asked Questions

1) How far can the door-mounted handle sit from the disconnect switch with this extension?
The shaft is 200 mm (7.87 in), so it spans that distance between an SH0/SH00 selector handle on the enclosure door and the R5/R9 disconnect body. Measure your enclosure depth plus the switch mounting height before ordering; if the gap is longer than 200 mm you need a longer shaft.
2) What is the difference between the SF200SH5X5 and SF200SH5X5H shaft extensions?
Two versions are sold: SF200SH5X5 is the 16-100 ampere option, and SF200SH5X5H is the 30 ampere option. Match the part to the amperage of the R5/R9 disconnect you are operating rather than to the handle.
3) Does buying this shaft extension get me the handle too?
No. This is the shaft extension only, the mechanical link between handle and switch. You still need the SH0 or SH00 selector handle and the R5/R9 rotary disconnect switch itself to complete a door-operated assembly.
4) Is the Square D TeSys GS shaft extension a substitute for the Eaton SF200SH5X5 on an R5/R9 rotary disconnect?
No. The Eaton SF200SH5X shaft extension is built for SH0/SH00 selector handles on Eaton R5/R9 series rotary disconnect switches rated 16-100A, and the coupling geometry is specific to that handle and switch pairing. The Square D GS2AE shaft extension is a TeSys GS series part intended for GS2 fuse switch-disconnectors, so it belongs to a different switch platform. Match the shaft extension to the switch series and handle already in the enclosure rather than crossing brands.
5) What size cutout or clearance does the shaft itself need inside the enclosure?
The shaft section is slim, .19 in wide by .19 in high, with a 6 in product length/depth listed. That square profile is what keys into the handle and switch drive, so it passes through a standard selector handle door cutout without extra clearance work.
6) Can I use a Square D shaft extension on an Eaton R5/R9 disconnect?
No. Shaft extensions are keyed to their own switch family. The Square D TeSys GS shaft extension is for GS2 fuse switch-disconnectors and the TeSys VLS shaft extension is for the VLS line; neither is an Eaton R5/R9 part. Stay within the brand family for the handle, shaft, and switch.
7) I am replacing a broken handle linkage in an existing Eaton motor control panel. Is this the right retrofit part?
If the panel uses an R5/R9 rotary disconnect with an SH0 or SH00 selector handle and the existing shaft run is 200 mm, this is a direct replacement for that linkage. Confirm the amperage first: order SF200SH5X5 for 16-100A gear, SF200SH5X5H for a 30A switch.
8) The handle-to-switch distance in my enclosure is short. Is the Eaton 200 mm extension still the right choice or should I look at another part?
The Eaton SF200SH5X provides a 200 mm (7.87 in) shaft extension length for SH0/SH00 selector handles on R5/R9 rotary disconnects, so it suits door-mounted or remote operation where the handle stands off from the switch mechanism. If the switch platform is Square D rather than Eaton, the corresponding parts are the GS2AE for TeSys GS GS2 fuse switch-disconnectors and the VLSS3005 for TeSys VLS disconnects; confirm the required shaft length against the actual handle-to-switch dimension in your enclosure before ordering any of them.
How fast can I get the Eaton SF200SH5X5 delivered?
