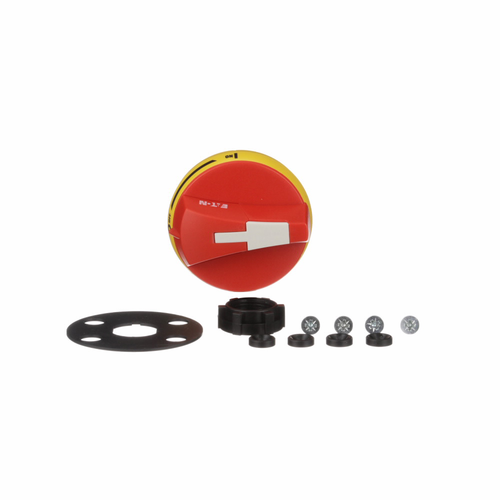

Eaton Front and Right External Handle for R4/R5/R9 Series Rotary Disconnect Switches
Model: EAT-P199
Eaton
Eaton Red External Selector Handle for R9 Series Disconnect Switches
Model: EAT-P439341
Eaton
Eaton Auxiliary Contact for Rotary Disconnect Switch, R9 Series, 600V
Model: EAT-P453
Eaton
Eaton R9 Series Rotary Disconnect Switch, 200A, Three-Pole, Non-Fusible
Model: R9D3200U-P
Eaton

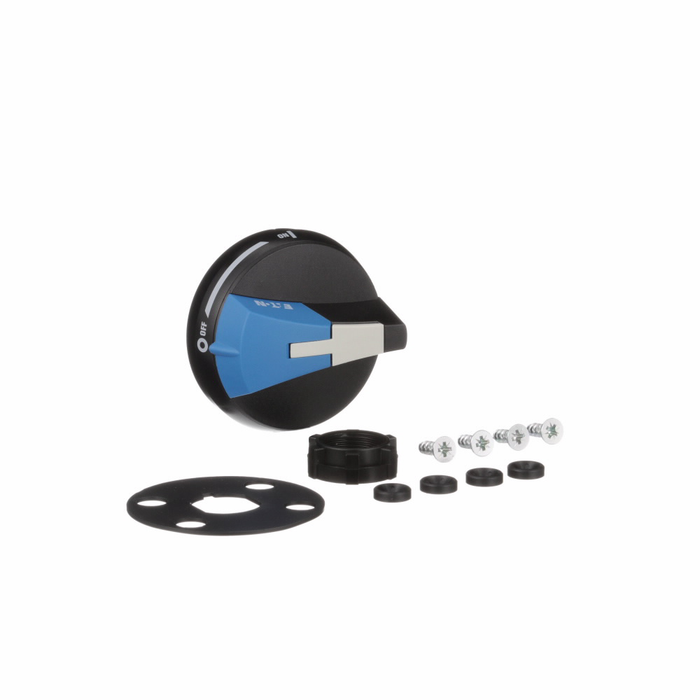

Eaton External Selector Handle for Rotary Disconnect Switches, Black
The Eaton External Selector Handle is an external selector handle engineered for rotary disconnect switches rated 16-100A. Part of Eaton's SHB0 Series, this black selector handle mounts externally to the enclosure to deliver smooth, reliable on/off actuation while preserving the enclosure's environmental seal against dust, dirt, and water ingress. Built for professional electrical installations, this handle gives panel builders and maintenance electricians a durable, code-aware way to operate rotary disconnects from outside a sealed enclosure without compromising the environmental rating of the assembly.
Key Features
- Amperage Rating: Sized for rotary disconnect switches rated 16-100A, matching common motor control and feeder disconnect applications.
- External Selector Design: Selector handle mounts externally to the enclosure for reliable actuation across a range of panel layouts.
- Enclosure Compatibility: Engineered to maintain the enclosure's sealed protection against water, dust, and corrosion in indoor and outdoor installations.
- Handle Color: Black finish provides consistent panel aesthetics and high visibility for quick identification of disconnect status.
- Series: Part of the SHB0 Series of Eaton external selector handles.
- Product Height: 2 in, sized for standard external handle mounting hardware and enclosure cutouts.
- External Operation: Selector handle design lets operators actuate the internal rotary disconnect mechanism without opening the enclosure door, supporting lockout/tagout procedures.
Technical Specifications
- Product Type: Disconnect Switch
- Department: Electrical
Typical Applications
- Rotary Disconnect Switch Assemblies
- Industrial Machinery Control Panels
- Motor Control Centers and Feeder Disconnects
- Outdoor and Wet-Location Electrical Enclosures
- Panelboard and Load Center Retrofits
- Renovation and New Construction Electrical Projects
Why Eaton?
Eaton engineers the SHB0 Series external selector handle to deliver dependable, code-compliant disconnect operation in demanding electrical environments. The durable black finish and flexible external mounting support long-term performance across industrial, commercial, and outdoor installations where enclosure integrity and reliable manual operation both matter. Choose Eaton for trusted rotary disconnect switch accessories built for professional electrical work and long-term serviceability.
Variant Specifications
| Enclosure | Type | SKU |
|---|---|---|
| NEMA 12 | Front And Right External Handle | SHB00N12 |
| NEMA 4/4X | Standard | SHB00N4X |
| NEMA 12 | Front And Right External Selector Handle | SHB0N12 |
Manufacturer Resources
Product Specs
- Special features:
- Front and right external handle
- Department:
- Electrical
- Product Type:
- External Handle
- Certifications:
- Contact Manufacturer
- Product Color:
- Black
- Handle color:
- Black
- Amperage Rating:
- 16-100A
- Product Category:
- External handles
- Product Group:
- Wiring Devices
