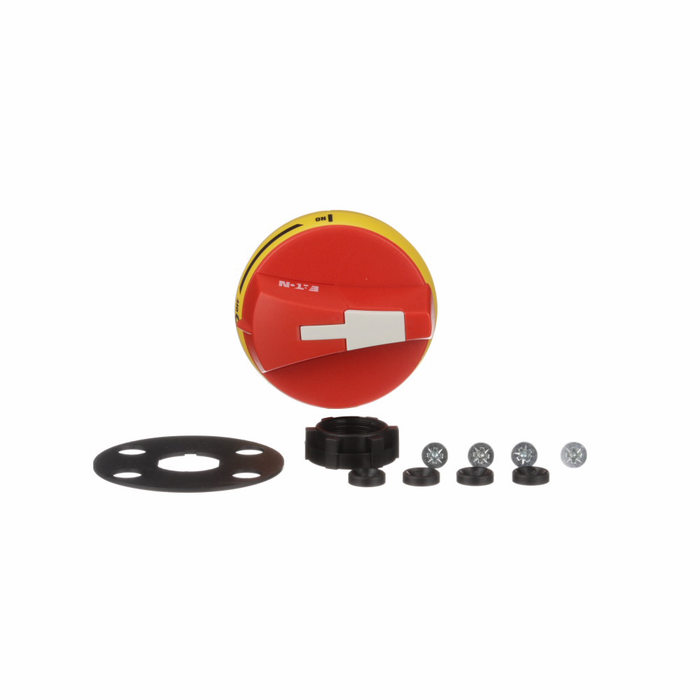

Eaton Front and Right External Handle for R4/R5/R9 Series Rotary Disconnect Switches

Eaton Front and Right External Handle for R4/R5/R9 Series Rotary Disconnect Switches

The Eaton Front and Right External Handle is engineered for use with Eaton R4/R5/R9 series rotary disconnect switches, providing reliable external actuation from the front or right side of the switch enclosure. Compatible with Handle type SH00, this compact external handle measures 1.1 in wide, 1.57 in deep, and 1.06 in high, making it a precise fit for panelboard and disconnect switch installations. Classified under Eaton's External handles product category, it is built to support dependable, repeatable switch operation across commercial and industrial electrical systems where rotary disconnect switches are installed.

Key Features

• Compact Dimensions: Measures 1.1 in (width) x 1.57 in (length/depth) x 1.06 in (height), sized for a precise fit within enclosure cutouts and disconnect switch housings.
• Front and Right Configuration: Engineered as a front and right external handle, offering flexible mounting orientation on the disconnect switch enclosure.
• Series Compatibility: Purpose-built for use with Eaton R4/R5/R9 series rotary disconnect switches, ensuring proper fit and function.
• Handle Type Match: Used with Handle type SH00 to ensure correct pairing with the internal switch mechanism and shaft.
• Special Feature: Front and right external handle design supports consistent, code-compliant switch actuation from outside the enclosure.
• Application-Specific Design: Purpose-matched to Eaton's R4/R5/R9 rotary disconnect switch platform rather than a universal, one-size-fits-all handle.

Technical Specifications

• Product Width: 1.1 in
• Product Length/Depth: 1.57 in
• Product Height: 1.06 in
• Series: R4/R5/R9
• Used With: Handle type SH00
• Type: Front and right external handle

Typical Applications

• Rotary Disconnect Switch Operation
• Panelboard and Enclosure Front-Panel Control
• Industrial and Commercial Electrical Installations
• Motor Control and Protection Systems
• Retrofit and Replacement of Existing External Handles
• New Construction Disconnect Switch Assemblies

Why Eaton?

Eaton engineers its external handles for precise compatibility with specific rotary disconnect switch series rather than as generic, universal parts. The documented R4/R5/R9 series compatibility and Handle type SH00 pairing mean this front and right external handle is matched to work reliably with its intended disconnect switch, supporting consistent, code-compliant performance across demanding commercial and industrial electrical environments where dependable switch actuation is essential.
