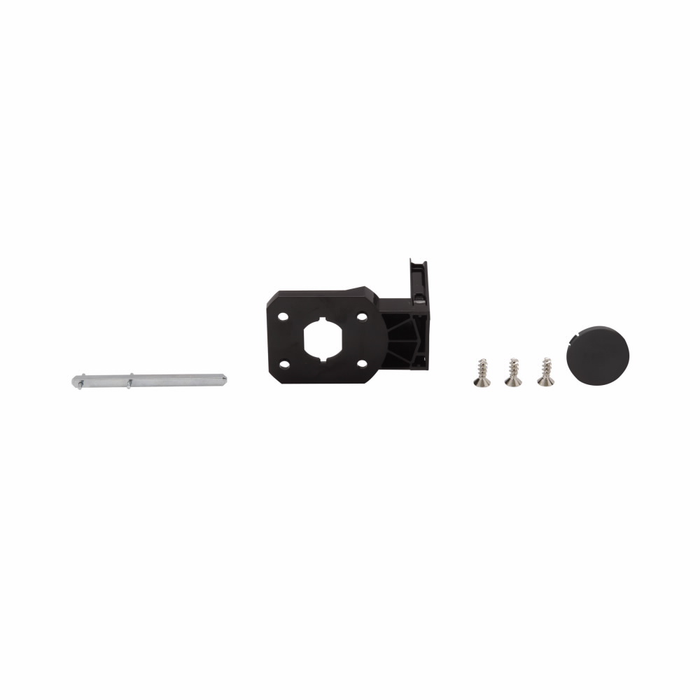

Eaton Door Mounting Kit for R5 Series Rotary Disconnect Switches

Eaton Door Mounting Kit for R5 Series Rotary Disconnect Switches

(No reviews yet) Write a Review

Model: DMK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Door Mounting Kit for R5 Series Rotary Disconnect Switches

The Eaton Door Mounting Kit is designed for R5 Series rotary disconnect switches rated 16-100A, giving panel builders and electricians a reliable way to mount a rotary disconnect operator directly to an enclosure door. This door mounting kit includes the shaft and accessory cap needed for a complete installation, with a compact footprint of 3.6 in width, 4.1 in length/depth, and 1.7 in height. Built to Eaton's R5 Series specifications, it is intended for professional electrical panel and switchgear assembly work.

Key Features

  • Disconnect Compatibility: Engineered for use with Eaton R5 Series rotary disconnect switches rated 16-100A.
  • Complete Kit: Includes shaft and accessory cap for a full door-mount installation without sourcing additional parts.
  • Door Mounting Method: Purpose-built for mounting the disconnect operator on an enclosure or panel door.
  • Compact Dimensions: Measures 3.6 in (width) x 4.1 in (length/depth) x 1.7 in (height) for efficient use of panel door space.
  • R5 Series Design: Matched to the Eaton R5 Series product family for consistent fit and function.
  • Special Feature: Classified as a kit, bundling the components required for door-mounted disconnect operation.

Technical Specifications

  • Series: R5
  • Special features: Kit
  • Mounting method: Door
  • Product Category: Door mounting kit
  • Product Width: 3.6 in
  • Product Length/Depth: 4.1 in
  • Product Height: 1.7 in
  • Catalog Notes: Includes shaft and accessory cap.

Typical Applications

  • Panelboard and Switchgear Door Assembly
  • Rotary Disconnect Switch Installations, 16-100A
  • Commercial and Industrial Electrical Enclosures
  • Motor Control and Protection Panels
  • New Panel Construction and Retrofit Projects

Why Eaton?

Eaton engineers the R5 Series disconnect switch line and its accessories, including this door mounting kit, to work together as a matched system for dependable panel door operation. With the shaft and accessory cap included, the kit is designed to simplify installation while supporting the code-compliant performance electrical professionals expect from Eaton equipment.

Manufacturer Resources

Product Specs

Product Width:
3.6 in
Catalog Notes:
Includes shaft and accessory cap.
Mounting Method:
Door
Product Category:
Door mounting kit
Series:
R5
Product Length/Depth:
4.1 in
Special Features:
Kit
Product Type:
Door Mounting Kit
Product Height:
1.7 in
Certifications:
Contact Manufacturer
Department:
Electrical
Amperage Rating:
16-100A
Configuration:
Door Mounted
Product Group:
Power Distribution
Product Subgroup:
Safety Switches & Disconnects
Product Weight:
0.15 lb
Product Length:
4.1 in

Eaton DMK – Frequently Asked Questions

1) Which Eaton rotary disconnect switches does the DMK door mounting kit work with?
The Eaton DMK door mounting kit is built for R5 Series rotary disconnect switches in the 16-100A range. It is matched to that series, so it is the right kit when the disconnect body is an R5 sized within that amperage band and you want the operator handle on the enclosure door rather than mounted directly on the switch.
2) Does the Eaton DMK kit include the shaft, or do I have to order that separately?
The shaft and the accessory cap both come in the DMK kit. That is the full set of parts for the door-mount conversion, so a panel builder is not chasing a separate shaft order. The disconnect switch itself and the handle are not part of the kit.
3) Can I use the Eaton DMK kit on an R5 disconnect rated above 100 amps?
No. The DMK is specified for R5 rotary disconnects rated 16-100A. Above that rating the switch body and shaft interface change, so you need the door mount accessory matched to the larger frame rather than this one.
4) How much room do I need on the panel door for the Eaton R5 door mounting kit?
Plan for a footprint of 3.6 x 4.1 x 1.7 inches (width, length/depth, height). The depth figure is the one that matters most on a shallow enclosure, since the shaft assembly projects inward toward the switch body behind the door.
5) What is the difference between door mounting an R5 disconnect and mounting it directly on the switch?
Door mounting puts the operator handle on the outside face of the enclosure, so the panel can be opened and closed and interlocked without touching the switch body, which stays mounted inside on the backplate. The DMK kit is what connects the two, using the supplied shaft to bridge the distance from the door to the switch. Direct mounting skips the shaft but puts the handle inside the enclosure, which is not workable when an operator needs to kill power without opening the door.
6) Is the Eaton DMK a single part number or are there options to specify?
One part number, DMK. There is no handing, color, or shaft length to select, so the ordering decision is simply confirming your disconnect is an R5 in the 16-100A range.
How fast can I get the Eaton DMK delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton DMK come with a warranty?
Absolutely. The Eaton DMK is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton DMK?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
