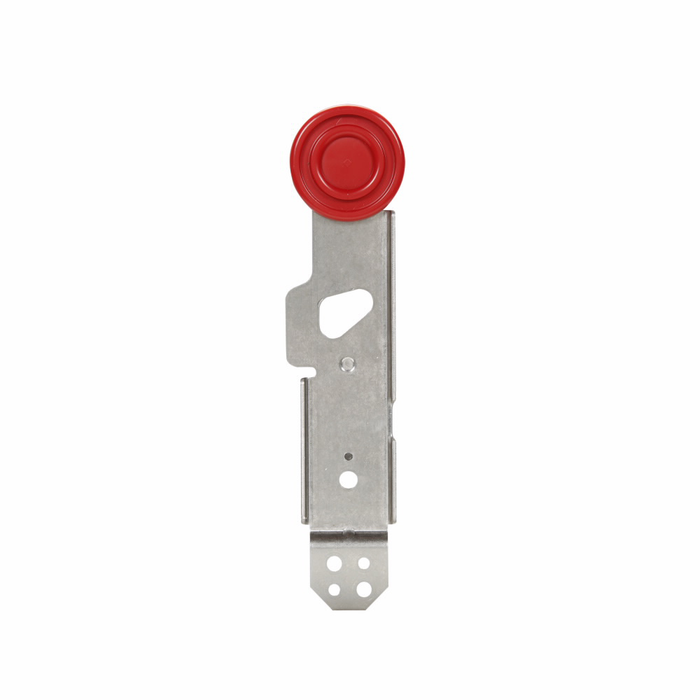

Eaton Safety Switch Operating Handle, NEMA 1/3R/12

Eaton Safety Switch Operating Handle, NEMA 1/3R/12

The Eaton Safety Switch Operating Handle is a replacement operating handle engineered for Eaton safety switches, providing reliable manual actuation for disconnect operations. Rated NEMA 1, NEMA 3R, and NEMA 12 with a 240-600 V voltage rating, this handle is designed for use with 200-800A, two-, three-, four-, and six-pole, 250/600V fusible and non-fusible safety switches, including both general duty and heavy duty switch types. It is UL Listed, giving electrical professionals a code-compliant option for maintaining and servicing Eaton disconnect switches in commercial and industrial settings.

Key Features

• Voltage Rating: 240-600 V for compatibility across a range of Eaton safety switch installations.
• Broad Switch Compatibility: Designed for use with 200-800A, two-, three-, four-, and six-pole, 250/600V fusible and non-fusible safety switches.
• NEMA Rated Enclosure Compatibility: NEMA 1, NEMA 3R, and NEMA 12 ratings support indoor, outdoor, and washdown/dust-tight enclosure applications.
• Switch Type Compatibility: Works with general duty and heavy duty Eaton safety switches.
• Compact Footprint: Operating handle measures 1 in width, 1 in length/depth, and 1 in height.
• UL Listed: Certified for safe, code-compliant use in professional electrical installations.

Certifications & Compliance

• UL Listed
• NEMA 1 Rated
• NEMA 3R Rated
• NEMA 12 Rated

Technical Specifications

• Product Category: Operating Handle
• Used With: 200-800A, two-, three-, four-, and six-pole, 250/600V fusible and non-fusible safety switches, NEMA 1, 3R, 12, 4
• Voltage Rating: 240-600 V
• Switch Type: General duty, heavy duty
• NEMA Rating: NEMA 1, NEMA 3R, NEMA 12
• Certifications: UL Listed
• Product Width: 1 in
• Product Length/Depth: 1 in
• Product Height: 1 in
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Typical Applications

• Safety Switch Maintenance and Replacement
• Commercial and Industrial Disconnect Switch Operation
• Panelboard and Distribution Equipment Servicing
• Indoor and Outdoor/Wet-Location Electrical Installations
• General Duty and Heavy Duty Safety Switch Applications

Why Eaton?

Eaton is a trusted name in electrical distribution equipment, and this UL Listed operating handle is built to Eaton Selling Policy 25-000 warranty standards for dependable, code-compliant performance. With broad compatibility across 200-800A general duty and heavy duty safety switches and NEMA 1, 3R, and 12 rated applications, this handle helps ensure safe, reliable disconnect operation for professional electrical work.
