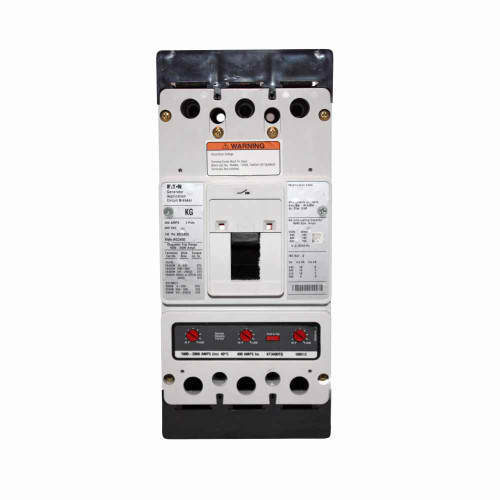

Eaton KG3350WA12S43D05X02 Series C complete EG molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed, 60

Eaton KG3350WA12S43D05X02 Series C complete EG molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed, 60

(No reviews yet) Write a Review

Model: KG3350WA12S43D05X02
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,658.17
$5,608.17
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton KG3350WA12S43Z04 Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse

Eaton KG3350WA12S43Z04 Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse

Model: EAT-KG3350WA12S43Z04

Eaton Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc...

Eaton

$5,851.96
$5,801.96
Eaton KG3300WS43 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed

Eaton KG3300WS43 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed

Model: EAT-KG3300WS43

Eaton Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite...

Eaton

$4,876.33
$4,826.33
Eaton KG3350S45 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same side w/ right pigtail, Reverse feed, 60 Hz

Eaton KG3350S45 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same side w/ right pigtail, Reverse feed, 60 Hz

Model: EAT-KG3350S45

Eaton Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same...

Eaton

$4,868.44
$4,818.44
Eaton Series C complete EG molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 500-1000A, Three-pole, 350A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 12-24 Vac/dc opposite side w/ left pigtail, Reverse feed, 60 Hz

Manufacturer Resources

Product Specs

Amperage Rating:
350 A
Auxiliary Switch:
2A-2B same side with right pigtail
Certifications:
UL Listed file E7819
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
KG
Class:
Engine generator
Compliances:
MIL-DTL-17361
Frame:
K
Frequency Rating:
60 Hz
Functions:
Reverse
Generator Rating:
126 kVA/101 kW at 240 Vac, 253 kVA/202 kW at 480 Vac, 316 kVA/253 kW at 600 Vac
Interrupt Rating:
14 kAIC at 480 Vac
Mounting Hardware:
Metric
Number Of Poles:
Three-pole
Prod Load:
TA350K
Product Height:
6.5 in
Product Length Depth:
12.5 in
Product Weight:
11 lb
Product Width:
7 in
Shunt Trip:
12-24V left pigtail opposite
Terminals:
Load side, line side end cap
Trip Rating:
500-1000 A
Trip Type:
Thermal-magnetic
Type:
Engine generator
Voltage Rating:
600 Vac
!
