Eaton FG3200S01 Series C compl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,568.31
$3,518.31

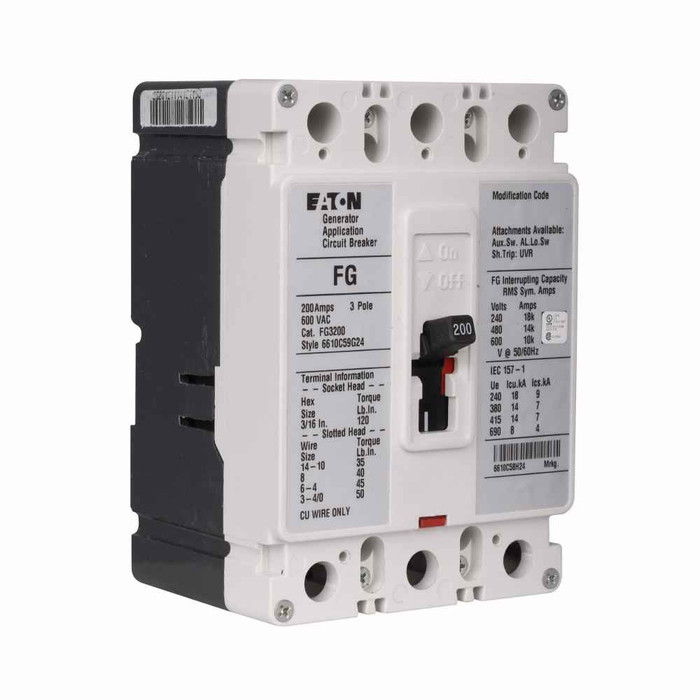

Eaton FG3200S01 Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 200A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same side w/ left pigtail, Reverse, 60 Hz

Eaton FG3200S01 Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 200A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same side w/ left pigtail, Reverse, 60 Hz

(No reviews yet) Write a Review

Model: FG3200S01
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,568.31
$3,518.31
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 200A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc same side w/ left pigtail, Reverse, 60 Hz

Manufacturer Resources

Product Specs

Amperage Rating:
200 A
Certifications:
UL 489
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
FG
Class:
Engine generator
Frame:
F
Frequency Rating:
60 Hz
Functions:
Reverse
Generator Rating:
72 kVA/58 kW at 240 Vac, 144 kVA/116 kW at 480 Vac, 181 kVA/144 kW at 600 Vac
Interrupt Rating:
18 kAIC at 240 Vac
Number Of Poles:
Three-pole
Pickup:
Fixed
Product Height:
5 in
Product Length Depth:
7 in
Product Weight:
4 lb
Product Width:
5 in
Shunt Trip:
12-24 Vac/dc same side with left pigtail shunt
Terminals:
Line and load
Trip Type:
Fixed thermal, fixed magnetic
Voltage Rating:
600 Vac
Product Group:
Electrical
!
