Eaton KG3400S42 Series C compl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,876.33
$4,826.33

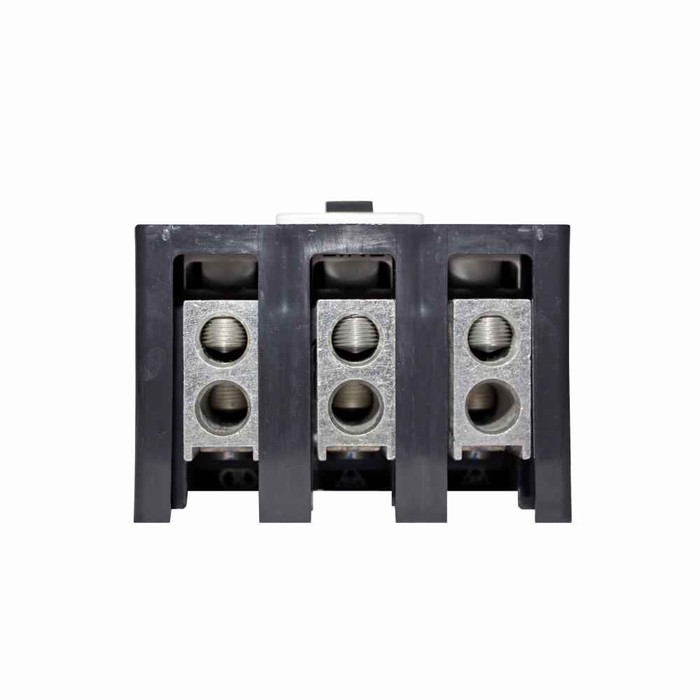

Eaton KG3400S42 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc rear w/ left pigtail, Reverse feed, 60 Hz

Eaton KG3400S42 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc rear w/ left pigtail, Reverse feed, 60 Hz

(No reviews yet) Write a Review

Model: KG3400S42
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,876.33
$4,826.33
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton KG3400WC01S41 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., 12-24 Vac/dc same side w/ left pigtail, Reverse feed, 60 H

Eaton KG3400WC01S41 Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., 12-24 Vac/dc same side w/ left pigtail, Reverse feed, 60 H

Model: EAT-KG3400WC01S41

Eaton Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., 12-24 Vac/dc same...

Eaton

$5,401.33
$5,351.33
Eaton Series C complete molded case circuit breaker, K-frame, KG, Thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc rear w/ left pigtail, Reverse feed, 60 Hz

Manufacturer Resources

Product Specs

Amperage Rating:
400 A
Certifications:
IEC 947-2
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
KG
Class:
Engine generator
Frame:
K
Frequency Rating:
60 Hz
Functions:
Reverse
Generator Rating:
144 kVA/116 kW at 240 Vac, 289 kVA/231 kW at 480 Vac, 361 kVA/289 kW at 600 Vac
Interrupt Rating:
18 kAIC at 240 Vac
Number Of Poles:
Three-pole
Product Height:
6.9 in
Product Length Depth:
6.2 in
Product Weight:
10 lb
Product Width:
6.9 in
Shunt Trip:
12-24 Vac/dc rear with left pigtail shunt
Terminals:
Line and load
Trip Rating:
1000-2000 A
Trip Type:
Thermal-magnetic
Voltage Rating:
600 Vac
!
