Spec Sheet

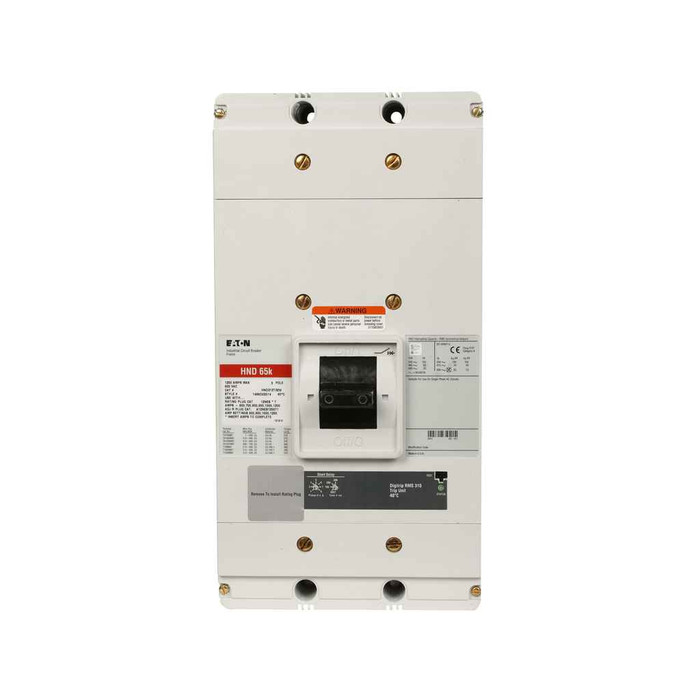

Product Specs
- Amperage Rating:
- 800A
- Circuit Breaker Frame Type:
- Complete breaker
- Circuit Breaker Type:
- ND
- Frame:
- NG-frame
- Frame Size:
- N-frame
- Interrupt Rating:
- 85 kAIC at 240 Vac, 50 kAIC at 480 Vac
- Number Of Poles:
- Three-pole
- Series:
- Series G
- Terminals:
- Without terminals
- Trip Type:
- Electronic LSI
- Voltage Rating:
- 600 Vac
- Department:
- Electrical
- Product Type:
- Digitrip 310
- Product Length:
- 5.5 IN
- Product Details:
- Digitrip 310
- Performance Rating:
- 80% rated
- Product Height:
- 8.25 IN
- Product Weight:
- 47.6 LB
- Product Width:
- 8.25 IN
B-LINE ND3800T32W – Frequently Asked Questions
1) Does the ND3800T32W 800A breaker come with lugs or terminals?
No. The ND3800T32W ships without terminals, so you have to order the line and load connectors separately, sized for an 800A N-frame breaker. Plan that into the order before install day, otherwise the breaker lands on site and cannot be terminated.
2) Is the ND3800T32W rated for a 480V three-phase service?
Yes. The breaker is rated to 600 Vac and is three-pole, so it suits 480Y/277V and 480V three-phase distribution. Interrupting capacity at 480 Vac is 50 kAIC; at 240 Vac it is 85 kAIC. Check those against the available fault current at your gear before you specify it.
3) What adjustments does the Digitrip 310 trip unit on this Eaton ND breaker give me?
The trip unit is an electronic LSI type, meaning long-time, short-time and instantaneous elements. That gives you adjustable long-time pickup and delay plus short-time and instantaneous settings for coordinating with downstream devices, which a thermal-magnetic breaker cannot do. There is no ground fault element in an LSI unit, so if your service needs integral ground fault protection you need an LSIG trip.
4) Is the ND3800T32W a complete breaker or just a trip unit replacement?

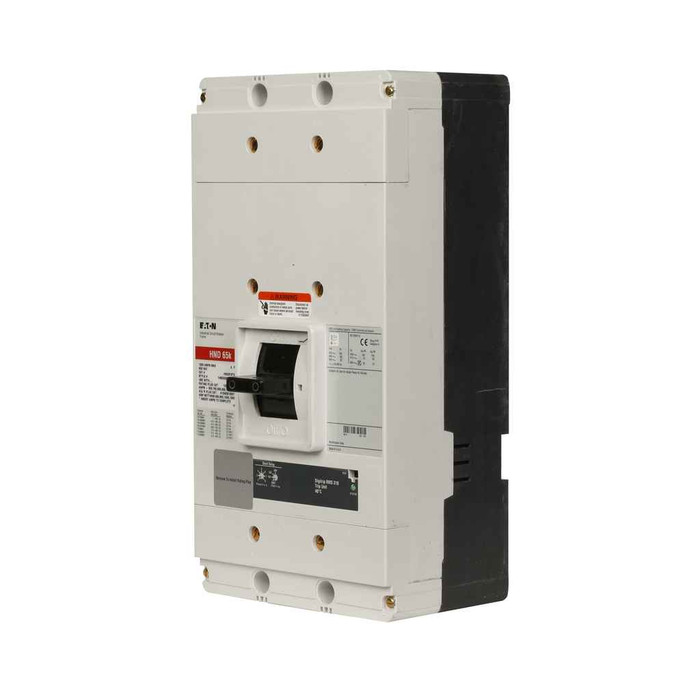

It's a complete breaker, an Eaton Series C ND-type on the NG-frame, not a bare trip unit or an internal accessory. You get the breaker body and the Digitrip 310 electronic trip together; you still add terminals.
5) How much room and how much lifting does an 800A N-frame breaker need?
Figure on a device measuring 8.25 x 5.5 x 8.25 inches (height, length, width as published) and weighing 47.6 lb. At that weight it is a two-person lift into a panel or a mounting with proper support, and the depth behind the door has to clear the cable bending space for 800A conductors.
6) Will the ND3800T32W replace a thermal-magnetic 800A breaker in my existing gear?
Only if the existing device is the same Eaton N-frame footprint and mounting. The ND3800T32W is an N-frame, NG-frame, three-pole 800A breaker, and swapping in an electronic LSI unit for a thermal-magnetic one changes your coordination settings, so the trip curve has to be re-set to the study. Confirm the frame and mounting of what is in the panel today rather than matching on ampere rating alone.
