Eaton JD3250KA12S43 Series C m...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,106.31
$6,056.31

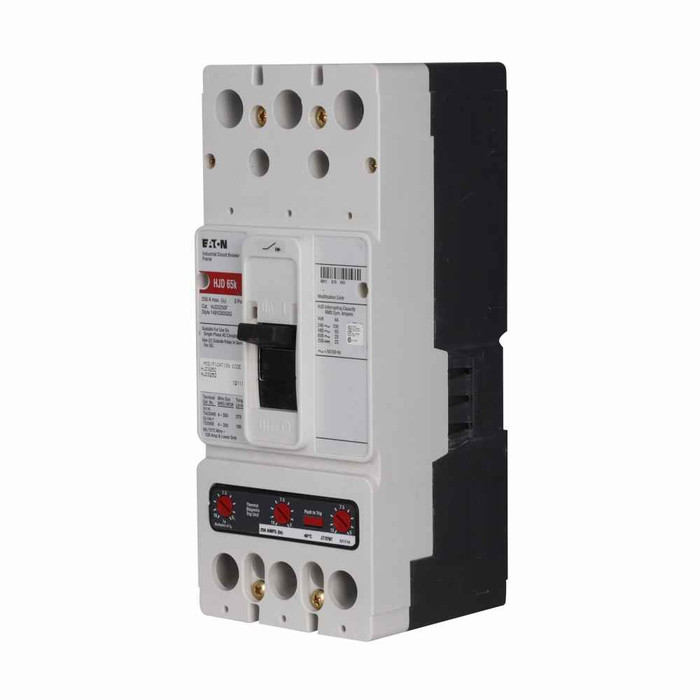

Eaton JD3250KA12S43 Series C molded case switch, J-frame, JD, Fixed thermal and magnetic trips, Three-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac/dc opposite side w/ left pigtail

Eaton JD3250KA12S43 Series C molded case switch, J-frame, JD, Fixed thermal and magnetic trips, Three-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac/dc opposite side w/ left pigtail

(No reviews yet) Write a Review

Model: JD3250KA12S43

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,106.31
$6,056.31
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton JG3250A12S43 Series C complete EG molded case circuit breaker, J-frame, Thermal-magnetic trip, 250A, Three-pole, 250A, 600 Vac, 14 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac opposite side w/ left pigtail, Reverse feed, 60 Hz

Eaton JG3250A12S43 Series C complete EG molded case circuit breaker, J-frame, Thermal-magnetic trip, 250A, Three-pole, 250A, 600 Vac, 14 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac opposite side w/ left pigtail, Reverse feed, 60 Hz

Model: EAT-JG3250A12S43

Eaton Series C complete EG molded case circuit breaker, J-frame, Thermal-magnetic trip, 250A, Three-pole, 250A, 600 Vac, 14 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac opposite side...

Eaton

$4,872.94
$4,822.94
Eaton Series C molded case switch, J-frame, JD, Fixed thermal and magnetic trips, Three-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 2A-2B same side w/right pigtail, 12-24 Vac/dc opposite side w/ left pigtail

Manufacturer Resources

Product Specs

Amperage Rating:
250 A
Auxiliary Switch:
2A-2B same side with right pigtail
Certifications:
UL Listed
Circuit Breaker Frame Type:
Molded case switch
Circuit Breaker Type:
JD
Frame:
J
Frequency Rating:
50 to 60 Hz
Interrupt Rating:
35 kAIC at 480 Vac
Number Of Poles:
Three-pole
Product Height:
4.13 in
Product Length Depth:
4.06 in
Product Weight:
9.55 lb
Product Width:
4.13 in
Series:
Series C
Shunt Trip:
12-24 Vac/dc left pigtail opposite
Trip Type:
Fixed thermal, fixed magnetic
Type:
Molded case switch
Voltage Rating:
600 Vac, 250 Vdc
Product Group:
Electrical
!
