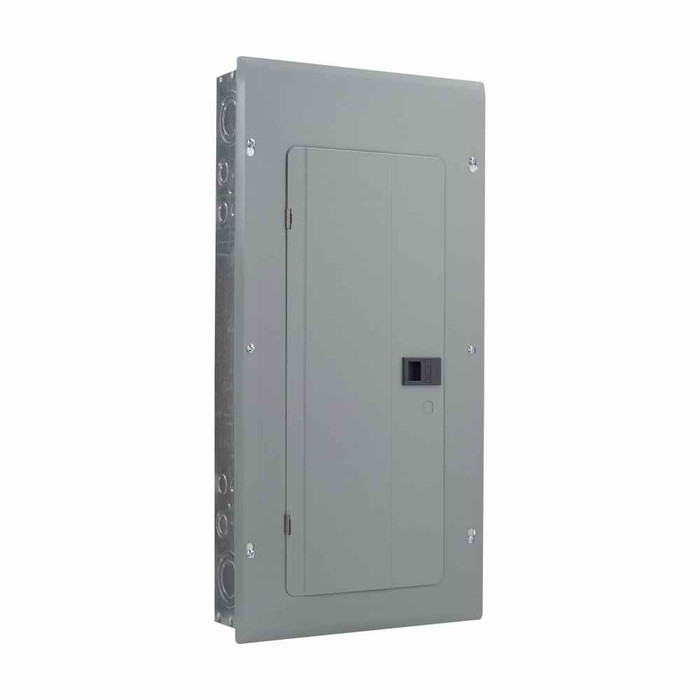

Eaton Single-Phase Plug-On Neutral Main Circuit Breaker Loadcenter

Eaton Single-Phase Plug-On Neutral Main Circuit Breaker Loadcenter with 25 kA Bus Rating and NEMA 1 Enclosure

(No reviews yet) Write a Review

Model: BRP30BC150P2
$1,000.00
$628.79

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
$628.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Single-Phase Plug-On Neutral Main Circuit Breaker Loadcenter with 25 kA Bus Rating and NEMA 1 Enclosure

Professional electrical distribution for residential and commercial applications

The Eaton Single-Phase Plug-On Neutral Main Circuit Breaker Loadcenter delivers reliable electrical distribution with a robust 25 kA bus rating and durable NEMA 1 metallic enclosure. This professional-grade loadcenter features plug-on neutral technology for simplified installation and includes a copper bus system for enhanced conductivity and long-term performance in indoor applications.

Professional Features & Benefits

  • 25 kA Bus Rating: Provides high fault current capacity for enhanced safety and protection in demanding electrical systems.
  • Plug-On Neutral Design: Simplifies installation and reduces wiring time with convenient neutral connections for compatible breakers.
  • NEMA 1 Metallic Enclosure: Offers durable protection for indoor installations with reliable access and secure component housing.
  • Copper Bus System: Ensures superior conductivity and corrosion resistance for long-term electrical performance.
  • 25 kAIC Circuit Breaker Rating: Delivers robust interrupting capacity to safely handle electrical faults and protect downstream circuits.
  • Single-Phase Configuration: Optimized for residential and light commercial applications with two hots, neutral and ground wiring.
  • #6-1/0 AWG Wire Compatibility: Accommodates a wide range of copper and aluminum conductors for flexible installation options.

Technical Specifications

  • Accessories: copper bus
  • Bus Rating: 25 kA
  • Circuit Breaker Rating: 25 kAIC
  • Cover Type: Cover included
  • Enclosure: NEMA 1
  • Enclosure Material: Metallic
  • Item Quantity: 1
  • Nema Rating: NEMA 1
  • Number Of Poles: Single-pole
  • Number Of Wires: Two hots, neutral and ground
  • Phase: Single-phase
  • Product Color: Gray
  • Product Height: 3.88 in
  • Product Width: 14.31 in
  • Wire Size: #6-1/0 AWG Cu/Al

Professional Applications

  • Residential electrical distribution and main panel replacement
  • Light commercial facilities and office buildings
  • Multi-unit residential properties and condominiums
  • Retail establishments and small business locations
  • Professional offices and service facilities
  • Educational and institutional buildings

Why Choose Eaton Quality?

Eaton delivers proven reliability in electrical distribution with robust NEMA 1 metallic construction and high-capacity 25 kA bus rating. The included cover and professional gray finish ensure long-term durability and professional appearance in demanding electrical applications.

Manufacturer Resources

Product Specs

Accessories:
copper bus
Bus Rating:
25 kA
Circuit Breaker Rating:
25 kAIC
Cover Type:
Cover included
Configuration:
NEMA 1
Enclosure Material:
Metallic
Item Quantity:
1
Nema Rating:
NEMA 1
Number Of Poles:
Single-pole
Number Of Wires:
Two hots, neutral and ground
Phase:
Single-phase
Product Color:
Grey
Product Height:
3.88 in
Product Width:
14.31 in
Wire Size:
#6-1/0 AWG Cu/Al
Department:
Electrical
Product Type:
Load Center
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers

Eaton BRP30BC150P2 – Frequently Asked Questions

1) Can this Eaton main breaker loadcenter be installed outdoors?
No. The Eaton plug-on neutral main breaker loadcenter comes in a NEMA 1 metallic enclosure, which is an indoor-only rating with no protection against rain or wet locations. For an exterior meter wall or an unprotected wall, you need a NEMA 3R rainproof loadcenter instead. Indoors, in a utility room, garage, basement, or electrical closet, NEMA 1 is the normal choice.
2) What amperages and circuit space counts does the Eaton plug-on neutral loadcenter come in?
Main breaker ratings run 100A, 125A, 150A, 200A and 225A, and space counts run 12, 16, 20, 30, 40 and 42. For a typical single-family service replacement, 200A with 40 or 42 spaces is the common pick; 100A or 125A with 12 to 20 spaces suits an apartment unit, a garage, or a small tenant space. Pick the amperage from the service size and the space count from your circuit schedule plus room to grow.
3) What size service conductors will the main lugs on this Eaton loadcenter accept?
The main terminals take #6 through 1/0 AWG, copper or aluminum. That covers a typical 100A to 150A feed. If your service entrance conductors are larger than 1/0, for example 2/0 or 4/0 aluminum on a 200A service, they will not land in these terminals and you need a loadcenter with larger main lugs.
4) Is a 25 kA loadcenter overkill, or do I actually need it?
The bus is rated 25 kA and the main breaker 25 kAIC. Standard residential loadcenters are typically 10 kAIC, so the 25 kA rating is there for services close to a large utility transformer or where the utility's available fault current calculation exceeds 10 kA. Commercial buildings, multi-family services, and downtown infill projects frequently run into that. If the utility letter says available fault current is under 10 kA, a standard-rated panel is sufficient; if it is above, this is the panel that meets the requirement.
5) Does this Eaton loadcenter come with a ground bar, or do I order that separately?
It depends on which configuration you order. The feature options are Standard, Ground bar, and the palletized bulk pack. If you need an equipment ground bar in the can, which you do on any subpanel where grounds and neutrals must stay separate, order the Ground bar option rather than Standard. On a service-entrance panel where the neutral is bonded, the standard neutral bar can serve both.
6) What does plug-on neutral mean for installing AFCI and GFCI breakers in this panel?
Plug-on neutral means compatible AFCI, GFCI and dual-function breakers pick up their neutral connection directly off the bus when you snap them on, so there is no white pigtail to route and land on the neutral bar. On a panel full of arc-fault breakers that removes a large bundle of pigtails and cuts wiring time considerably. You still land the circuit neutral from the branch cable on the breaker itself.
7) Do I have to buy a cover separately for this Eaton loadcenter?
No, a cover is included with the loadcenter. One point to watch on the ordering options: the palletized option ships the loadcenters loose with no individual box and the covers packed four per carton, so on that configuration confirm your carton count of covers matches your panel count on the delivery.
8) Is this a single-phase or three-phase panel, and how many wires does it take?
This is a single-phase loadcenter wired with two hots, a neutral and a ground, which is the standard 120/240V residential and light commercial arrangement. It will not serve a 208Y/120 or 480Y/277 three-phase load; for those you need a three-phase panelboard.
9) What are the main device options on this Eaton loadcenter and what is the difference?
The main device choices are Main breaker, Main Breaker Copper, 22 kAIC, and 22 kAIC Copper. The Copper variants pair the main with the copper bus rather than aluminum, which is what most commercial and institutional specs call out for conductivity and corrosion resistance. The 22 kAIC options are the lower interrupting main; select the one that matches your fault current calculation and the spec on the drawing.
10) Can I standardize on this Eaton loadcenter across an apartment building with different unit sizes?
Yes, and that is a reasonable way to buy it. The same plug-on neutral platform spans 100A through 225A and 12 through 42 spaces, so studio units on a 100A/20-space can and larger units on a 200A/40-space can all take the same Eaton breakers and the same NEMA 1 indoor can. That keeps one breaker stocking list for the maintenance shop across the whole property. For bulk jobs, the palletized option ships without individual boxes.
11) How much wall space do I need to fit this Eaton loadcenter?
The enclosure measures 14.31 inches across and 3.88 inches on the depth dimension given, in a gray finish. Overall height varies with the space count, since a 12-space can is considerably shorter than a 42-space. The 14.31 inch width is the number that matters for fitting between studs or into an existing recessed opening on a panel swap.
