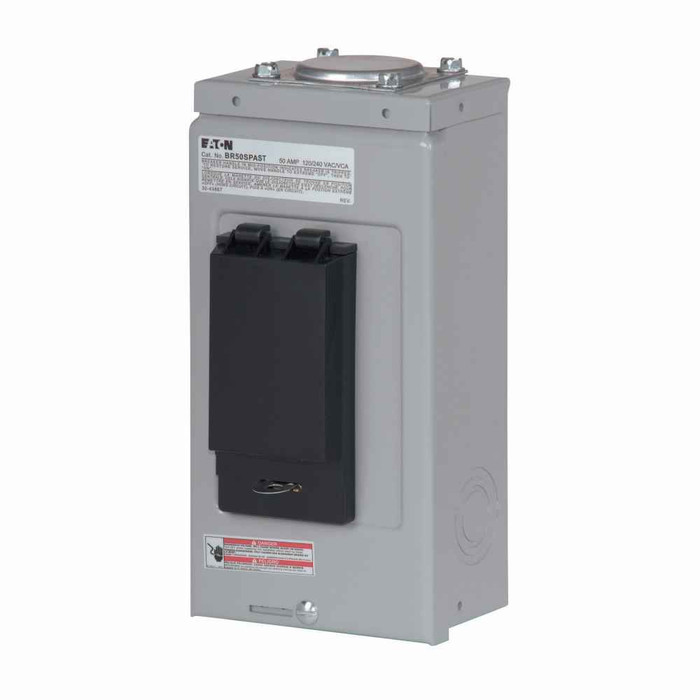

Eaton Spa Panel Factory Installed NEMA 3R Ground Fault Self-Test BR Series

Eaton BR Series NEMA 3R Spa Panel with Ground Fault Self-Test Two-Pole Configuration

(No reviews yet) Write a Review

Model: BR50SPAST

In Stock (leaves warehouse same day if ordered before 3pm ET)

$347.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton BR Series NEMA 3R Spa Panel with Ground Fault Self-Test Two-Pole Configuration

Professional spa electrical protection with factory-installed GFCI self-test technology

The Eaton BR Series spa panel delivers reliable electrical protection for spa and hot tub installations with factory-installed ground fault protection and self-test functionality. This NEMA 3R weatherproof enclosure provides outdoor-rated protection while the two-pole configuration supports standard spa electrical requirements. UL Listed construction ensures code compliance for professional spa installations.

Professional Features & Benefits

  • NEMA 3R Enclosure: Weatherproof protection designed for outdoor spa installations with resistance to rain, sleet, and wind-blown dust.
  • Ground Fault Self-Test: Factory-installed GFCI protection with automatic self-testing capability ensures continuous safety monitoring and code compliance.
  • Two-Pole Configuration: Provides appropriate circuit protection for standard residential and commercial spa electrical requirements.
  • UL Listed Certification: Meets rigorous safety standards for electrical equipment used in wet locations and spa applications.
  • NEC 680.40-680.43 Compliance: Engineered to meet National Electrical Code requirements specifically for spa, hot tub, and hydromassage bathtub installations.
  • #8-2 AWG Wire Compatibility: Accommodates copper and aluminum conductors for flexible installation options and proper ampacity matching.

Technical Specifications

  • Box Size: 5R
  • Certifications: UL Listed
  • Compliances: NEC 680.40-680.43
  • Enclosure: NEMA 3R
  • Number Of Poles: Two-pole
  • Product Details: BR spa panel
  • Product Width: 4.9 in
  • Wire Size: #8-2 AWG Cu/Al

Professional Applications

  • Residential spa and hot tub installations
  • Commercial spa facilities
  • Hotel and resort spa services
  • Multi-unit residential properties with spa amenities
  • Therapeutic and wellness centers
  • Pool and spa service applications

Why Choose Eaton Quality?

Eaton BR Series spa panels combine proven reliability with advanced safety features including factory-installed ground fault protection and self-test capability. UL Listed construction and NEC compliance ensure professional-grade performance for demanding spa applications, while the compact 4.9-inch width and NEMA 3R weatherproof enclosure provide versatile installation options for both residential and commercial projects.

Manufacturer Resources

Product Specs

Box Size:
5R
Certifications:
UL Listed
Compliances:
NEC 680.40-680.43
Configuration:
NEMA 3R
Number Of Poles:
Two-pole
Product Details:
BR spa panel
Product Width:
4.9 in
Wire Size:
#8-2 AWG Cu/Al
Department:
Electrical
Product Type:
Electrical Component
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers

Eaton BR50SPAST – Frequently Asked Questions

1) Does the Eaton BR spa panel come in both 40A and 50A, and which one do I need for my hot tub?
Two amperage ratings are offered: 40A (BR40SPAST) and 50A (BR50SPAST). Match the rating to the maximum overcurrent protection the spa manufacturer's data plate calls for, since that number, not the panel, sets the breaker size. Both are two-pole units in the same NEMA 3R enclosure, so the enclosure and wiring details are identical between them.
2) What wire size can I land in the Eaton BR spa panel, and does it take aluminum?
The lugs accept #8 through #2 AWG, copper or aluminum. That range covers the usual 50A spa feed on #8 or #6 copper and lets you step up to #4 or #2 aluminum for long runs where voltage drop matters.
3) Does this Eaton spa panel already include the GFCI breaker, or do I buy that separately?
The ground fault protection is factory installed, with self-test capability built in, so you are not sourcing a separate GFCI breaker. You still supply the feeder, the conduit and fittings, and the whip to the spa pack.
4) How wide is the Eaton BR spa panel enclosure for mounting on a narrow post or wall space?
4.9 inches wide, on a 5R box size. That fits a single 2x4 stud face or a 4x4 post without overhang, which is why these get used on deck posts and tight side-yard walls.
5) What does the self-test feature on this GFCI spa panel actually do for me?
The self-test GFCI checks its own ground fault sensing automatically rather than relying on someone pressing the test button each month. On rental properties, hotels and multi-family amenity spas where nobody is going to test it on schedule, that is the practical difference from a standard GFCI spa panel.
6) Is a two-pole spa panel enough, or do I need something with more poles?
Two-pole covers the standard 240V spa feed, which is what most residential and light commercial hot tubs require. If your spa pack calls for separate branch circuits for heater, blower and lights beyond the single 240V feed, you are into a larger spa subpanel instead of this two-pole unit.
7) Can I standardize on this Eaton panel across multiple spa installations in a property?
Yes, and that is a common use for it. The same two-pole NEMA 3R panel is offered in 40A and 50A, so a property with mixed spa ratings can keep one panel type and one wire range (#8-2 AWG Cu/Al) across the portfolio, with only the amperage differing by unit.
