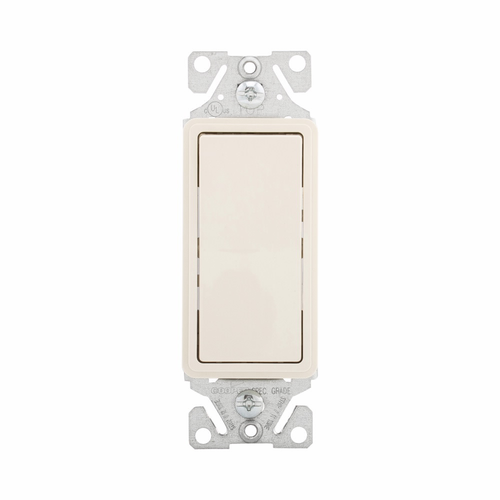

Eaton Single-Pole Decorator Switch, 15A, 120/277V, Thermoplastic

Eaton Single-Pole Decorator Switch, 15A, 120/277V, Thermoplastic

(No reviews yet) Write a Review

Model: 7501V-BOX
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Single-Pole Decorator Switch, 15A, 120/277V, Thermoplastic

The Eaton Single-Pole Decorator Switch is a standard-grade, flush-mount switch built for commercial and residential wiring applications. Rated 15A at 120/277V, this decorator-style switch features a durable thermoplastic housing and accepts #14-12 AWG wire via back-and-push wiring for fast, secure terminations. As a maintained, single-pole switch with a decorator actuator, it is suited for controlling motor control loads, fans, and a wide range of lighting types including LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen fixtures.

Key Features

  • Amperage Rating: 15A for reliable switching performance in general-purpose lighting and motor control circuits.
  • Voltage Rating: 120/277V, suitable for both standard and high-voltage lighting applications.
  • Durable Construction: Thermoplastic housing provides long-term durability for everyday commercial and residential use.
  • Wiring Method: Back-and-push wiring accepts #14-12 AWG allowable wire size, simplifying installation and reducing labor time.
  • Switch Type: Single-pole, maintained-closure decorator switch with a decorator-style actuator for a clean, modern appearance.
  • Mounting Method: Flush mounting with box included for straightforward installation in standard wall boxes.
  • Broad Load Compatibility: Rated for motor control, fan, LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen loads.

Certifications & Compliance

  • cULus Listed
  • NAFTA Compliant

Technical Specifications

  • Special features: Box
  • Mounting method: Flush
  • Amperage Rating: 15A
  • Voltage rating: 120/277V
  • Type: Switch decorator
  • Closure type: Maintained
  • Switch type: Single-pole
  • Wiring method: Back and push
  • Material: Thermoplastic
  • Allowable wire size: #14-12 AWG
  • Compliances: NAFTA

Typical Applications

  • Commercial and Residential Electrical Installations
  • Lighting Control for LED, Incandescent, CFL, Fluorescent, and Halogen Fixtures
  • Motor Control and Fan Switching
  • Decorator-Style Wall Plate Systems
  • Renovation and New Construction Wiring

Why Eaton?

Eaton's standard-grade decorator switch combines durable thermoplastic construction with a cULus Listed, NAFTA-compliant design for dependable, code-compliant performance. With flexible back-and-push wiring and broad compatibility across motor control, fan, and modern lighting loads, this switch is built for professional electrical installations that demand consistent, reliable operation.

Manufacturer Resources

Product Specs

Mounting Method:
Flush
Amperage Rating:
15A
Voltage Rating:
120/277V
Product Height:
4.19 in
Product Type:
Decorator Rocker Switch
Phase:
Single-phase
Closure Type:
Maintained
Switch Classification:
Single-pole
Actuator:
Decorator
Certifications:
cULus Listed
Number Of Poles:
Single-pole
Product Width:
.97 in
Wiring Method:
Back and push
Product Length/Depth:
1.44 in
Product Material:
Thermoplastic
Allowable Wire Size:
#14-12 AWG
Compliances:
NAFTA
Special Features:
Box
Department:
Electrical
Configuration:
1-Pole
Listing:
cULus
Product Group:
Wiring Devices
Product Subgroup:
Rocker Switches
Product Length:
1.44 in

Eaton 7501V-BOX – Frequently Asked Questions

1) Will the Eaton 7501 decorator switch work on a 277V lighting circuit?
Yes. The Eaton 7501 single-pole decorator switch is rated 15A at 120/277V, so it can be used on 277V commercial lighting branch circuits as well as standard 120V residential and light commercial circuits. It is cULus Listed.
2) What wire size can I land on the Eaton 7501 switch, and can I use 12 AWG?
It accepts #14-12 AWG, so both 14 AWG on a 15A circuit and 12 AWG on a 20A feed passing through are within the allowable range. Terminations are back and push wiring.
3) Is the Eaton 7501 a single-pole or three-way switch?
Single-pole only, with maintained closure. It controls one load from one location. If you need to switch a fixture from two locations, you need a three-way device instead, not this one.
4) Can I use this Eaton decorator switch on LED and dimmable low-voltage lighting?
It is rated for LED, incandescent, ELV, MLV, CFL, fluorescent and halogen loads, plus fan and motor control. Note it is a switch, not a dimmer, so it turns those loads on and off only.
5) Does the Eaton 7501 need a decorator wall plate, and is one included?
It uses a decorator actuator, so it takes a rectangular decorator/Deco-style plate opening, not a toggle plate. The switch ships in a box as its special feature; a wallplate is a separate order.
6) What colors does the Eaton 7501 decorator switch come in and what are the part numbers?
Three colors: white (7501WBOX), ivory (7501V-BOX) and brown (7501B-BOX). For a property manager standardizing across a building, order all devices in one of those three to match existing plates.
7) Is the Eaton 7501 rated for commercial specification work or is it a residential-grade device?
It is a standard-grade thermoplastic switch, cULus Listed and NAFTA compliant, used in both commercial and residential installs. If your spec calls for a heavy-duty specification-grade or hospital-grade device, this standard-grade switch will not meet that line item.
8) Can I use this switch to control an exhaust fan or a small motor load?
Yes, the 7501 is rated for motor control and fan loads within its 15A, 120/277V rating, so bath and utility exhaust fans on a 15A circuit are within scope.
