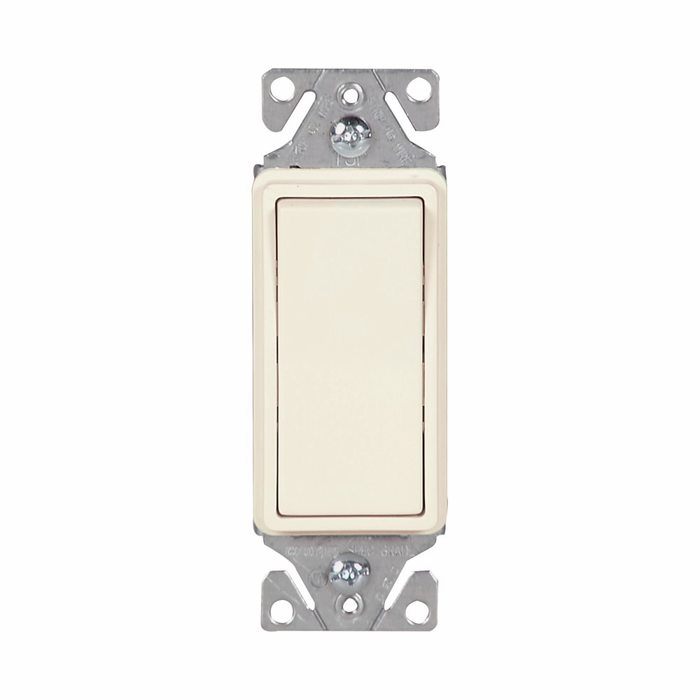

Eaton Three-Way Decorator Switch, Lighted-in-Off Position, 15A

Eaton Three-Way Decorator Switch, Lighted-in-Off Position, 15A

(No reviews yet) Write a Review

Model: 7513LA-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Three-Way Decorator Switch, Lighted-in-Off Position, 15A

The Eaton Three-Way Decorator Switch is a standard-grade lighting control device built for reliable residential and light commercial wiring. Rated 15A at 120/277V and constructed of durable thermoplastic in a light almond finish, this decorator switch features a lighted-in-off-position indicator so the switch location is always visible in a dark room. It accepts #14-12 AWG wire via back and push wiring, mounts flush, and is cULus Listed and RoHS Compliant for dependable, code-conscious installations.

Key Features

  • Three-Way Switching: Three-way switch type allows control of a single fixture from two separate locations.
  • Lighted in Off Position: Illuminates when the switch is off, making the switch easy to locate in low-light conditions.
  • Electrical Rating: Rated 15A at 120/277V, single-phase, for standard lighting and receptacle circuits.
  • Wiring: Back and push wiring method accepts #14-12 AWG allowable wire size for fast, secure terminations.
  • Durable Construction: Thermoplastic housing in a light almond finish resists wear in everyday use.
  • Decorator Actuator: Decorator-style paddle actuator with maintained closure type for a clean, modern switch profile.
  • Flush Mounting: Flush mounting method for a low-profile, wall-mounted installation.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant

Technical Specifications

  • Switch Type: Three-way
  • Type: Switch decorator
  • Amperage Rating: 15 A
  • Voltage Rating: 120/277 V
  • Phase: Single-phase
  • Color: Light almond
  • Material: Thermoplastic
  • Mounting Method: Flush
  • Wiring Method: Back and push
  • Allowable Wire Size: #14-12 AWG
  • Closure Type: Maintained
  • Load Type: HAL
  • Actuator: Decorator
  • Special Features: Lighted in off position, box
  • Product Width: .97 in
  • Product Length/Depth: 1.44 in
  • Product Height: 4.19 in
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Typical Applications

  • Residential and Light Commercial Lighting Control
  • Three-Way Switching Circuits Controlled from Two Locations
  • New Construction and Remodel Wiring
  • Decorator-Style Device Upgrades and Retrofits
  • Hallways, Stairwells, and Rooms Needing Off-Position Location Lighting

Why Eaton?

Eaton builds this decorator switch with durable thermoplastic construction, a lighted-in-off-position indicator, and cULus Listed, RoHS Compliant performance that electrical professionals can depend on. It is a straightforward, code-conscious choice for three-way lighting control in residential and light commercial projects.

Manufacturer Resources

Product Specs

Number Of Poles:
Three-way
Product Width:
.97 in
Mounting Method:
Flush
Amperage Rating:
15A
Voltage Rating:
120/277V
Product Color:
Light Almond
Wiring Method:
Back and push
Product Length/Depth:
1.44 in
Special Features:
Lighted in off position, box
Product Height:
4.19 in
Product Type:
Decorator Rocker Switch
Phase:
Single-phase
Product Material:
Thermoplastic
Allowable Wire Size:
#14-12 AWG
Closure Type:
Maintained
Load Type:
HAL
Switch Classification:
Three-way
Compliances:
RoHS Compliant
Actuator:
Decorator
Certifications:
cULus Listed
Department:
Electrical
Configuration:
Three-Way
Listing:
cULus
Standards:
RoHS Compliant
Product Group:
Wiring Devices
Product Subgroup:
Rocker Switches
Product Weight:
0.15 lb
Product Length:
1.44 in

Eaton 7513LA-BOX – Frequently Asked Questions

1) Can the Eaton 7513LA three-way decorator switch control one light from two locations?
That's exactly what it's built for. The 7513LA is a three-way switch, so two of them wired together with travelers let you control the same fixture from two separate points, like the top and bottom of a stairwell. If you need a single control point, a three-way is the wrong device; use a single-pole. For three or more control points you add a 4-way switch between the pair of three-ways.
2) Will the lighted-in-off feature on this Eaton switch work with LED lamps?
The 7513LA lights its indicator when the switch is OFF, which means a small current passes through the load to feed the lamp. Eaton rates the load type as HAL (halogen). With incandescent or halogen loads the indicator behaves as intended. On LED or CFL fixtures that trickle current can cause flicker or faint glow, so match it to the rated load type or pick a locator switch specified for LED loads.
3) Is this Eaton decorator switch rated for 277V commercial lighting circuits?
Yes, it carries a 15A, 120/277V single-phase rating, so it can be used on 277V lighting branch circuits in light commercial work as well as standard 120V residential circuits.
4) Will this Eaton switch fit a standard decorator wall plate and a single-gang box?
It's a decorator (paddle) actuator with flush mounting, so it takes a standard rectangular decorator/GFCI-style wall plate, not a toggle plate. Device body measures .97 x 1.44 x 4.19 inches, which is standard strap-and-yoke size for a single-gang or ganged box.
5) What wire size does the Eaton 7513LA three-way switch accept, and can I back-wire it?
It takes #14-12 AWG copper and uses back and push wiring, so conductors land in the back of the device rather than being wrapped under side screws. That covers the 14 AWG on a 15A circuit and 12 AWG on a 20A circuit feeding through the box.
6) Is the Eaton 7513LA switch UL listed for commercial and institutional jobs?
It is cULus Listed and RoHS Compliant, which covers both US and Canadian listing requirements for an inspection. It is a standard-grade device, so on high-traffic institutional openings and heavy switching duty a spec-grade switch is the better match.
7) What color is the Eaton 7513LA and will it match my existing devices?
Light almond thermoplastic. That's the warmer, slightly darker off-white, distinct from ivory and from plain white, so if your other plates and receptacles are white it won't blend. Property managers standardizing a building should confirm the existing devices are light almond before ordering a run.
8) Does this switch stay in position, or is it momentary?
Closure type is maintained, so the paddle stays where you put it. That's what you want for lighting control. Momentary switches, which spring back, are for things like garbage disposals or low-voltage relay control and this is not one of those.
9) What is the Eaton part number for this light almond lighted three-way decorator switch?
Order it as Eaton 7513LA-BOX. The LA suffix is the light almond color and BOX indicates individual box packaging rather than bulk contractor pack.
