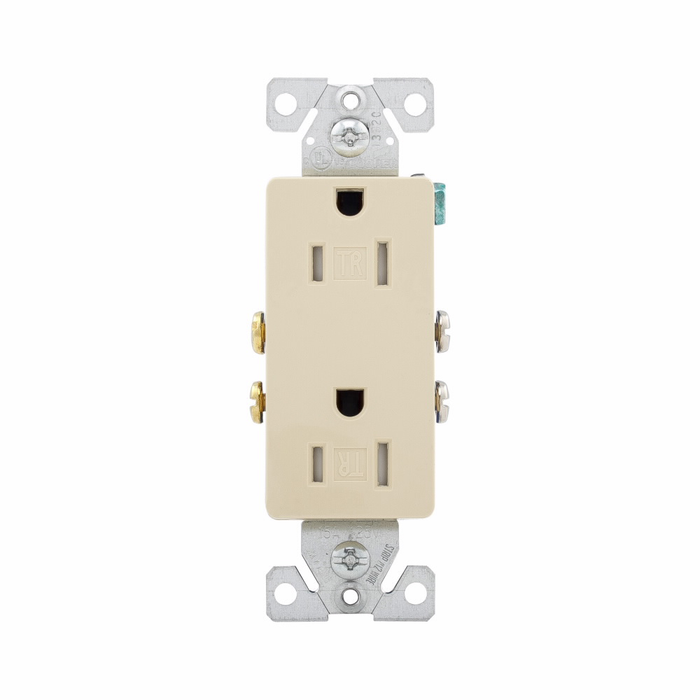

Eaton Tamper-Resistant Decorator Duplex Receptacle, 15A/125V

Eaton Tamper-Resistant Decorator Duplex Receptacle, 15A/125V

(No reviews yet) Write a Review

Model: TR1107V

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Tamper-Resistant Decorator Duplex Receptacle, 15A/125V

The Eaton Tamper-Resistant Decorator Duplex Receptacle is a residential-grade straight blade device built for everyday branch-circuit wiring. Rated 15A at 125V with a NEMA 5-15R configuration, this duplex receptacle accepts #14-10 AWG wire via side and push-wire connection methods, and its decorator styling pairs an impact-resistant thermoplastic face with a PVC body for long-term durability. Backed by cULus Listing, it's a dependable choice for standard residential outlet replacements and new installations.

Key Features

  • Electrical Rating: 15A, 125V duplex receptacle for standard residential branch circuits.
  • Wire Compatibility: Accepts #14-10 AWG conductors with a three-wire connection.
  • Wiring Method: Side and push-wire terminals with screw connection type for fast, secure installation.
  • Tamper Resistant: Built-in shutter mechanism helps prevent foreign-object insertion, an important safety feature for residential settings.
  • Durable Construction: Impact-resistant thermoplastic face over a PVC body resists everyday wear and impact.
  • Decorator Style: Straight blade, decorator-style duplex design available in multiple finish options for a clean, modern look.
  • NEMA Configuration: 5-15R configuration ensures compatibility with standard 15A plugs.
  • Contact Material: Brass contacts support reliable, long-term electrical connections.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Amperage Rating: 15A
  • Voltage Rating: 125V
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Nema Configuration: 5-15R
  • Contact Material: Brass
  • Material: Thermoplastic
  • Face/Body Material: Impact-resistant thermoplastic face, PVC body
  • Connection Type: Screw
  • Wiring Method: Side and push
  • Mounting Type: Flush
  • Device Grade: Standard
  • Design Type: Straight blade
  • Style Type: Decorator
  • Special Features: Tamper resistant
  • Application: Residential
  • Receptacle Type: Duplex
  • Device Type: Receptacle
  • Product Width: .69 IN
  • Product Length/Depth: 1.3 IN
  • Product Height: 3.81 IN

Typical Applications

  • Residential Outlet Replacement and Upgrades
  • New Construction Wiring Projects
  • Bedrooms, Living Areas, and General-Purpose Circuits
  • Kitchens and Utility Areas Requiring Standard Duplex Outlets
  • Renovation and Remodel Electrical Work

Why Eaton?

Eaton engineers residential wiring devices with durable thermoplastic and PVC construction, brass contacts, and tamper-resistant safety features to deliver dependable performance. This cULus Listed duplex receptacle is built to meet code-compliant standards for reliable, everyday use in residential electrical systems.

Variant Specifications

ColorModelSKU
BlackTR1107BKBXSPTR1107BKBXSP
IvoryStandardTR1107V

Manufacturer Resources

Product Specs

Listing:
cULus
Department:
Electrical
Product Type:
Duplex Receptacle
Certifications:
cULus Listed
Connection Type:
Screw
Voltage Rating:
125V
Product Material:
Thermoplastic
Amperage Rating:
15A
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Width:
0.69 in
Product Length:
1.3 in
Product Height:
3.81 in
Number of Poles:
Two-pole

Eaton TR1107V – Frequently Asked Questions

1) Will the Eaton TR1107 tamper-resistant receptacle work on a standard 15 amp residential branch circuit with 14 gauge wire?
Yes. The Eaton TR1107 decorator duplex is rated 15A at 125V with a NEMA 5-15R face, and it accepts #14-10 AWG conductors on a three-wire (hot, neutral, ground) connection. That covers the usual 14/2 or 12/2 romex run in a bedroom or living area circuit.
2) Is this Eaton receptacle rated for commercial or heavy traffic use, or is it residential only?
It's a standard, residential-grade device. Eaton lists the TR1107 as standard grade for residential branch-circuit work, with a thermoplastic face over a PVC body and brass contacts. For a commercial corridor, school, or anywhere with constant plug cycling, step up to a spec or heavy-duty grade part such as the Pass & Seymour 26352W specification grade decorator duplex or the Bryant 5362B heavy-duty duplex.
3) Does a tamper-resistant outlet like the Eaton TR1107 satisfy the code requirement for child-safe receptacles in dwelling units?
The TR1107 has the built-in shutter mechanism that defines a tamper-resistant receptacle, so it blocks single-prong insertion of foreign objects, and it is cULus Listed. That shutter is the feature inspectors look for in dwelling-unit locations. It does not provide GFCI or AFCI protection, so bathroom, kitchen counter, garage, and outdoor locations still need protection from a GFCI device or breaker upstream.
4) Will a 20 amp appliance plug fit the Eaton TR1107 receptacle?
No. The face is NEMA 5-15R, which takes standard 15A parallel-blade plugs. A 20A NEMA 5-20P plug has a T-slot neutral blade and will not enter it. For a 20A load on a 20A circuit, use a 20A device such as the Pass & Seymour 26352W 20A/125V decorator duplex or the Bryant 5362B 20A/125V duplex.
5) Does the Eaton TR1107 give me GFCI protection, or do I need a different device at the sink?
No. The Eaton TR1107 is a straight blade tamper-resistant duplex receptacle; its shutters block foreign-object insertion but provide no ground-fault protection. Where GFCI protection is required at the outlet, the Pass & Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI receptacle in ivory. Tamper resistance and GFCI are separate features - do not treat the TR1107 as a substitute for a GFCI device.
6) What is the closest tamper-resistant alternative to the Eaton TR1107 duplex receptacle from another brand?
The Pass & Seymour 3232TRW Trademaster tamper-resistant duplex receptacle is the nearest match in intent: it is also a tamper-resistant duplex device, supplied in white. The Eaton TR1107 is a 15A, 125V tamper-resistant decorator-style duplex with a thermoplastic face, offered in black (TR1107BKBXSP) and ivory (TR1107V). If the room calls for white, the Trademaster covers it; if you are matching black or ivory devices already on the wall, stay with the Eaton.
7) What colors does the Eaton TR1107 decorator receptacle come in, and what are the part numbers?
Two colors: ivory, ordered as TR1107V, and black, ordered as TR1107BKBXSP. Decorator (Decora-style) face, so it needs a decorator-opening wall plate, not a standard duplex plate.
8) Can I use the Eaton TR1107 for a hospital patient room outlet?
The Eaton TR1107 is a standard-grade device specified for residential branch circuits. Where a hospital grade device is required, the Pass & Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI receptacle. For patient care areas, order to the hospital grade listing rather than substituting the residential Eaton.
9) I need a twist-lock or locking outlet, not a straight blade - what takes the place of the Eaton TR1107?
The Eaton TR1107 is a straight blade NEMA 5-15R duplex, so a cord cap will pull straight out of it. For a locking connection, the Bryant 70520FR is a 7 Series NEMA flanged locking receptacle and the Pass & Seymour Turnlok 30A single receptacle is a non-NEMA locking device. Those serve equipment that must not be unplugged by a tug on the cord.
10) Will the Eaton TR1107 work in a hazardous or wash-down area?
No. The Eaton TR1107 is a flush-mounted residential wiring device with a thermoplastic face and PVC body, cULus Listed for ordinary branch-circuit use. For classified areas, the Appleton FSQC Series interlocked explosionproof receptacle and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set are the devices built for that environment. Do not substitute the Eaton into a hazardous location.
11) I am standardizing on decorator-style outlets across a building - which devices keep the same look?
The Eaton TR1107 is decorator style in black and ivory and is tamper resistant at 15A, 125V. The Pass & Seymour 26352W is also a decorator duplex, in white, at 20A 125V and specification grade. Between them you can hold the decorator face profile across 15A and 20A circuits and across black, ivory, and white, using the same rectangular wall plate opening throughout.
12) Are the contacts brass, and does that matter for a rental unit I'm re-outletting?
The TR1107 uses brass contacts behind an impact-resistant thermoplastic face on a PVC body. For turnover work in apartments that's the construction you want at standard grade: the brass holds blade tension over repeated plug-ins, and the shutters keep it code-appropriate for dwelling units. For laundry rooms or maintenance shops where cords get yanked daily, a heavy-duty device like the Bryant 5362BI is the tougher choice.
