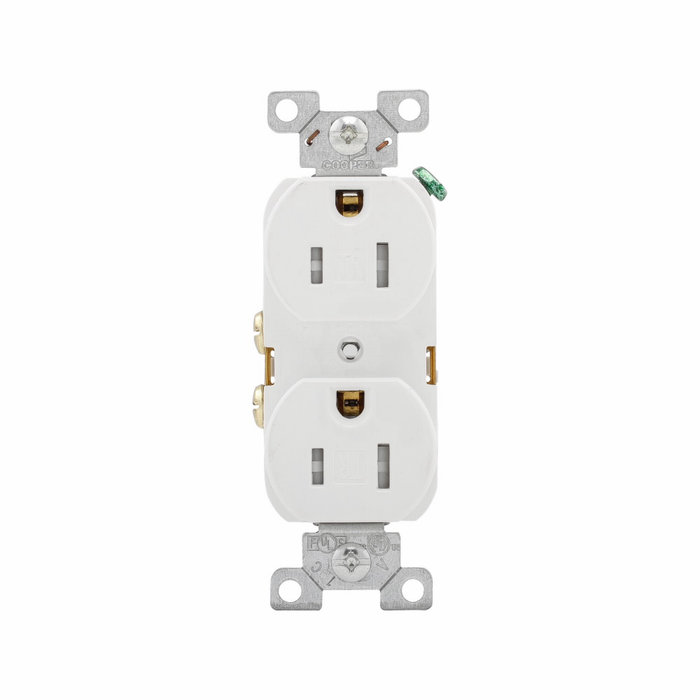

Eaton TRBR15W-BXSP Tamper-Resistant Duplex Receptacle, 15A White

Eaton TRBR15W-BXSP Tamper-Resistant Duplex Receptacle, 15A White

(No reviews yet) Write a Review

Model: TRBR15W-BXSP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton TRBR15W-BXSP Tamper-Resistant Duplex Receptacle, 15A White

The Eaton TRBR15W-BXSP is a commercial specification grade tamper-resistant duplex receptacle built for 125V, 15A applications in commercial and light-industrial environments. Rated for #14-10 AWG wire, this flush-mount 5-15R device accepts back and side wiring with screw terminals for a fast, secure termination. The receptacle features an impact-resistant nylon face over a durable PVC body with brass contacts, delivering the strength and reliability required for high-traffic commercial installations, finished in white to blend with standard wall and device plate colors.

Key Features

  • Amperage & Voltage Rating: Rated 15A at 125V for standard commercial branch circuits.
  • Wire Compatibility: Accepts #14-10 AWG conductors for flexible field wiring.
  • Wiring Method: Back and side wiring with screw terminals for secure, code-compliant connections.
  • Tamper-Resistant Design: Built-in tamper-resistant shutters help block unauthorized insertion of foreign objects into the receptacle openings.
  • Durable Construction: Impact-resistant nylon face combined with a PVC body provides strength and long-term durability in commercial settings.
  • Brass Contacts: Brass contact construction supports reliable, long-lasting electrical connections.
  • Configuration: Duplex 5-15R receptacle configuration for standard NEMA 5-15 plugs.
  • Flush Mount & Finish: Flush mounting profile with a clean white finish for a professional appearance.
  • Specification Grade: Commercial specification grade construction meets the demands of commercial-grade electrical installations.

Technical Specifications

  • Product Type: Duplex Receptacle
  • Amperage Rating: 15A
  • Voltage Rating: 125V
  • Wire Range: #14-10 AWG
  • Configuration: Duplex, 5-15R
  • Wiring Method: Back and Side, Screw Terminal
  • Mounting: Flush
  • Product Material: Impact-Resistant Nylon Face, PVC Body, Brass Contacts
  • Product Color: White
  • Grade: Commercial Specification Grade
  • Tamper Resistance: Tamper-Resistant

Typical Applications

  • Commercial and Light-Industrial Electrical Installations
  • Office and Retail Wiring Devices
  • Renovation and New Construction Projects
  • Standard 125V, 15A Branch Circuit Outlets
  • Applications Requiring Tamper-Resistant Protection

Why Eaton?

Eaton's TRBR15W-BXSP is built to commercial specification grade standards, combining an impact-resistant nylon face, durable PVC body, and brass contacts for dependable performance in demanding commercial environments. The tamper-resistant design adds an extra layer of safety, making this receptacle a solid choice for professionals who need reliable, code-compliant wiring devices. Choose Eaton for consistent quality and dependable electrical components trusted across commercial installations.

Manufacturer Resources

Product Specs

list_batch:
EAT-20260924
Product Type:
Duplex Receptacle
Amperage Rating:
15A
Voltage Rating:
125V
Configuration:
Duplex
Grade:
Commercial Specification Grade
Department:
Electrical
Product Subgroup:
Receptacles & Outlets
Product Material:
PVC
Product Color:
White
Product Group:
Wiring Devices
Product Width:
0.79 in
Product Weight:
0.212 lb
Product Height:
4 in
Product Length:
1.24 in

Eaton TRBR15W-BXSP – Frequently Asked Questions

1) Will the Eaton TRBR15W-BXSP receptacle accept 12 gauge wire, or only 14?
Wire range on the TRBR15W-BXSP is #14 through #10 AWG, so 12 AWG branch circuit conductors terminate without an issue. Terminations are screw terminals, and the device takes back or side wiring, so you can run straight into the back of the terminal or hook the side screw depending on how the box is crowded.
2) Is this Eaton tamper-resistant outlet the right one for a daycare or school classroom where TR receptacles are required?
Yes, the TRBR15W-BXSP has built-in shutters that block insertion of foreign objects into the slots, which is the function spec writers mean when they call for tamper-resistant receptacles in areas with children. It is a 15A, 125V duplex 5-15R, which is the standard general-purpose outlet configuration for those rooms.
3) Can I put a 15A receptacle like the Eaton TRBR15W on a 20A circuit?
The TRBR15W-BXSP is rated 15A at 125V with a 5-15R face, so it will not accept a 20A (5-20R) T-slot plug. Code permits 15A receptacles on a 20A multi-outlet branch circuit, but if your spec or drawing calls for a 20A device at that location, you need a 20A receptacle instead, such as the Pass & Seymour PlugTail 20A 125V spec-grade duplex.
4) Does this tamper-resistant Eaton receptacle also provide GFCI protection?
No. The TRBR15W-BXSP is a standard duplex 5-15R with tamper-resistant shutters only, no ground-fault or arc-fault protection built in. Where a bathroom, kitchen, rooftop, or exterior location needs GFCI, either use a GFCI device at that outlet or protect the circuit upstream with a GFCI breaker.
5) What is the difference between this Eaton spec-grade receptacle and a PlugTail device?
Both are specification grade commercial outlets, but they terminate differently. The Eaton TRBR15W-BXSP uses conventional screw terminals with back or side wiring, so the conductors land directly on the device. The Pass & Seymour PlugTail 20A 125V spec-grade duplex uses a pigtail connector system, where a wired connector stays in the box and the device plugs onto it. PlugTail speeds up trim-out and device swaps on large jobs; the Eaton is the standard-wiring choice and is the 15A tamper-resistant device.
6) Is a commercial spec grade receptacle worth it over a residential grade outlet for apartment turnovers?
For units that see constant plug cycling, yes. The TRBR15W-BXSP is built to commercial specification grade with an impact-resistant nylon face, PVC body, and brass contacts, which is a heavier construction than a residential-grade outlet and holds up better under repeated use in corridors, offices, lobbies, and rental units.
7) Will the white Eaton TRBR15W match the other outlets and cover plates in my building?
The device is white, which pairs with standard white wall plates and the most common device color in commercial interiors. It is a flush-mount duplex, so it sits in a standard single-gang box behind a normal duplex plate. Note that the plate is a separate item, not supplied with the receptacle.
8) What exact part number do I order for the Eaton 15A white tamper-resistant duplex?
Order Eaton TRBR15W-BXSP. That is the manufacturer part number for the 15A, 125V white tamper-resistant duplex receptacle, and the single configuration offered, so there is no color or amperage option to specify.
