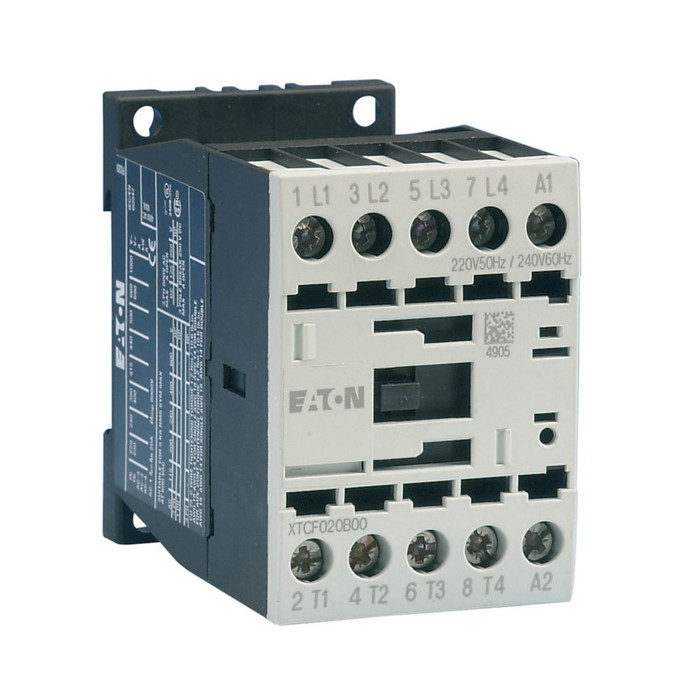

Eaton XT IEC Full Voltage Non-Reversing Contactor, Frame B, 45 mm
The Eaton XT IEC Full Voltage Non-Reversing Contactor delivers dependable motor control for commercial and industrial applications, featuring a 20A continuous ampere rating, 110 Vac 50 Hz / 120 Vac 60 Hz coil voltage, and a compact Frame B, 45 mm frame size. Built as part of Eaton's XT IEC series, this four-pole, non-reversing contactor is UL Listed and RoHS Compliant for code-compliant panel and motor control installations.
Key Features
- Frame Size: Frame B, 45 mm frame size for compact motor control panel layouts.
- Amperage Rating: 20A continuous ampere rating for reliable switching of connected motor loads.
- Coil Voltage: 110 Vac at 50 Hz and 120 Vac at 60 Hz coil voltage supports flexible AC control circuits.
- Contact Configuration: 0 NO, 0 NC contact configuration on a four-pole design.
- Terminals: Screw terminals provide secure, vibration-resistant field wiring connections.
- Operation: Full voltage non-reversing contactor operation rated 50-60 Hz.
- HP Rating: Rated 1, 2/3, 3, and 10 hp across 115, 230/200, 230, 460, and 575 V single- and three-phase applications.
- Series: Part of the Eaton XT IEC contactor series.
Certifications & Compliance
- UL Listed
- RoHS Compliant
Technical Specifications
- Amperage Rating: 20A
- Number Of Poles: Four-pole
- Coil Voltage: 110-120 Vac, 50/60 Hz
- Terminals: Screw terminals
- Product Width: 3 in
- Product Length/Depth: 2.75 in
- Product Height: 2 in
- Type: Full voltage non-reversing contactor
- Frame Size: 45 mm
- Series: XT IEC
- Contact Configuration: 0 NO, 0 NC
- Continuous Ampere Rating: 20 A
Typical Applications
- Motor Control Panels and Motor Control Centers
- Commercial and Industrial Electrical Installations
- Full-Voltage Non-Reversing Motor Starting
- Contactor Replacement in Existing XT IEC Enclosures
- OEM Machine Control Wiring
Why Eaton?
Eaton's XT IEC contactor combines a compact Frame B, 45 mm footprint with screw terminals and a 20A continuous rating for dependable, space-saving motor control. Backed by UL Listing and RoHS Compliance, this contactor is built for code-compliant performance in professional electrical and motor control installations.
Manufacturer Resources
Product Specs
- Number Of Poles:
- Four-pole
- Product Width:
- 3 in
- Amperage Rating:
- 20A
- Coil voltage:
- 110-120 Vac, 50/60 Hz
- Terminals:
- Screw terminals
- Product Length/Depth:
- 2.75 in
- Product Height:
- 2 in
- Product Type:
- Contactor
- HP rating - max:
- 1, 2/3, 3, 10, 10 hp (1/3PH @115,230/200,230,460,575 V)
- Operation:
- Non-reversing
- Frequency rating:
- 50-60 Hz
- Series:
- XT IEC
- Contact configuration:
- 0 NO, 0 NC
- Frame size:
- 45 mm
- Compliances:
- RoHS Compliant
- Continuous ampere rating:
- 20 A
- Certifications:
- UL Listed
- Department:
- Electrical
- Voltage Rating:
- 110-120V
- Configuration:
- Four-Pole
- Listing:
- UL Listed
- Standards:
- RoHS Compliant
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Motor Starters & Contactors
Eaton XTCF020B00A – Frequently Asked Questions
1) How much motor can a 20A Eaton XT IEC Frame B contactor run?
The XT IEC Frame B contactor carries a 20 A continuous rating and is horsepower rated 1, 2/3, 3, 10 and 10 hp at 115, 230/200, 230, 460 and 575 V across single- and three-phase. Size to the horsepower column that matches your motor nameplate voltage and phase, not to the 20 A figure alone.
2) Is this a four-pole contactor, and can I use it for a three-phase motor plus a neutral or fourth leg?
Four poles, yes. The XTCF020B00A is a four-pole full voltage non-reversing contactor, so it switches three motor phases plus a fourth power pole, which is what you want for four-wire loads or switching a neutral where the design calls for it. It is not a reversing contactor and will not swap phase rotation on its own.
3) Does the Eaton XTCF020B00A come with any auxiliary contacts?
No. The contact configuration is 0 NO, 0 NC, meaning there are no built-in auxiliary contacts on the device. If your control scheme needs a seal-in contact, a run indication, or an interlock, you have to order an XT auxiliary contact block separately.
4) Do I need anything else to build a starter with the Eaton XTCF020B00A?
This is the contactor only, in full voltage non-reversing form. A complete starter needs an overload relay sized to the motor FLA, and if your control logic requires a seal-in or status contact you will need an auxiliary contact block, since the unit ships with 0 NO, 0 NC. Reversing duty requires a second contactor and mechanical interlock; a single non-reversing unit cannot do it.
5) I am replacing a failed contactor in an existing Eaton XT enclosure. Is XTCF020B00A the direct swap?
It matches if the unit coming out is a Frame B 45 mm, 20 A, four-pole, non-reversing XT IEC contactor with a 110-120 Vac coil. Those four things, frame size, current rating, pole count and coil voltage, are what decide a like-for-like swap. Check the part number on the old device against XTCF020B00A before pulling wire.
6) Will this Eaton contactor fit my existing DIN rail panel layout?
The Frame B, 45 mm frame size is the footprint to plan around. Overall the body measures 3 in width, 2.75 in length/depth and 2 in height. Lay that against your rail spacing and wireway clearance before committing to the panel drawing.
7) Is the Eaton XT IEC contactor UL Listed for an inspected commercial installation?
It is UL Listed, and RoHS Compliant. For a motor control panel going through an electrical inspection in a commercial or industrial building, the UL Listing is the mark the AHJ looks for on the control device.
8) Can I use this contactor on a 50 Hz system as well as 60 Hz?
Yes. The device is rated 50-60 Hz and the coil is specified 110 Vac at 50 Hz / 120 Vac at 60 Hz, so it works on export equipment and OEM machines built for either supply frequency.
9) What kind of wire terminations does the XT IEC contactor use?
Screw terminals, on both power and control connections. That means standard field wiring with ferrules or bare stranded conductor, torqued down, and it holds up to vibration in machine and MCC applications. No spring-clamp or ring-tongue prep is required.
