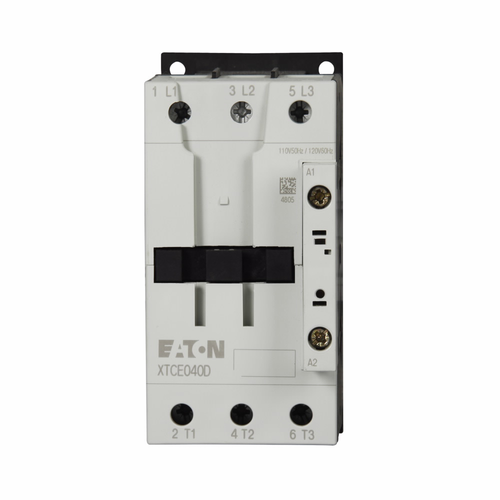

Eaton XT IEC Three-Pole FVNR Contactor, Frame D, Screw Terminals
Model: EAT-XTCE-040D00A
Eaton XT IEC Three-Pole Contactor, FVNRThe Eaton XT IEC Three-Pole Contactor is a full voltage non-reversing (FVNR) contactor built on Eaton's XT IEC platform, designed for reliable motor control in...
Eaton
Starting at
$333.93
Eaton XT IEC Three-Pole Non-Reversing Contactor, Frame B, Screw Terminals
Model: EAT-XTCE-007B10A
Eaton XT IEC Three-Pole Non-Reversing Contactor, Frame B, 45 mmThe Eaton XT IEC Three-Pole Non-Reversing Contactor is a full voltage non-reversing contactor from Eaton's XT IEC series, built on a...
Eaton
Starting at
$112.84
Eaton XT IEC Three-Pole Non-Reversing Contactor, Screw Terminals
The Eaton XT IEC Three-Pole Non-Reversing Contactor is a full voltage non-reversing contactor built on the XT IEC series platform for industrial motor control applications. Available in a range of amperage ratings, coil voltages, and frame sizes to suit varied motor loads, this contactor features a three-pole design for balanced three-phase motor switching. Screw terminals simplify field wiring, and the unit carries UL Listed certification for dependable performance in commercial and industrial control panels.
Key Features
- Frame Size: Compact construction for space-efficient panel and enclosure mounting.
- Current Rating: Available in multiple continuous current ratings suited for a range of motor control applications.
- Coil Voltage: Offered in multiple coil voltages for reliable switching and control circuit integration.
- Poles: Three-pole design for balanced three-phase motor switching.
- Operation: Non-reversing full voltage contactor operation for standard motor starting duty.
- Terminals: Screw terminals provide secure, field-serviceable wiring connections.
Certifications & Compliance
- UL Listed
Technical Specifications
- Series: XT IEC
- Type: Full voltage non-reversing contactor
- Number of Poles: Three-pole
- Operation: Non-reversing
- Terminals: Screw terminals
- Certifications: UL Listed
Typical Applications
- Three-Phase Motor Starting and Control
- Industrial Control Panels
- Motor Control Centers and Panelboard Wiring
- Commercial and Industrial Electrical Installations
- OEM Machine and Equipment Control Circuits
Why Eaton?
Eaton's XT IEC series contactors combine a compact design with UL Listed certification, screw terminal wiring, and dependable coil options to deliver consistent, code-compliant performance in professional motor control applications. The three-pole, non-reversing configuration makes this contactor a practical choice for industrial and commercial control panels requiring reliable full voltage switching.
Variant Specifications
| Amperage | Coil Voltage | Frame | SKU |
|---|---|---|---|
| 9–72 A (Frames B–D) | 120 volts | Standard | XTCE015B10A |
| 9–72 A (Frames B–D) | 24 volts | Standard | XTCE015B10T |
| 18–32 A (Frame C) | Standard | Standard | XTCE018C10TD |
| 32–72 A (Frames C–D) | 24-27 volts | 45 millimeters | XTCE032C01TD |
| 9–72 A (Frames B–D) | 110/120 volts | Standard | XTCE065DS1A |
| 32–72 A (Frames C–D) | 24 volts | 55 millimeters | XTCE072D00T |
| 9–72 A (Frames B–D) | 27 volts | Standard | XTCE072D00TD |
| 80–95 A (Frame F) | Standard | Standard | XTCE095F00A |
| 9–115 A (Frames B–G) | Standard | Standard | XTCE115G00A |
Manufacturer Resources
Spec Sheet
Product Specs
- Department:
- Electrical
- Series:
- XT IEC
- Number Of Poles:
- Three-pole
- Product Type:
- Contactor
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Contactors & Relays
Eaton XTCE015B10A – Frequently Asked Questions
1) What coil voltages are available on the Eaton XT IEC three-pole contactor?
Coil voltage is the option you pick alongside the amperage. Across the XTCE line the coil choices are 120 V (XTCE015B10A), 24 V (XTCE015B10T and XTCE072D00T), 24-27 V (XTCE032C01TD), 110/120 V (XTCE065DS1A), and 27 V (XTCE072D00TD). Several ratings, including XTCE018C10TD, XTCE095F00A and XTCE115G00A, are supplied with the standard coil. Match the coil to your control transformer secondary, not to the motor line voltage.
2) Which amperage rating of the Eaton XTCE contactor do I need for my motor?
The XTCE three-pole contactors span 9 A up to 115 A in frames B through G. Ratings offered are 9-72 A (frames B-D), 18-32 A (frame C), 32-72 A (frames C-D), 80-95 A (frame F) and 9-115 A (frames B-G). Size the contactor to the motor full load amps at the service voltage, then confirm the frame will fit the space you have in the panel, since the larger frames are physically bigger.
3) Can I use this Eaton contactor to reverse a three-phase motor?
No. The XTCE is a full voltage non-reversing (FVNR) contactor, so it switches the motor in one direction only. Reversing duty needs two contactors mechanically and electrically interlocked, or a factory reversing starter. For standard across-the-line starting of a three-phase motor, the three-pole XTCE is the correct device.
4) Does the Eaton XTCE contactor include overload protection?
No, it is a contactor only, not a complete starter. It switches power to the motor but provides no thermal or electronic overload element. To build a motor starter you add a matching XT-series overload relay or a motor protective circuit breaker ahead of it, plus branch circuit protection. Auxiliary contact blocks for control interlocks are also a separate order.
5) What kind of wire terminations does this Eaton XT IEC contactor use?
Screw terminals on both power and control connections. That makes it field serviceable with a standard screwdriver, no crimp tooling or spring-clamp technique needed, and it suits stranded panel wire terminated with ferrules or bare. If your panel standard calls for push-in spring cage terminations, this is not the version to order.
6) Is the Eaton XTCE contactor UL Listed for use in a control panel?
Yes, the XT IEC three-pole contactor is UL Listed. That matters for panel shops and institutional buyers whose assemblies get inspected, since the components inside a listed industrial control panel generally have to be recognized or listed themselves.
7) Will an IEC contactor like the Eaton XTCE fit where I have a NEMA starter now?
Not as a bolt-in. IEC contactors such as the XTCE are physically smaller than the NEMA size they replace electrically and use a different mounting footprint, typically DIN rail rather than the panel-mounted pattern of an older NEMA starter. Plan on new mounting and often shorter wire runs. The trade-off is that IEC devices are sized tightly to the motor FLA, so pick the amperage from the 9 A to 115 A range rather than translating a NEMA size number.
8) I need to standardize contactors across several machines with different motor sizes. Can I stay in one Eaton series?
Yes. The XT IEC platform covers 9 A through 115 A across frames B, C, D, F and G in the same three-pole non-reversing configuration with screw terminals, so a facility or OEM can hold one series and one wiring method across small and large motors. Coil voltage still has to be specified per unit, and the 24 V and 120 V coil options let you keep a single control circuit standard.
9) What is the difference between the Eaton XTCE072D00T and XTCE072D00TD?
Both are 72 A class devices in the frame C-D range. The difference is the coil: the XTCE072D00T is a 24 V coil and the XTCE072D00TD is 27 V. Order to whatever your control transformer or DC control supply actually delivers at the coil.
10) Where can I get the full electrical ratings for the Eaton XT IEC contactor?
Eaton publishes a spec sheet for the XT IEC contactor line that carries the detailed AC-3 ratings, coil data and dimensional drawings per frame. It is available as a PDF with the product record, and it is the document to check before you finalize panel layout for the larger F and G frames.
