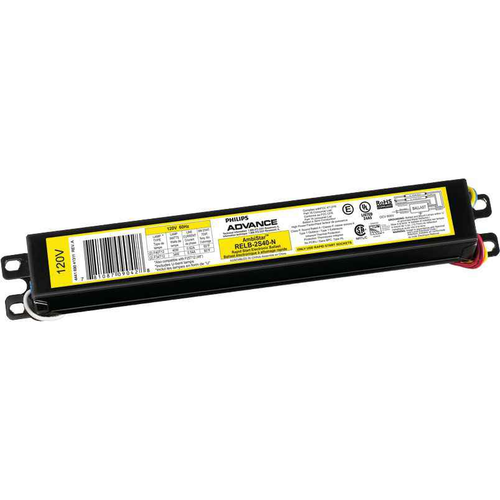

Advance Electronic Fluorescent Ballast 2-Lamp F40T12 120-277V Rapid Start

Advance Electronic Fluorescent Ballast 2-Lamp F40T12 120-277V Rapid Start

(No reviews yet) Write a Review

Model: ICN2S40N35I
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$90.39
$35.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Fluorescent Ballast 2-Lamp F40T12 120-277V Rapid Start

Professional electronic ballast for reliable T12 fluorescent lighting applications

The Advance Electronic Fluorescent Ballast delivers dependable performance for 2-lamp F40T12 fluorescent systems with universal 120-277V operation and rapid start technology. This metal-housed electronic ballast features high power factor performance and comprehensive certifications for professional lighting installations.

Professional Features & Benefits

  • Universal Voltage Operation (120-277V): Provides installation flexibility across various electrical systems and reduces inventory requirements.
  • High Power Factor (0.98): Maximizes electrical efficiency and reduces power consumption for cost-effective operation.
  • Rapid Start Technology: Ensures reliable lamp ignition and extends fluorescent tube life through controlled starting.
  • Low Total Harmonic Distortion (10%): Minimizes electrical interference and maintains clean power quality in sensitive environments.
  • Metal Housing Construction: Delivers durability and heat dissipation for long-term reliability in commercial applications.
  • Comprehensive Certifications: UL, CSA, DOE, and RoHS compliance ensures safety and regulatory adherence for professional installations.
  • Compact Design (9.5" x 1.3" x 1.0"): Fits standard fixture configurations while maintaining easy installation and service access.

Technical Specifications

  • Ballast Factor: 0.85
  • Country Of Origin: USA
  • Efficacy: 1.180555556
  • Frequency Rating: 50to60 Hz
  • Housing Material: Metal
  • Lamp Type: T12
  • Number Of Lamps: 2
  • Power Factor: 0.98
  • Product Height: 1.0000 IN
  • Product Length: 9.5000 IN
  • Product Type: Electronic Fluorescent
  • Product Wattage: 40 W
  • Product Weight: 1.100 Lbs
  • Product Width: 1.3000 IN
  • Standard: CSA certificate;UL certificate;CEC Listing;Circle E logo;CSA E;DOE;RoHS Compliant
  • Start Type: RAPID START
  • Total Harmonic Distortion: 10
  • Voltage Rating: 120-277 V
  • Wire Gauge: 18 AWG
  • Wire Type: Solid

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Environments
  • Industrial Workspaces
  • Warehouse and Storage Areas
  • Government Buildings

Why Choose Advance Quality?

Advance electronic ballasts provide proven reliability with comprehensive UL, CSA, DOE, and RoHS certifications. The metal housing construction and high power factor design ensure long-term performance in demanding commercial environments, backed by USA manufacturing quality standards.

Manufacturer Resources

Product Specs

Ballast Factor:
0.85
Country Of Origin:
USA
Efficacy:
1.180555556
Frequency Rating:
50to60 Hz
Housing Material:
Metal
Lamp Type:
T12
Number Of Lamps:
2
Power Factor:
0.98
Product Height:
1.0000 IN
Product Length:
9.5000 IN
Product Type:
Electronic Fluorescent
Product Wattage:
40 W
Product Weight:
1.100 Lbs
Product Width:
1.3000 IN
Standard:
CSA certificate;UL certificate;CEC Listing;Circle E logo;CSA E;DOE;RoHS Compliant
Start Type:
RAPID START
Total Harmonic Distortion:
10
Voltage Rating:
120-277 V
Wire Gauge:
18 AWG
Wire Type:
Solid
Department:
Electrical

Advance ICN2S40N35I – Frequently Asked Questions

1) Will the Advance ICN2S40N35I ballast run two F40T12 lamps on 277V?
Yes. The ICN2S40N35I is a universal-voltage ballast rated 120-277V, so the same part works on 120V, 208V, 240V or 277V branch circuits. It drives two F40T12 lamps at 40W each. For an MRO stockroom that means one ballast covers both the 120V and 277V fixtures in a building instead of two separate line items.
2) Can I use this Advance ballast to replace an old magnetic F40T12 ballast in a 2-lamp troffer?
It replaces a 2-lamp F40T12 magnetic ballast in the same fixture, provided the lamps stay T12. It is a rapid start electronic ballast, which is the same starting method the magnetic units used, so the existing rapid start lampholder wiring carries over. The housing measures 9.5 x 1.3 x 1.0 inches and weighs 1.1 lbs, which is the standard slim can footprint that drops into the ballast channel of a common 2x4 troffer or strip. If you are converting the fixture to T8 lamps instead, this is the wrong ballast: it is built for T12 only.
3) Will this ballast fit in the ballast channel of my existing fluorescent fixture?
The can measures 9.5 inches long, 1.3 inches wide and 1.0 inch high. That is the small-can electronic format, shorter and lighter than the magnetic ballast it typically replaces, so it clears the channel in most 4-foot strips and 2x4 troffers with room for the wiring. Measure the channel opening against those three numbers before ordering a truckload.
4) What wire size do I need for the connections on this Advance electronic ballast?
The ballast leads are 18 AWG solid conductor. Use wire nuts or push-in connectors rated for 18 AWG solid when you splice to the fixture leads. Solid leads matter for the connector choice: a push-in connector sized only for stranded is the wrong part here.
5) Is this a rapid start or instant start ballast, and does that matter for a space where the lights switch on and off all day?
Rapid start. It preheats the lamp cathodes before striking the arc, which is easier on the lamp in spaces that cycle frequently, like restrooms, stairwells, or anywhere on occupancy sensors. Instant start ballasts light faster but shorten lamp life under heavy switching. If your fixture was originally wired for rapid start lampholders, this also matches the existing wiring.
6) I only have one F40T12 lamp left working in the fixture. Can I run a single lamp on this ballast?
The ICN2S40N35I is a two-lamp F40T12 ballast, and a two-lamp rapid start ballast should be run with both lamps installed. Leaving a socket empty means the fixture is not operating as designed. Replace both lamps, or spec a one-lamp F40T12 ballast for that fixture instead.
7) How do I confirm I am ordering the exact Advance ballast that matches what came out of my fixture?
Match the manufacturer part number on the ballast label: ICN2S40N35I from Advance. The label on the unit in the fixture will carry that number, along with the 2-lamp F40T12 and 120-277V ratings printed on the face. If your old unit reads a different lamp type such as T8, or a single fixed voltage, it is not this part.
8) Is the Advance ICN2S40N35I ballast made in the USA, and is the housing metal or plastic?
Country of origin is the USA, and the housing is metal. The metal can helps shed heat inside an enclosed fixture channel and is what agencies expect on a Buy American line item for a government or public school job.
