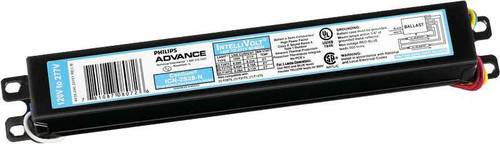

Advance Electronic Fluorescent Ballast 4-Lamp F54T5HO 120-277V Programmed Start

Advance Electronic Fluorescent Ballast 4-Lamp F54T5HO 120-277V Programmed Start

(No reviews yet) Write a Review

Model: ICN4S5490C2LSG35I
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.47
$116.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Fluorescent Ballast 4-Lamp F54T5HO 120-277V Programmed Start

Professional electronic ballast for high-output T5 fluorescent lighting systems

The Advance Electronic Fluorescent Ballast delivers reliable performance for 4-lamp F54T5HO fluorescent lighting applications. This programmed start ballast operates on universal 120-277V input with metal housing construction and 18 AWG solid wire connections. Designed for professional installations requiring efficient T5 high-output lamp operation with 0.98 power factor and low 10% total harmonic distortion.

Professional Features & Benefits

  • 4-Lamp F54T5HO Capacity: Operates four 54W high-output T5 fluorescent lamps for comprehensive area lighting coverage
  • Universal 120-277V Operation: Compatible with standard commercial and residential voltage systems for versatile installation flexibility
  • Programmed Start Technology: Provides controlled lamp ignition sequence to extend lamp life and ensure reliable operation
  • High Power Factor 0.98: Delivers efficient power utilization and reduced electrical system loading for professional applications
  • Low 10% THD: Minimizes harmonic distortion for clean power operation and reduced interference with sensitive equipment
  • Metal Housing Construction: Provides durable protection and heat dissipation for long-term reliability in commercial environments
  • Multiple Certifications: UL, CSA, CEC, NOM, and RoHS compliant for comprehensive safety and environmental standards

Technical Specifications

  • Ballast Factor: 1
  • Country Of Origin: USA
  • Efficacy: 0.416666667
  • Frequency Rating: 50to60 Hz
  • Housing Material: Metal
  • Lamp Type: T5
  • Number Of Lamps: 4
  • Power Factor: 0.98
  • Product Height: 1.1800 IN
  • Product Length: 16.7000 IN
  • Product Type: Electronic Fluorescent
  • Product Wattage: 54 W
  • Product Weight: 2.000 Lbs
  • Product Width: 1.7000 IN
  • Standard: CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant
  • Start Type: PROGRAMMED START
  • Total Harmonic Distortion: 10
  • Voltage Rating: 120-277 V
  • Wire Gauge: 18 AWG
  • Wire Type: Solid

Professional Applications

  • Commercial Office Buildings
  • Retail and Shopping Centers
  • Educational Facilities
  • Healthcare and Medical Facilities
  • Industrial and Manufacturing Plants
  • Warehouse and Distribution Centers
  • Government and Municipal Buildings

Why Choose Advance Quality?

Advance electronic ballasts provide dependable performance with comprehensive safety certifications including UL, CSA, CEC, NOM, and RoHS compliance. The metal housing construction and USA manufacturing ensure long-term durability for professional lighting applications requiring reliable T5 fluorescent operation.

Manufacturer Resources

Product Specs

Ballast Factor:
1
Country Of Origin:
USA
Efficacy:
0.416666667
Frequency Rating:
50to60 Hz
Housing Material:
Metal
Lamp Type:
T5
Number Of Lamps:
4
Power Factor:
0.98
Product Height:
1.1800 IN
Product Length:
16.7000 IN
Product Type:
Electronic Fluorescent
Product Wattage:
54 W
Product Weight:
2.000 Lbs
Product Width:
1.7000 IN
Standard:
CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant
Start Type:
PROGRAMMED START
Total Harmonic Distortion:
10
Voltage Rating:
120-277 V
Wire Gauge:
18 AWG
Wire Type:
Solid
Department:
Electrical

Advance ICN4S5490C2LSG35I – Frequently Asked Questions

1) Will the Advance ICN4S5490C2LSG35I ballast run on both 120V and 277V circuits?
Yes. The Advance ICN4S5490C2LSG35I is a universal-voltage ballast rated 120-277V, so the same part works on a 120V branch circuit in a small retail space or a 277V commercial lighting circuit without ordering a different model. Line frequency range is 50 to 60 Hz.
2) Which lamps does this 4-lamp Advance T5 ballast actually drive?
It drives four 54W T5 high-output lamps (F54T5HO). It is built around the 54W T5HO lamp, so standard 28W T5 lamps or any T8 lamp are the wrong lamp for this ballast. If you are relamping a T5HO high bay or a 4-lamp troffer with 54W tubes, this is the matching ballast.
3) Will this ballast fit inside my existing T5HO fixture channel?
Case size is 16.7 inches long, 1.7 inches wide and 1.18 inches high, which is the standard long, low-profile can shape used in T5HO strip and troffer housings. Measure the free length in your wireway before ordering, since 16.7 inches is the controlling dimension. It weighs 2 lbs.
4) Does this Advance T5HO ballast meet commercial electrical code and energy requirements?
It carries UL and CSA certificates, a CEC listing, NOM certification, and is RoHS compliant. That covers US, Canadian and Mexican installations and the California Energy Commission listing needed on many commercial specs. It is made in the USA, which matters on jobs with domestic sourcing requirements.
5) Should I use a programmed start or instant start ballast for T5HO lamps?
Programmed start, which is what this Advance unit uses. It preheats the cathodes before striking the arc, which protects lamp life in spaces where lights cycle often, occupancy sensor controlled restrooms, classrooms, corridors, stairwells and warehouse aisles. Instant start costs lamps their life under frequent switching; it only makes sense where fixtures run long uninterrupted hours.
6) What light output will I get, will this ballast dim or under-drive the lamps?
Ballast factor is 1.0, so the lamps run at full rated output, not reduced. This is a fixed-output ballast, not a dimming one. If the space is over-lit and you want to trim wattage, you would need a lower ballast factor or dimming ballast instead.
7) Will a bank of these ballasts cause harmonic problems on my panel?
Total harmonic distortion is 10 percent and power factor is 0.98, which is the range commercial specs normally call for when a floor is loaded with dozens of fixtures. Low THD keeps distortion off the neutral and away from sensitive equipment, and the high power factor keeps the current draw close to the real load.
8) What wire is on this ballast and how do I land the connections?
Leads are 18 AWG solid conductor. Solid leads land cleanly in twist-on connectors or push-in style connectors, which is what most fixture wireways use. Have the right connectors on the truck if your existing fixture was wired with stranded lead ballasts.
9) Is this ballast suitable for high-heat industrial and warehouse fixtures?
The housing is metal, which both protects the electronics and pulls heat out of the case, and Advance lists this ballast for industrial plants, warehouses and distribution centers along with offices, retail, schools, healthcare and government buildings. Metal-case construction is the usual choice over plastic where fixture cavity temperatures run high.
