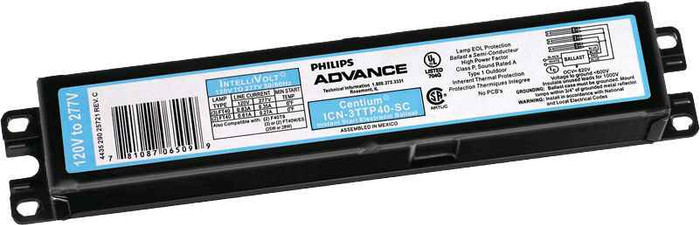

Advance Electronic Dimmable Ballast 40W 120-277V 3-Lamp CFL Instant Start

Advance Electronic Dimmable Ballast 40W 120-277V 3-Lamp CFL Instant Start

(No reviews yet) Write a Review

Model: ICN3TTP40SC35I
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$133.91
$74.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Dimmable Ballast 40W 120-277V 3-Lamp CFL Instant Start

Professional Electronic Fluorescent Ballast for Commercial & Industrial Applications

The Advance Electronic Dimmable Ballast delivers reliable 40W power management for 3-lamp CFL systems with instant start technology. Featuring universal 120-277V operation and metal housing construction, this electronic fluorescent ballast provides professional-grade performance with 0.88 ballast factor and high 0.98 power factor for efficient operation across commercial and industrial lighting applications.

Professional Features & Benefits

  • 40W Power Rating: Optimized wattage capacity ensures proper lamp operation and consistent light output for professional environments.
  • 120-277V Universal Voltage: Wide voltage compatibility reduces inventory requirements and simplifies installation across diverse electrical systems.
  • Electronic Dimmable Design: Advanced electronic control enables smooth dimming capability for energy savings and lighting control flexibility.
  • 3-Lamp Configuration: Supports multiple lamp operation for enhanced illumination coverage in commercial and industrial spaces.
  • Instant Start Technology: Provides immediate lamp ignition without warm-up delay for instant illumination when power is applied.
  • High Power Factor (0.98): Excellent power factor minimizes reactive power draw and improves overall electrical system efficiency.
  • Metal Housing Construction: Durable metal enclosure provides superior protection and heat dissipation for extended service life.

Technical Specifications

  • Ballast Factor: 0.88
  • Country Of Origin: USA
  • Efficacy: 0.888888889
  • Frequency Rating: 50to60 Hz
  • Housing Material: Metal
  • Lamp Type: CFL
  • Number Of Lamps: 3
  • Power Factor: 0.98
  • Product Height: 1.1800 IN
  • Product Length: 9.5000 IN
  • Product Type: Electronic Fluorescent
  • Product Wattage: 40 W
  • Product Weight: 1.300 Lbs
  • Product Width: 1.7000 IN
  • Standard: CSA certificate;UL certificate;CEC Listing;RoHS Compliant
  • Start Type: INSTANT START
  • Total Harmonic Distortion: 10
  • Voltage Rating: 120-277 V
  • Wire Gauge: 18 AWG
  • Wire Type: Solid

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Facilities
  • Industrial Workspaces
  • Warehouse Lighting Systems
  • Multi-Tenant Properties

Why Choose Advance Quality?

Advance electronic ballasts deliver proven reliability with comprehensive UL and CSA certifications, CEC listing, and RoHS compliance. The compact metal housing design and USA manufacturing ensure consistent performance and durability for demanding commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Ballast Factor:
0.88
Country Of Origin:
USA
Efficacy:
0.888888889
Frequency Rating:
50to60 Hz
Housing Material:
Metal
Lamp Type:
CFL
Number Of Lamps:
3
Power Factor:
0.98
Product Height:
1.1800 IN
Product Length:
9.5000 IN
Product Type:
Electronic Fluorescent
Product Wattage:
40 W
Product Weight:
1.300 Lbs
Product Width:
1.7000 IN
Standard:
CSA certificate;UL certificate;CEC Listing;RoHS Compliant
Start Type:
INSTANT START
Total Harmonic Distortion:
10
Voltage Rating:
120-277 V
Wire Gauge:
18 AWG
Wire Type:
Solid
Department:
Electrical

Advance ICN3TTP40SC35I – Frequently Asked Questions

1) Will the Advance ICN3TTP40SC35I ballast run on both 120V and 277V circuits?
The ICN3TTP40SC35I is a universal-voltage ballast, rated 120-277 V, so the same part goes into a 120V tenant space or a 277V commercial panel without stocking two versions. Frequency rating is 50 to 60 Hz. For a property manager standardizing across buildings on mixed service, that means one shelf part instead of two.
2) How many CFL lamps does the Advance ICN3TTP40SC35I ballast drive, and can I run it with fewer?
It's built as a 3-lamp CFL ballast, 40 W. Instant start ballasts run lamps in parallel, so a failed or removed lamp doesn't take the others out, but the ballast factor and wattage figures apply to the full 3-lamp load it's rated for. If the fixture holds two lamps, spec a 2-lamp ballast instead of underloading this one.
3) Will the Advance ICN3TTP40SC35I fit inside my existing fixture channel?
Case dimensions are 9.5 x 1.7 x 1.18 inches, which is the compact case size that drops into most troffer and downlight channels. Weight is 1.3 lbs. Measure the channel opening against 9.5 inches of run length before you pull the old one; the low 1.18 inch profile is what usually decides whether it clears the reflector.
4) Is the Advance ICN3TTP40SC35I ballast UL listed for a healthcare or school job?
It carries a UL certificate and a CSA certificate, plus CEC listing and RoHS compliance. That covers the certification line most institutional and government specs ask for on a ballast replacement, and the CEC listing matters on California work.
5) Should I use an instant start or programmed start ballast for CFL fixtures on occupancy sensors?
This one is instant start, which strikes the lamp immediately with no cathode preheat. That's the right choice for spaces where lights come on and stay on, like offices, retail floors, and warehouse aisles. In a restroom or stairwell where an occupancy sensor cycles the lights dozens of times a day, programmed start is easier on lamp cathodes and gets you longer lamp life. Pick by switching frequency, not by fixture type.
6) Can the Advance ICN3TTP40SC35I ballast be dimmed, and what do I need to dim it?
It's an electronic dimmable ballast, so the dimming happens at the ballast rather than by chopping the line. A dimmable ballast needs a compatible control system wired to it, which is a separate order line from the ballast itself. If the fixtures are staying on plain line-voltage switching, you are paying for a capability you won't use.
7) What Advance part number do I order to match an existing ballast in my building?
The manufacturer part number is ICN3TTP40SC35I. Pull the old ballast and read the label; Advance ICN-series numbering encodes lamp count and wattage, so a match on that full string means the same lamp count, wattage, voltage range and start type. A partial match is not a match.
8) What wire do I land on the Advance ICN3TTP40SC35I ballast leads?
Leads are 18 AWG solid conductor. Match with 18 AWG or the fixture's existing lamp leads and use wire nuts rated for solid conductor of that size. Solid leads take a screw-on connector cleanly but don't tolerate repeated flexing, so avoid re-terminating the same lead more than once.
9) Is the Advance ICN3TTP40SC35I ballast housing rated for heat inside an enclosed fixture?
Housing is metal, which conducts heat out of the ballast into the fixture channel rather than trapping it the way a plastic case does. Mount it in metal-to-metal contact with the channel; ballast heat is the usual cause of early failure in enclosed and recessed fixtures.
10) Is the Advance ICN3TTP40SC35I made in the USA for a Buy American job?
Country of origin is the USA. On federally funded and many state or municipal projects that carry a domestic sourcing clause, that's the line item a procurement officer needs on the submittal.
