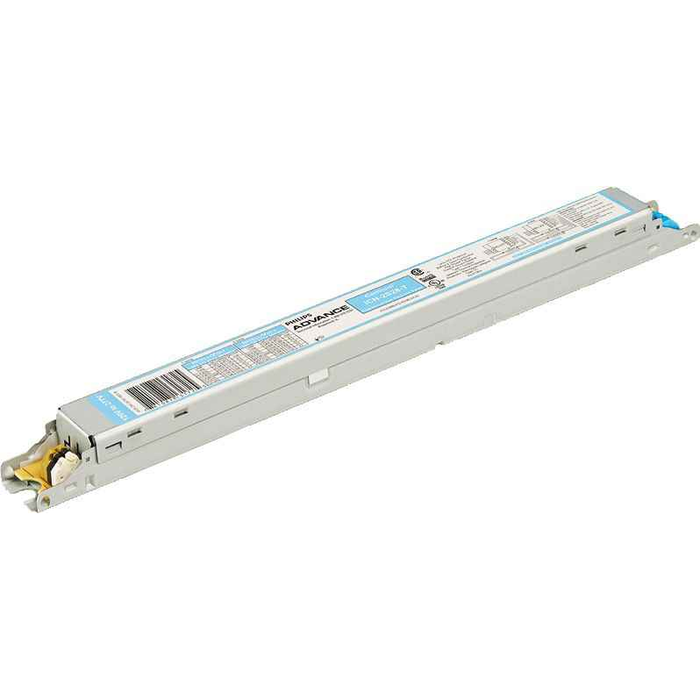

Advance Electronic Ballast 24W T5 HO 2-Lamp 120-277V Programmed Start

Advance Electronic Ballast 24W T5 HO 2-Lamp 120-277V Programmed Start

Professional Electronic Ballast for T5 High Output Fluorescent Lighting

The Advance Electronic Ballast delivers reliable performance for T5 High Output fluorescent lighting applications with 24W power rating and dual lamp operation. This professional-grade ballast operates on universal 120-277V input with programmed start technology and Class P thermal protection for enhanced safety and longevity in commercial and industrial lighting installations.

Professional Features & Benefits

• 24W Power Rating: Optimized energy consumption for efficient T5 HO lamp operation while maintaining proper light output levels.
• 2-Lamp Configuration: Supports dual T5 HO lamps for enhanced illumination coverage and lighting uniformity in professional applications.
• 120-277V Universal Input: Compatible with standard commercial voltage systems for versatile installation flexibility across various facilities.
• Programmed Start Technology: Extends lamp life through controlled ignition sequence that reduces electrode wear and improves overall system reliability.
• 0.98 Power Factor: High power factor rating ensures efficient electrical performance and reduced reactive power consumption.
• Class P Thermal Protection: Built-in thermal protection prevents overheating and provides automatic shutdown for enhanced safety and equipment protection.
• CSA and UL Certified: Meets rigorous safety standards for professional lighting installations with comprehensive third-party testing and approval.

Technical Specifications

• Ballast Factor: 1
• Country Of Origin: USA
• Dimmable: No
• Frequency Rating: 50to60 Hz
• Lamp Type: T5 HO
• Number Of Lamps: 2
• Power Factor: 0.98
• Power Rating: 24 WTT
• Product Height: 1.1598 IN
• Product Length: 14.1701 IN
• Product Weight: 1.000 Lbs
• Product Width: 1.2799 IN
• Standard: CSA certificate;UL certificate;RoHS Compliant
• Start Type: PROGRAMMED START
• Thermal Protection: CLASS P
• Voltage Rating: 120-277 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Buildings
• Retail and Shopping Centers
• Educational Facilities
• Healthcare Facilities
• Industrial and Manufacturing Plants
• Warehouse and Distribution Centers
• Government and Municipal Buildings

Why Choose Advance Quality?

Advance electronic ballasts provide dependable performance with comprehensive CSA and UL certification, Class P thermal protection, and RoHS compliance. Made in USA with high power factor efficiency and programmed start technology for extended lamp life and reliable operation in demanding commercial lighting environments.
