Advance Electronic Sign Ballas...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$224.34
$143.20

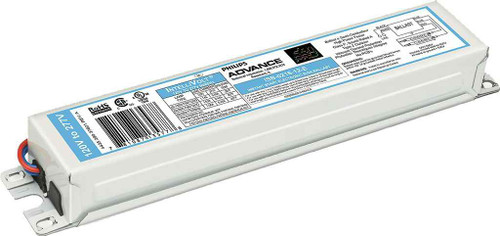

Advance Electronic Sign Ballast T12 HO 4-Lamp 120-277V Instant Start

Advance Electronic Sign Ballast T12 HO 4-Lamp 120-277V Instant Start

(No reviews yet) Write a Review

Model: ISB043214EI
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$224.34
$143.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Sign Ballast T12 HO 4-Lamp 120-277V Instant Start

Professional Electronic Sign Ballast for High Output T12 Applications

The Advance Electronic Sign Ballast delivers reliable performance for T12 high output fluorescent sign applications. This professional-grade ballast operates 4 lamps with instant start technology across 120-277V input voltage, featuring 0.98 power factor for efficient operation and compact 14.31" x 3.19" x 2.63" dimensions for versatile installation requirements.

Professional Features & Benefits

  • 4-Lamp T12 HO Capacity: Operates up to 4 high output T12 fluorescent lamps for bright, consistent sign illumination
  • 120-277V Universal Input: Compatible with standard commercial and industrial voltage systems for flexible installation
  • Instant Start Technology: Provides immediate lamp ignition without warm-up delay for reliable sign operation
  • 0.98 Power Factor: Delivers efficient power utilization and reduced energy costs in commercial applications
  • Compact Design: 14.31" length fits standard sign enclosures while providing professional performance
  • Multiple Certifications: UL and CSA certified with RoHS compliance for professional installation confidence
  • USA Manufacturing: Domestic production ensures consistent quality and reliable supply chain support

Technical Specifications

  • Country Of Origin: USA
  • Frequency Rating: 50to60 Hz
  • Lamp Type: T12 HO
  • Number Of Lamps: 4
  • Output: FIXED
  • Power Factor: 0.98
  • Product Height: 2.6300 IN
  • Product Length: 14.3100 IN
  • Product Weight: 9.960 Lbs
  • Product Width: 3.1900 IN
  • Standard: CSA certificate;UL certificate;RoHS Compliant
  • Start Type: INSTANT START
  • Voltage Rating: 120-277 V

Installation & Operation

  1. Mount the ballast in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire lamp connections according to the provided T12 HO specifications and 4-lamp capacity.
  4. Configure any available control features as supported by the instant start specifications.
  5. Test ballast operation and verify proper lamp performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to electronic ballast applications.

Professional Applications

  • Commercial Sign Illumination
  • Retail Storefront Displays
  • Industrial Facility Signage
  • Professional Office Building Signs
  • Multi-Tenant Property Signage
  • Emergency Exit and Safety Signs
  • Architectural Accent Lighting

Why Choose Advance Quality?

Advance electronic ballasts provide professional reliability with UL and CSA certifications, RoHS compliance, and USA manufacturing. The robust construction and 0.98 power factor deliver long-term performance and energy efficiency for demanding sign applications, backed by comprehensive safety listings and quality assurance.

Manufacturer Resources

Product Specs

Country Of Origin:
USA
Frequency Rating:
50to60 Hz
Lamp Type:
T12 HO
Number Of Lamps:
4
Output:
FIXED
Power Factor:
0.98
Product Height:
2.6300 IN
Product Length:
14.3100 IN
Product Weight:
9.960 Lbs
Product Width:
3.1900 IN
Standard:
CSA certificate;UL certificate;RoHS Compliant
Start Type:
INSTANT START
Voltage Rating:
120-277 V
Department:
Electrical

Advance ISB043214EI – Frequently Asked Questions

1) Will the Advance ISB043214EI run fewer than 4 T12 HO lamps, or does it need all four?
The ISB043214EI is a 1-to-4 lamp sign ballast for T12 high output lamps, so it will run one, two, three, or four lamps. That flexibility is normal on instant start sign ballasts and it is what lets one part number cover a range of cabinet lengths. It is a fixed output ballast, so there is no dimming or step control.
2) Can I use the Advance sign ballast on both 120V and 277V without ordering a different part?
One part covers it. The ISB043214EI accepts 120 through 277 volts, 50 to 60 Hz, so the same ballast works on a 120V retail storefront circuit and on a 277V commercial lighting panel. Wire it to whichever supply the sign is fed from, no voltage-specific model to pick.
3) Will this Advance ballast fit inside my sign cabinet raceway?
Case dimensions are 14.31 inches long, 3.19 inches wide and 2.63 inches high, and it weighs 9.96 pounds. Measure your raceway depth against the 2.63 inch height and leave room at the ends for conductor entry and a service loop. The near-10-pound weight matters on a pole sign or a remote-mount box, so fasten it to structure, not just to a sheet metal back panel.
4) Is this the right ballast for T8 or T12 rapid start lamps?
No. The ISB043214EI is built for T12 high output lamps only, and it is an instant start ballast. T12 HO lamps use recessed double contact sockets rather than the bipin sockets on standard T8 or T12 lamps, so the lamps are not interchangeable in the fixture either. If your sign carries standard T8 lamps or rapid start HO lamps, you need a different ballast type.
5) Does this Advance sign ballast carry UL and CSA listings for a permanent outdoor sign install?
It holds both a UL certificate and a CSA certificate, and it is RoHS compliant. That covers the AHJ question on US and Canadian jobs. The ballast itself is not weather rated on its own, so it still has to live inside the sign cabinet or a suitable enclosure.
6) What does the 0.98 power factor mean for sizing the circuit on a multi-tenant sign?
A 0.98 power factor is high power factor, meaning nearly all the current drawn does useful work. For a property manager or electrician loading several tenant signs onto one 120-277V circuit, that keeps line current close to the real wattage instead of inflating it, so you fit more ballasts per breaker than you would with a low power factor magnetic unit.
7) Do the lamps in my sign light instantly in cold weather with this ballast?
It is an instant start ballast, so lamps strike immediately with no cathode preheat delay. That is what you want on a sign that switches with a photocell or timer. Keep in mind instant start is harder on lamp cathodes where the sign cycles on and off frequently, so it suits dusk-to-dawn sign duty better than rapid switching.
8) Is the Advance ISB043214EI made in the USA for a Buy American sign job?
Country of origin is the USA on the ISB043214EI. If your specification calls for domestic manufacture on a government or institutional sign project, that is the documentation point to cite, along with its UL and CSA certificates.
