Emtek Emtek 1132 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage EMTEK-1132

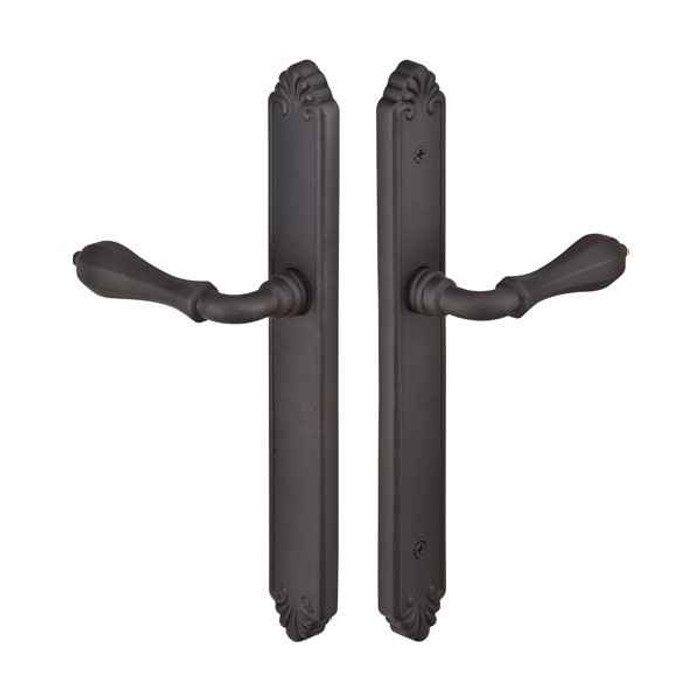

Emtek 1132 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1132-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1132 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Tuscany
Theme:
Tuscany
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1132
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1132-MB – Frequently Asked Questions

1) Does the Emtek 1132 multi point trim include the multi point mortise lock body?
No. The Emtek 1132 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need to already have a lock body in the door or order one alongside it.
2) Which patio door brands is this Emtek Door Config #1 trim set up for?
Door Configuration #1 references multi point lock bodies from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior. The center-to-center spacing is 3-5/8 inches with the cylinder position below the handle, so match those against the gear already in your door before ordering.
3) Does the Emtek 1132 lock, or is it just handles?
It is a non-keyed passage trim, so there is no cylinder and no key. The handles operate the multi point gear to throw and retract the latching points, but there is no keyed security at the trim itself. If you need a key on the outside, choose a keyed multi point trim instead.
4) What do I have to specify when ordering the Emtek 1132 Tuscany trim?
Four choices. Finish, in Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And the door thickness, which is an open text entry.
5) Is handing important on an Emtek multi point passage trim, or is it reversible?
Handing is a required selection, right hand or left hand, so the trim is not field reversible. Determine the swing from the correct side of the door before you place the order.
6) Can I match this Tuscany bronze trim to other bronze levers in the house?
It can be ordered with any Emtek Lost Wax Cast Bronze lever in the Tuscany Bronze collection, so patio door trim and interior levers read the same. Plates are lost wax cast bronze, 1-1/2 by 11-1/8 inches, in Flat Black Bronze or Medium Bronze.
7) Will the Emtek 1132 handles sag over time like older patio door trim?
Each Emtek multi point lock trim now ships with a Spring Assist function that returns the lever to neutral, which is what stops handles drooping after heavy use. That matters on a patio door that gets cycled daily.
8) Is this Emtek multi point trim suitable for a commercial entrance?
It is classed as residential hardware, intended for swinging patio doors in a home. For a commercial opening with traffic and code requirements, look at commercial-grade entry hardware rather than this trim.
9) What latch faceplate shape does the Emtek 1132 use, round or square corner?
Both are covered: the latch faceplate is available round corner or square corner, so it can follow whatever prep is already cut into the door edge.
