Emtek 1432 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

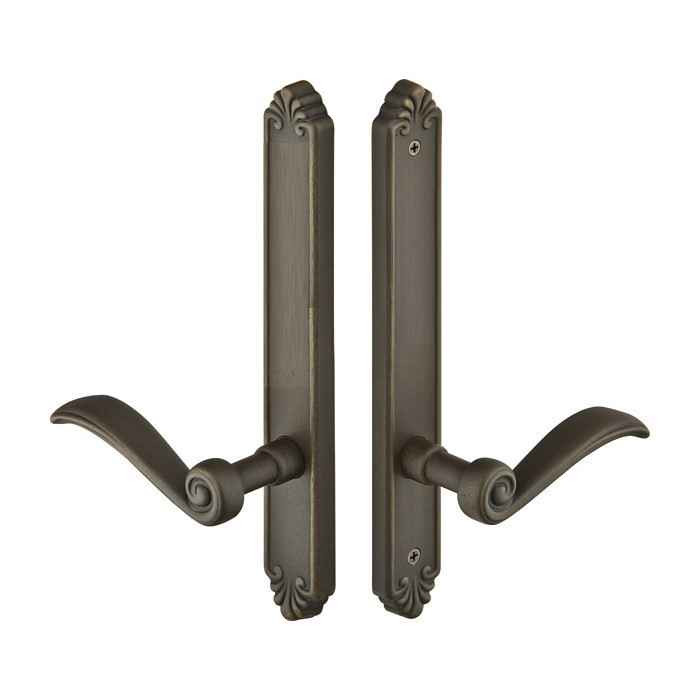

Emtek Emtek 1432 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage EMTEK-1432

Emtek 1432 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1432-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1432 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Tuscany
Theme:
Tuscany
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1432
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1432-MB – Frequently Asked Questions

1) Does the Emtek 1432 Tuscany multi point trim include the multi point lock itself?
No. The Emtek 1432 is trim only, so you get the plates and handles. The multi point mortise lock box is a separate purchase, and the set also includes Emtek's spring assist feature that returns the lever to neutral so the handle doesn't sag over time. Order the lock body to match your door manufacturer's existing multi point gear before you start.
2) What does Door Configuration #4 mean when ordering Emtek multi point trim?
Configuration refers to the layout of the handle and cylinder on the plate, and the 1432 is a #4 config: non-keyed passage with the cylinder position above the handle. Because it is non-keyed, there is no cylinder supplied with it. If your existing patio door trim has the key below the handle or is keyed, a #4 set is the wrong configuration.
3) Which patio door brands does the Emtek 1432 multi point trim fit?
Emtek lists this trim against Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield multi point doors. Match the center-to-center dimension of 3-5/8 inches on your existing plate to confirm it lines up with your gear.
4) Will Emtek 1432 trim work on a 1-3/8 inch swinging patio door?
Yes. The 1432 covers doors from 1-3/8 inch through 1-3/4 inch, which spans both the older interior thickness and standard 1-3/4 inch patio doors. There is a door thickness field on the order so the spindle and screw pack can be matched to your slab.
5) Do I have to specify handing for Emtek Tuscany multi point trim?
Yes, handing is required. The 1432 is ordered right hand or left hand, so stand outside the door: if the hinges are on your right it is right hand. Getting it wrong on a multi point set means the lever and plate orientation will not match the door.
6) Which levers can I use with the Emtek 1432 Tuscany bronze plates?
Any of Emtek's Lost Wax Cast Bronze Tuscany levers will pair with the 1432 plates. The lever is a required choice at order: Medici, Napoli, Octagon or Padua.
7) How big are the Emtek 1432 escutcheon plates, and will they cover my old trim?
The Tuscany plates measure 1-1/2 inches by 11-1/8 inches. That is a narrow, tall plate, so on a patio door stile it will cover a typical multi point prep but will not hide wider or shorter plates left by different trim. Check the outline of the old plate against those dimensions before you pull it.
8) Is the Emtek 1432 suitable for a commercial entry?
It is a residential product. Emtek classes this Tuscany trim as residential swinging patio door hardware, so for a commercial opening with cycle and code demands you want a commercial-grade mortise or cylindrical lockset instead.
