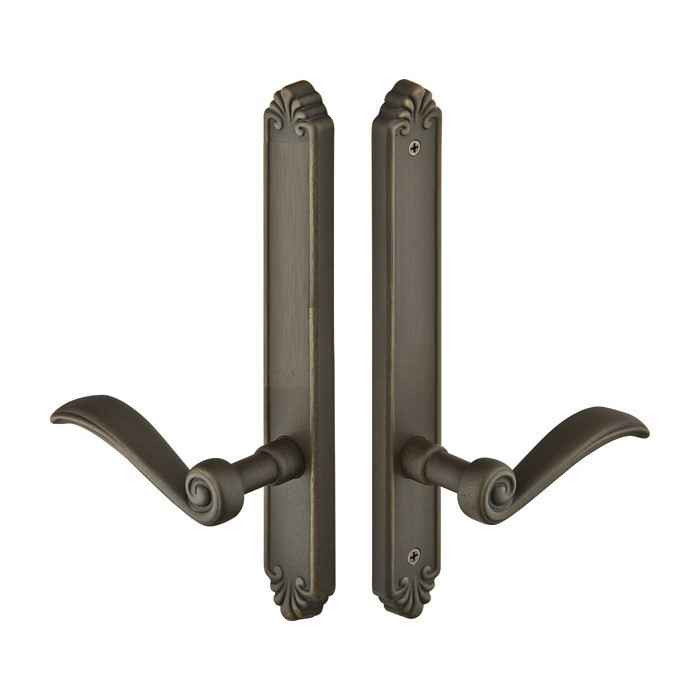

Emtek Emtek 1332 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage EMTEK-1332

Emtek 1332 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1332-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1332 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Passage

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1332
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1332-MB – Frequently Asked Questions

1) Does the Emtek 1332 multi point trim include the mortise lock body?
No. The Emtek 1332 is trim only: plates and handles. The multi point mortise lock box is not included, so you need the lock body already in the door or ordered separately. Handing (right or left) and lever style are chosen when you order the trim.
2) What door thickness and bore does the Emtek 1332 patio door trim need?
It fits doors 1-3/8 inch to 1-3/4 inch thick with a 2-1/8 inch cross bore, and the backset adjusts between 2-3/8 inch and 2-3/4 inch. The handle center-to-center on the plate is 4-1/8 inches. A door thickness field is offered at order time if your slab needs to be called out.
3) Is the Emtek 1332 keyed, and where does the cylinder sit?
The 1332 is a non-keyed passage trim, so there is no cylinder and no locking from the trim itself. The configuration #3 plate layout places the cylinder position above the handle, which is what a keyed version of the same plate would use, but on this passage version it is not keyed. Use it on the inactive or passage leaf of a swinging patio pair.
4) Will this Emtek trim fit an Andersen swinging patio door?
Andersen is the referenced door manufacturer for this trim, and it is built for swinging patio door hardware in Emtek's door configuration #3 hole pattern. Confirm your existing multi point lock body matches config #3 (handle and cylinder spacing of 4-1/8 inches center-to-center) before ordering, because the trim is drilled to that layout.
5) What has to be specified when ordering the Emtek 1332 trim?
Four choices. Finish comes in Flat Black Bronze (FB) or Medium Bronze (MB). Lever style is required and offers Medici (MD), Napoli (NA), Octagon (OCL), or Padua (PD). Handing is required, right or left. Door thickness can be entered as a note. Latch faceplate is available round or square corner.
6) Do the levers on this Emtek bronze trim sag over time?
Each of these multi point trims now ships with a spring assist that returns the lever to neutral and prevents the droop you get on heavy solid handles. That matters on a patio door that gets daily use.
7) Will this Tuscany bronze trim match my other Emtek bronze door hardware?
The plates are lost wax cast bronze in the Tuscany Bronze collection, sized 1-1/2 by 11-1/8 inches, and they can be ordered with any Tuscany lost wax cast bronze lever. Finish choices are Flat Black Bronze and Medium Bronze, so pair it to whichever of those two your existing Tuscany entry sets already use. Cast bronze has natural surface variation, which is expected in the finish.
8) Is the Emtek 1332 suitable for a commercial opening?
It is classified residential hardware, intended for swinging patio doors in homes. For a commercial entry with traffic and code requirements, look at a Grade 1 commercial mortise lock and trim instead rather than a residential multi point trim.
9) Is the Emtek 1332 an electronic or smart lock trim?
No, it is purely mechanical trim with no electronics and no keyway. If you want keyed security on the same plate style, you need a keyed version of the multi point trim rather than this passage one.
