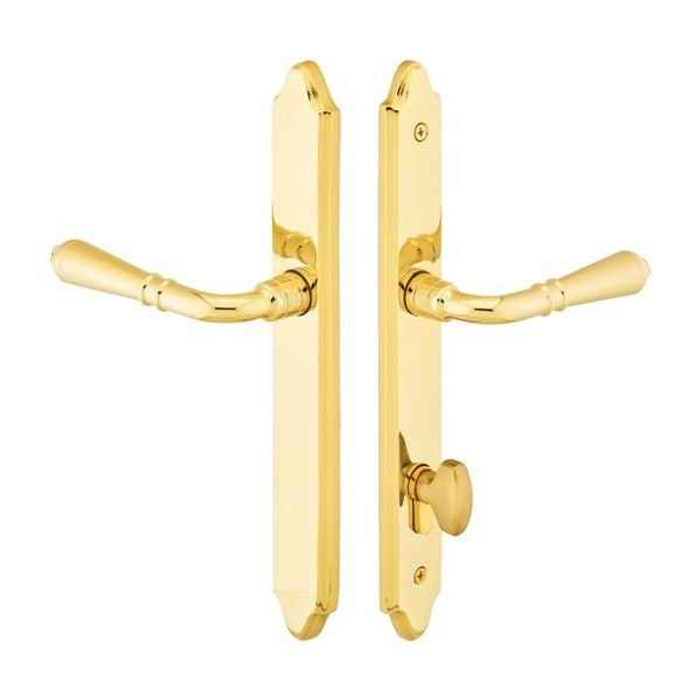

Emtek Emtek 1173 Multi Point Lock Trim (Door Config #1) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1173

Emtek 1173 Multi Point Lock Trim (Door Config #1) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1173-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1173 Multi Point Lock Trim (Door Config #1) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1173
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1173-US15 – Frequently Asked Questions

1) Does the Emtek 1173 Concord trim include the multi point lock itself?
No. The Emtek 1173 Concord set is trim only: plates and handles. The multi point mortise lock box is not included, so you need a working lock body already in the door or ordered separately.
2) Which patio door brands does Emtek Configuration #1 multi point trim reference?
Configuration #1 trim is referenced to Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior doors. The deciding number is the 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder sitting below the handle. Measure your existing door prep against that before ordering.
3) Is the Emtek 1173 keyed on the outside?
It isn't. The 1173 is the non-keyed version, with an American style thumbturn on the interior instead of a key cylinder. If you need to lock the patio door from outside with a key, choose a keyed Configuration #1 trim instead.
4) What do I have to specify when ordering Emtek 1173 multi point trim?
Three things beyond the finish: lever style, handing, and your door thickness. Handing is right or left hand and is required. Lever choice is open across the full Emtek brass lever range, from L-Square, T-Bar and R-Bar bar levers through Athena, Luzern, Milano, Rope, Rustic and the rest. Door thickness is a free-text entry so the spindle and screws come sized to your door.
5) How big are the Concord plates on the Emtek 1173?
The Concord plates measure 1-1/2 x 11 inches, a narrow rectangular escutcheon that suits the slim stile of a swinging patio door. Solid brass plates, so they take Emtek's brass finishes.
6) What finishes does the Emtek 1173 Concord trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Unlacquered brass will patina over time; the lifetime polished brass will not.
7) Will this fix the sagging lever on my patio door?
Yes, that is what the spring assist does. Every Emtek multi point lock trim set now ships with a spring assist that returns the lever to horizontal and stops the droop you get on older patio door handles. It is trim only though, so a worn lock body still needs replacing.
8) Is Emtek 1173 trim suitable for a commercial entrance?
It is classified residential. The 1173 is swinging patio door hardware for homes, not a graded commercial lockset. For a commercial opening you want a graded mortise or cylindrical lock, not multi point patio trim.
9) Does the Emtek 1173 need power or wiring?
No. It is a fully mechanical trim set, no electronics, no wiring, no batteries. Locking is by the interior thumbturn driving the multi point lock body.
