Emtek Emtek 1573 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1573

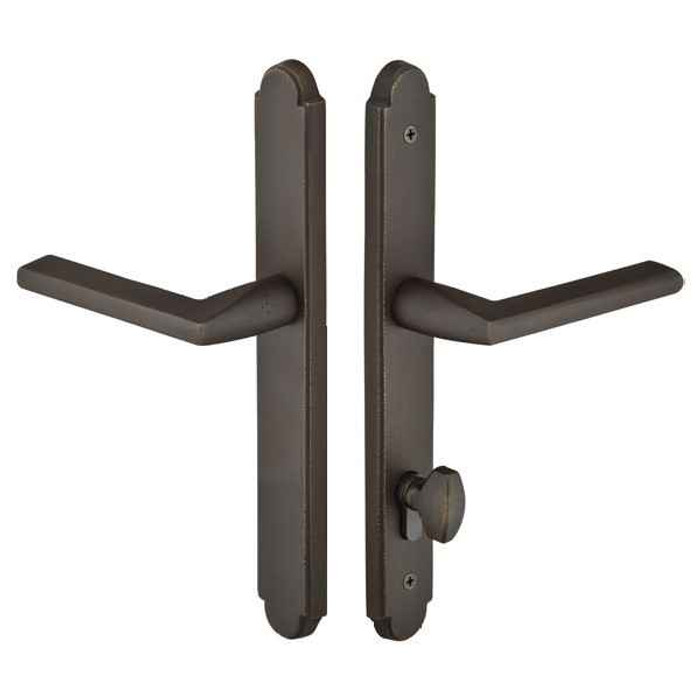

Emtek 1573 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1573-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1573 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1573
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1573-US15 – Frequently Asked Questions

1) Does the Emtek 1573 multi point trim include the multi point lock body, or is it handles only?
Trim only. The Emtek 1573 set includes the plates and handles, and the multi point mortise lock box is not included. You order the lock body separately, matched to your door manufacturer's prep. If you already have a working multi point lock in a patio door and just want new handles and plates, this is the right kind of part; if the lock itself is broken, trim won't fix it.
2) How do I know if Door Configuration #5 is the right Emtek multi point trim for my patio door?
Configuration #5 on the Emtek 1573 means a Euro profile cylinder sitting below the handle, with a non-keyed American style thumbturn on the inside. Pull the existing interior escutcheon and look at where the cylinder hole falls relative to the lever: below the lever, with a thumbturn inside rather than a second keyway, is config #5. The plate is drilled for that layout, so a lock prepped with the cylinder above the handle or with a keyed interior will not line up.
3) What center-to-center spacing does the Emtek Concord multi point trim use?
3-5/8 inches from the center of the handle spindle to the center of the cylinder hole. That measurement is the one that decides fit. Measure your existing plate the same way before ordering, because a multi point lock prepped at any other spacing will leave the cylinder off the hole even though the plate itself covers the door.
4) What do I have to specify when ordering the Emtek 1573 trim?
Three things beyond finish: lever style, handing, and door thickness. Handing is right hand or left hand and is required, so stand outside the door and note which side the hinges are on. Door thickness is entered as a measurement, since a swinging patio door slab varies. Lever style is a required choice from 51 designs, and any brass lever in the range can be ordered with these plates.
5) Does the Emtek Concord trim take a Euro profile cylinder or a standard American mortise cylinder?
Euro profile. The plate is cut for a Euro cylinder positioned below the handle, which is what multi point locks on swinging patio doors use. A standard American mortise cylinder will not fit the opening, so buy a Euro profile cylinder in a length matched to your door thickness and lock body. The interior side takes no cylinder at all on this one, it uses a thumbturn.
6) Should I get keyed multi point trim or the thumbturn version for a back patio door?
The 1573 is the non-keyed configuration: keyed cylinder outside, thumbturn inside. That is the normal choice for a residential patio or back door, where you want to throw the multi point from inside without hunting for a key. Choose keyed-both-sides trim instead only where code or insurance requires the inside to be key operated, or where there is glass beside the lock and you do not want a turn reachable through it.
7) Will the Emtek 1573 Concord plate cover the holes my old patio door handle left?
The Concord plate measures 1-1/2 by 11 inches. That is a narrow, tall escutcheon, so it covers a vertical run of prep but very little to the sides. If your previous trim had a wider plate, the old screw holes or finish shadow may sit outside 1-1/2 inches and show. Measure the existing plate footprint before pulling it off.
8) Is this Emtek patio door trim solid brass, and is it rated for commercial use?
Solid brass plates and levers, listed as residential. For a house, a condo, or multi-family unit entry patio doors it is what the product is built for. On a high traffic commercial opening, look at commercial grade hardware instead, since Emtek classifies the 1573 as residential.
9) What finishes does the Emtek 1573 Concord multi point trim come in, and will it match my other Emtek door hardware?
Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Those are Emtek's standard brass-collection finish codes, so a US15 patio trim matches US15 knobs and levers elsewhere in the house. Unlacquered Brass is the exception worth knowing about: it has no clear coat and will patina with handling, so it will not stay matched to a lacquered polished brass piece.
10) My patio door lever droops. Does new Emtek multi point trim fix a sagging handle?
It does, if the sag is in the trim rather than the lock body. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral and stops the handle from drooping. A lever that hangs low is usually a tired spring cassette in the old escutcheon, which is exactly what the spring assist replaces. If instead the lever feels gritty or won't retract the hooks and rollers, the problem is in the multi point lock body and trim will not solve it.
11) Is the Emtek 1573 multi point trim electronic or does it work with a smart lock?
Purely mechanical. The 1573 is non-electronic trim with a keyed Euro cylinder outside and a thumbturn inside, no wiring, no motor, no battery. If you want keypad or app control on a multi point patio door, this is not the trim to build that on.
12) Can I order Emtek multi point trim for a pair of French doors and have both sides match?
Yes, order two sets. Handing is a required selection per set, right hand or left hand, so a French door pair takes one of each with the same Concord plate, finish, and lever style. Only the active leaf carries the multi point lock; the inactive leaf typically takes a dummy or surface bolt arrangement rather than a second lock trim.
