Emtek 1673 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

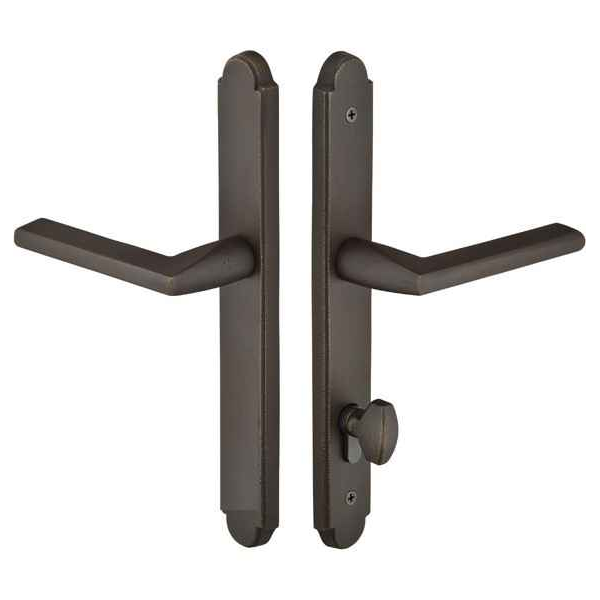

Emtek 1673 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

Emtek 1673 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1673-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1673 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1673
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1673-US15 – Frequently Asked Questions

1) Does the Emtek 1673 multi point trim include the multi point lock itself?
No. The 1673 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the gearbox and the trim to complete a swinging patio door.
2) What is the center-to-center spacing on the Emtek Concord multi point trim, and will it line up with my door prep?
Center to center is 3-5/8 inches, with the cylinder position below the handle. That spacing plus Door Configuration #6 is what has to match your existing gearbox prep. The plates themselves are 1-1/2 by 11 inches.
3) Which patio door brands does the Emtek 1673 Concord trim reference for fit?
Emtek lists Milgard and Pella as reference door manufacturers for this configuration. Confirm your door is prepped to Configuration #6 with 3-5/8 inch center to center before ordering.
4) Is the Emtek 1673 keyed, and what operates it from inside?
Non-keyed. The inside gets an American style thumbturn, so there is no exterior cylinder in this trim set. If you want key access from outside on the same Concord plate, you need the keyed version instead of the 1673.
5) Do I have to specify handing when ordering the Emtek Concord multi point trim?
Yes, handing is required: right hand or left hand. You also pick a lever style, and you can enter your door thickness, which matters on patio doors since spindle and screw length follow the panel thickness.
6) Can I choose which lever goes on the Emtek 1673 trim?
Yes. It takes any Emtek brass lever, and the selection runs about fifty styles, from the L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional shapes like Cortina, Milano, Merrimack, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered.
7) What finishes does the Emtek Concord multi point trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Plates and levers are solid brass, so if you are matching other Emtek brass trim in the house the US codes will carry across.
8) Is this Emtek multi point trim suitable for a commercial entrance?
It is classified residential. The 1673 is swinging patio door hardware for homes, non-electronic, with a thumbturn inside. For a commercial opening you want a Grade 1 mortise or exit device instead.
9) Will the Emtek 1673 levers sag over time?
Each Emtek multi point trim set now ships with a spring assist that returns the lever to neutral, which is what stops the handle drooping on a heavy patio panel.
