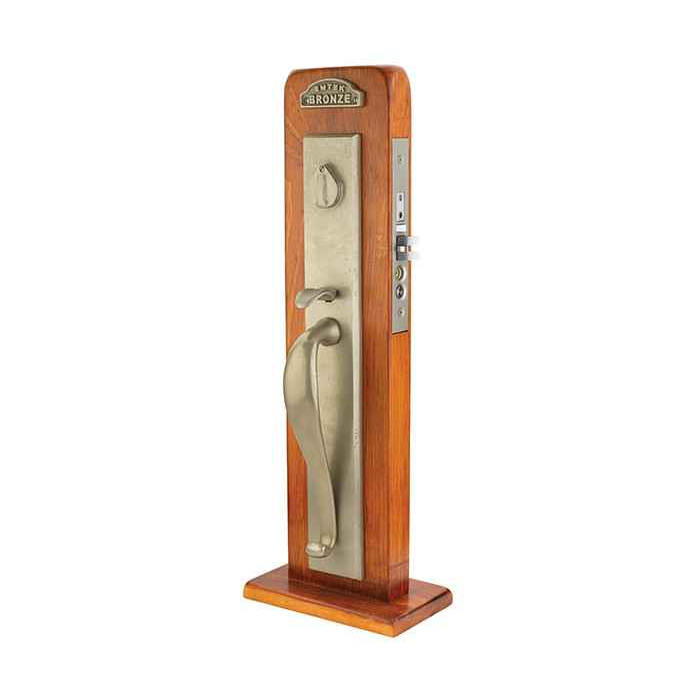

Emtek 3026 Rectangular Full Length Sandcast Bronze Mortise Entrance Handleset - Dummy

Dummy function, so there is no latch, no cylinder and no working mechanism behind it. The 3026 Rectangular sandcast bronze handleset is a surface-mounted pull with a fixed inside knob or lever, used on the inactive leaf of a pair of doors, on a French door slab that is held by a separate flush bolt or ball catch, or on a closet or pantry door that does not need to latch. If the door has to latch or lock, you need the keyed or entrance version of the set instead.

Three things: the finish, the hand, and the inside trim. Finishes are Flat Black Bronze, Medium Bronze and Tumbled White Bronze, each offered in LH and RH. The inside knob or lever is a required selection with 25 sandcast bronze styles, ten levers (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and fifteen knobs including Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. If the door is thicker than standard, note the thickness in the door thickness field. It ships as a complete set, outside and inside trim together.

The plate is drilled 5-1/2 inches center to center between the grip and the lower trim, so it lines up with an existing set only if yours shares that spacing. Emtek's own mortise entrance handlesets use standard mortise door prep to ANSI A115.1, and the 3026 is a full length plate, which gives you some room to hide older screw holes but not a mismatched bore layout. Measure the CTC on the door before ordering.

No. The Emtek 3026 is non-keyed dummy function, so it mounts as a pull with fixed trim and takes no cylinder. Handlesets that do accept a key include the Kwikset 687AMD Amador single cylinder with SmartKey, a Grade 3 handleset for 1-3/4 inch doors, and the Weslock 1411 Traditionale Colonial with Eleganti knob, a single cylinder keyed entry for doors 1-3/4 inch to 2-1/4 inch. Buyers searching the 3026 for a front entry door usually want the keyed version of the same style rather than the dummy.

The Emtek 3026 is dummy function, so it is the inactive-leaf half of a double door and provides no latching. On the active leaf, a keyed entrance handleset is needed. The Baldwin Estates 6542 Tremont is available in single cylinder and double cylinder entry mortise trim for 1-3/4 inch doors, which keeps the active leaf on a mortise case to match the dummy prep on the inactive one. Where a bored prep is acceptable on the active leaf, the Schlage Residential F60 Addison with Accent lever is a Grade 2 keyed entry handleset for doors 1-3/8 inch to 1-3/4 inch.

The Weslock 2815 Hillcrest handleset with New Heaven lever is a dummy-function handleset covering doors 1-3/8 inch to 2 inch thick, so it suits an opening where the door has not been prepped for a mortise case. The Emtek 3026 is a dummy mortise handleset in sandcast bronze, so it still uses the standard mortise pocket even though it does not latch. Where the door is already mortised, the 3026 keeps that prep filled; where it is a flat slab or an inactive door with no pocket, the Weslock 2815 is the one to specify.

A dummy like the Emtek 3026 is fixed trim and does not latch at all. Where the door needs to stay closed but does not need a key, the Schlage Residential JE285 Barcelona style handleset with Seville lever is a Grade 2 non-keyed entry handleset for doors 1-3/8 inch to 1-3/4 inch. That is the usual choice for a vestibule or a screened porch door that swings shut and holds. Choose the 3026 only where the leaf is held by other means and the handleset is there to pull and to match.

It is a residential handleset, sold for houses, condo entries and multi-family unit doors rather than commercial openings. For a commercial corridor or a high-traffic institutional door you want a graded commercial lockset, not a sandcast residential handleset.

If your slab is thinner or thicker than the 1-3/4 inch standard, look at the Weslock 2815 Hillcrest dummy handleset with New Heaven lever or the Weslock 6695 Belmont dummy handleset with Impresa knob, both listed for 1-3/8 to 2 inch doors. Neither is sandcast bronze, so they will not match an Emtek bronze suite, but they are dummy function and they cover a broader thickness range without a special order.

It ships complete. Outside plate with grip and the inside trim you selected are in the one box, so there is no separate knob or lever order and no separate rose to chase. The inside style is chosen from the sandcast bronze knob and lever range at the time you order.

Both are dummy handlesets, so neither latches or locks. The Weslock 6695 Belmont pairs with an Impresa knob and fits doors 1-3/8 inch to 2 inch thick. The Emtek 3026 is sandcast bronze with a rectangular full-length plate on a 5-1/2 inch center-to-center handle, and the inside knob or lever is chosen separately from the sandcast bronze range, including the Butte knob and the Durango lever. The Emtek route lets the inside trim be matched to other sandcast bronze hardware in the same house; the Weslock arrives as a fixed knob pairing.

The Emtek 3026 is a non-electronic mortise handleset, so there is no keypad or credential option on it. Handlesets built around electronics include the Kwikset 815SCEHFL San Clemente with Halifax lever, which carries a contemporary SmartCode keypad electronic deadbolt with RCAL latch and RCS strike for 1-3/4 inch doors, and the Yale Real Living BYRD226CBARX Assure Lock, a Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset for doors 1-3/4 inch to 2-1/4 inch. A standalone version without network connection is the Yale BYRD226NRRX with the same Ridgefield handleset and thickness range.

Yes. The Emtek 3026 is ordered left hand or right hand, and handing is required on all mortise locks. Several bored-prep handlesets in the same size class are supplied without a handed order code, including the Deltana 810871 Montego for doors 1-3/8 inch to 2 inch and the Pamex FS7P31 Lexington in satin nickel for 1-3/8 inch to 1-3/4 inch doors. If the handing of the opening is not confirmed at order time, that difference is what decides which product goes on the purchase order.

Not directly. The Baldwin Wesley handleset is entrance function, offered with an Alcott knob or a Carnaby knob as the inside trim. The Emtek 3026 is dummy function and provides no latch or bolt. The Wesley pairings are the right call where the opening needs to secure; the 3026 is for the leaf that does not. Both follow the same pattern of choosing the interior knob at order time, so a house standardizing on one interior style can do that either way.

The Emtek 3026 takes a door thickness entry at order time, so a thicker door is called out with the order rather than requiring a different product. If a bored-prep set is preferred on a thick door, the Weslock 1411 Traditionale Colonial with Eleganti knob covers 1-3/4 inch to 2-1/4 inch, and the Yale BYRD256 CBARX Assure key free touchscreen deadbolt with Ridgefield passage handleset covers the same 1-3/4 inch to 2-1/4 inch band. Confirm the measured thickness at the lock stile, not the nominal slab, before ordering either.

The Emtek 3026 is sandcast bronze throughout and offered in Flat Black Bronze, Medium Bronze and Tumbled White Bronze. Solid brass handlesets of similar traditional character include the Deltana 803871B Hanover, the Deltana 815871 St. Ann and the Deltana 825871 Kingston, all entry function. The material difference matters for exterior weathering: sandcast bronze is a cast finish that patinas as a body, while the brass sets carry a plated or lacquered surface, so specify by which look the rest of the exterior hardware already carries.

They solve different openings. The Schlage Residential JI18/19 is an interconnected passage lock with a keyed deadbolt and Torino lever, Grade 2, for doors 1-3/8 inch to 1-3/4 inch, where one motion retracts latch and bolt together. The Emtek 3026 is a full-length mortise handleset in dummy function on a 5-1/2 inch center-to-center handle, with no latch, no bolt and no cylinder. Specify the interconnected lock where egress in a single motion is the requirement, and the 3026 where the leaf is stationary.
