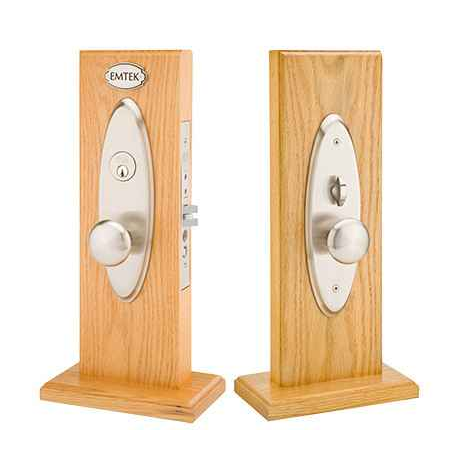

Emtek 3102 Memphis Mortise Entrance Lockset - Dummy

Yes. Handing is required on all Emtek mortise locks, and the 3102 Memphis set is ordered as either left hand (LH) or right hand (RH). Stand outside the door: if the hinges are on your left it's left hand. Ordering the wrong hand means the escutcheon and trim orientation won't be right for the opening.

Standard build is for a 1-3/4 inch door, with a 2-1/2 inch or 2-3/4 inch backset. Thicker doors are handled by specifying the actual thickness when you order (there's a door thickness field on the order). The door prep is standard mortise per ANSI A115.1, so an existing mortise pocket cut to that standard takes it.

The Emtek 3102 Memphis is a residential brass dummy mortise set. For a commercial specification, the Schlage L0170 is a Grade 1 non-keyed mortise lever trim in dummy function from the L Series, rated heavy duty for 1-3/4 inch doors. The Emtek 3102 is offered in decorative finishes like Unlacquered Brass (US3NL) and French Antique (US7) with a wide choice of knob and lever trim, while the Schlage L0170 is a half dummy trim in the L Series lever family.

The Emtek 3102 Memphis is a dummy function set, so it is non-keyed and does not latch. If the door has to latch, a passage mortise lock is the substitute: the Schlage PM010 is a Grade 1 non-keyed passage latch mortise lock for 1-3/4 inch doors, and the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating. Hager also offers passage in the 3800 Series, with the 3810S using rose trim and the 3810E using an escutcheon, both on a 2-3/4 inch backset.

The Emtek 3102 Memphis is a residential dummy set with no keyed function, so it will not serve a corridor opening. Institutional choices include the Corbin Russwin ML2003 Grade 1 mortise classroom lockset for 1-3/4 inch doors, the Cal-Royal NM8070 Grade 1 classroom mortise lockset with auxiliary deadlatch, the Cal-Royal NM8050 Grade 1 office/entrance mortise lockset, and the Accentra 8805FL Grade 1 storeroom mortise lock with Arcadia lever.

Yes, and it's a required choice. The inside trim can be built with any Emtek brass knob or lever, a crystal or porcelain knob, or one of the contemporary bar and conical styles, from Stuttgart and Helios levers through Ace and Spoke knobs to L-Bar, T-Bar and R-Bar options in faceted, hammered, knurled, Tribeca and white marble, plus classic choices like Egg, Providence, Victoria, Windsor Crystal and Georgetown Crystal. It ships as a complete set with the trim you pick.

Emtek classifies it as residential brass hardware, so for a school, hospital or high-traffic commercial corridor you want a Grade 1 commercial mortise instead. For a dummy application specifically, the Schlage L0170 half dummy trim is a Grade 1 L Series option. The Emtek is the right call on high-end residential, multi-family unit doors and hospitality interiors where the look drives the spec.

Order the keyed or entrance version of the same Emtek Memphis mortise set in the identical finish and trim style, and the two leaves will match. Emtek's keyed mortise entrance locks use a Schlage C keyway, so they key into an existing Schlage C system. If you need a commercial entrance lock body instead, the Baldwin 6301 entry/apartment mortise body shares the 2-1/2 inch backset and covers 1-3/4 inch and thicker doors.

This one uses a full mortise pocket in the door edge, prepped to ANSI A115.1 with a 2-1/2 or 2-3/4 inch backset, so it reads exactly like the working mortise locks on the rest of the openings, same escutcheon, same sight lines. A surface dummy just screws to the face of the door with no pocket. Choose the mortise version when the neighboring doors carry real mortise hardware and you don't want a mismatch on the inactive leaf.

Emtek lists a UL 180 minute fire rating on the Memphis mortise entrance lockset. Keep in mind a dummy set does not latch, so on a fire rated opening the leaf it sits on still needs a latching or flush bolt arrangement that satisfies the door assembly listing. Confirm the full assembly against your AHJ before installing on a rated pair.

The Emtek 3102 Memphis runs a 2-1/2 inch or 2-3/4 inch backset in a dummy, non-keyed configuration. For a keyed decorative set at the same 2-1/2 inch backset, Baldwin offers the 6301 entry/apartment mortise lock body in knob by knob and lever by lever versions for doors 1-3/4 inch and over, and the 6310 entry/storeroom body in knob by knob for doors 1-3/8 inch and over.

No. Both are dummy function, but the Falcon MESC600DT is dummy escutcheon lever trim made for M9900 Series exit devices, so it mounts to an exit device rather than to a mortise lock prep. The Emtek 3102 Memphis is a brass mortise entrance set in dummy function using the standard mortise ANSI A115.1 door prep and requiring left or right handing.

The Emtek 3102 Memphis is dummy function with no latch or privacy locking. For bed and bath, the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset for doors 1-3/4 to 2 inch.

The Emtek 3102 Memphis is a mechanical, non-electronic brass mortise set in dummy function. For keypad or credential access on a mortise prep, the Alarm Lock DL3500CR is a Grade 1 electronic mortise lock with 300 user codes in classroom function for doors 1-5/8 to 1-7/8 inch, the Schlage CO-100 is a Grade 1 standalone electronic mortise lock with keypad reader in privacy function for 1-3/4 inch doors, and the TownSteel FME-2000 is a Grade 1 classroom mortise lockset with RFID for 1-3/4 inch doors.

The Emtek 3102 Memphis is a complete dummy entrance set with no keyed cylinder. If a standalone mortise deadbolt is what the opening needs, the Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset, and the Kaba Ilco 185 Series mortise lock is a deadbolt function that requires no handing, unlike the Emtek 3102 which requires left or right handing to be specified.

Eight: Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19) and Polished Chrome (US26). Each is available in both left and right hand. Unlacquered brass will patina over time, so pick it only if you want a living finish across the whole opening.

No wiring, no power, no electronics. It is a purely mechanical brass dummy set. If you need access control on the opening, look at electronic mortise locks such as the Dormakaba E-Plex 2066 pushbutton keyless mortise or the Schlage CO-100 standalone keypad mortise lock.

Brass, both in material and substrate, and it belongs to Emtek's Brass collection in the American Classic style. That matters for finishes like Unlacquered Brass (US3NL), which develops its patina on the base metal rather than wearing through a plating.
