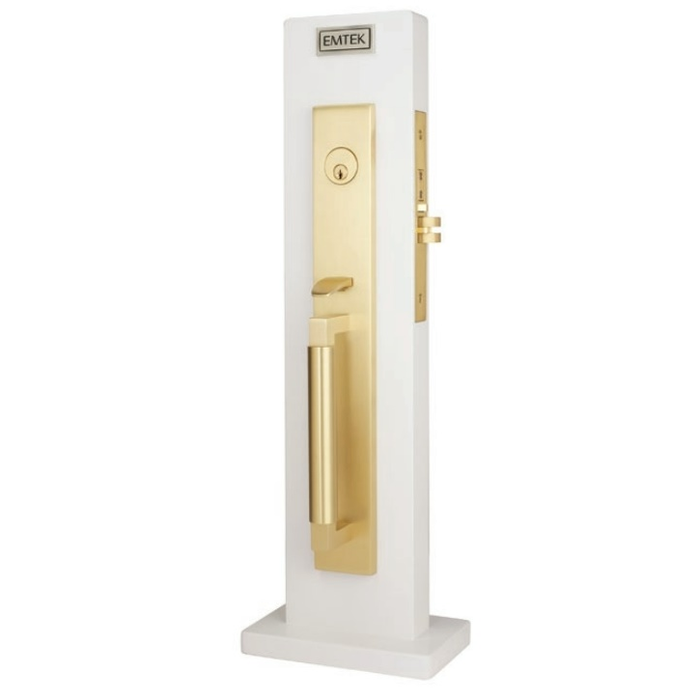

Emtek 3336 Hercules Smooth Full Length Mortise Entrance Handleset - Entry Set

Emtek 3336 Hercules Smooth Full Length Mortise Entrance Handleset - Entry Set

(No reviews yet) Write a Review

Model: F20-3336-75-RH-US26
From the Brass Collection
$1,081.00
$1,046.29
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,081.00
$1,046.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 3336 Hercules Smooth Full Length Mortise Entrance Handleset - Entry Set

- Can be ordered with any Brass Knob or Lever for the inside trim
- Sold as complete set. Includes Latch and Strike Plate

- 2-1/2" or 2-3/4" Backsets
- Standard Mortise Door Prep ANSI A115.1
- UL Listed Mortise with ANSI F20 or F13 Function
- Schlage C Keyway
- Handing required for All Mortise Locks



Specifications:

  • Backset: 2-1/2" or 2-3/4"
  • Door Prep: Standard Mortise ANSI A115.1
  • UL Function: ANSI F20 or F13
  • Door Thickness: 1-3/4" standard (specify if thicker)
  • Keyway: Schlage C
  • Handing: Required – specify left or right
  • Fire Rating: UL 180 minute



Manufacturer Resources:

Product Specs

Subcategory:
Mortise Entry Sets
Collection:
Brass
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Residential
Lock Type:
Mortise
Lock Function:
Entry
Series:
Lugano
Theme:
Contemporary
Electronic:
No
Keyed:
Yes
Handle Type:
Handleset
Keyed Function:
Single Cylinder
MAP Policy:
Yes
Product Model:
3336
Product Function:
Entry
Product Style:
Contemporary
Product Material:
Brass
Product Substrate:
Brass
Product Category:
Mechanical Locks
Department:
Door Hardware

Emtek F20-3336-75-RH-US26 – Frequently Asked Questions

1) Do I have to specify handing when ordering the Emtek 3336 Hercules mortise handleset?
Handing is required on every Emtek mortise entrance set, including the 3336. You pick LH, RH, LHR, or RHR, and the RHR and LHR options are the out-swing door choices. Get it wrong and the lock body will not work on the opening, so stand at the outside of the door, note which side the hinges are on and whether the door swings toward you or away, and order to that.
2) What backset does the Emtek 3336 mortise handleset need, and will it fit my existing mortise pocket?
Two backsets are offered on the 3336, 2-1/2 inch and 2-3/4 inch, and the lock uses the standard mortise door prep to ANSI A115.1. If the door is already prepped for a standard mortise lock, measure from the door edge to the center of the cylinder hole and order the backset that matches. On a new door, the prep gets cut to A115.1 for whichever backset you choose.
3) What is the difference between the F20 and F13 functions on the Emtek 3336 mortise lock?
F20 is the entrance function, F13 is the dormitory function, and both are offered on the 3336. Both are UL listed mortise functions. Emtek publishes separate installation instructions for each, so the lock body itself differs, which means the function is a decision you make at order time and not something you change later with a trim swap.
4) Can the Emtek 3336 handleset be keyed to match my other Schlage-keyed doors?
The 3336 uses the Schlage C keyway, so it keys into an existing Schlage C system. It is a single cylinder set, keyed outside with a thumbturn inside. Keyed alike and keyed different are both offered, and there is a keying-to-code field if your building already runs a bitting list.
5) Should I use a mortise handleset like the Emtek 3336 or a tubular handleset with a separate deadbolt?
A mortise set puts the latch and the deadbolt in one lock body inside a pocket routed into the door edge, which is why the 3336 needs a full A115.1 mortise prep and handing called out. A tubular handleset uses two bored holes instead, which is a far easier retrofit on an existing door: the Schlage Residential F60 Addison and the Kwikset 687 Amador are that style. Go mortise on a new or already-mortised door where you want one lock body and heavier brass hardware; go tubular where the door is bored for standard 2-1/8 inch holes and you do not want to cut a pocket.
6) What is a comparable full-length entry handleset if the Emtek 3336 Hercules Smooth does not suit the opening?
The Deltana 825871 Kingston Handleset is a solid brass entry handleset, and the Deltana 815871 St. Ann Handleset is another solid brass entry option. Both carry an entry function, the same function family the Emtek 3336 Hercules Smooth is built around. The difference to weigh is the lock body: the Emtek 3336 is a mortise lock prepped to standard mortise ANSI A115.1 and requires handing to be specified, so a door already bored for a mortise pocket is the natural home for it.
7) Is the Baldwin Estates 6542 Tremont mortise trim a substitute for the Emtek 3336 Hercules Smooth handleset?
They are not the same kind of purchase. The Baldwin Estates 6542 Tremont is entry mortise trim for 1-3/4 inch doors, offered in a single cylinder version and a double cylinder version. The Emtek 3336 Hercules Smooth is sold as a complete set including the latch and strike plate, with the mortise lock body itself in F20 entrance or F13 dormitory function. If a mortise lock body is already in the door and only the exterior and interior trim is being replaced, the Baldwin 6542 is the trim-only path; if the lock body is being supplied too, the 3336 covers it.
8) I want the same key to work on the entry handleset and the rest of the doors. How do the keyway options compare to the Emtek 3336?
The Emtek 3336 Hercules Smooth uses a Schlage C keyway. The Kwikset 687AMD SMC Amador Single Cylinder Handleset is a Grade 3 entrance handleset with an SC1 keyway SmartKey cylinder, while the Kwikset 687AMD SMT and 687BW SMT Belleview are SmartKey Grade 3 entrance handlesets. If a building is already keyed on a Schlage C system, the 3336 drops onto it directly and can be ordered keyed alike across a group of doors.
9) What comes in the box with the Emtek 3336 Hercules entrance handleset?
It ships as a complete set: exterior full length handleset, the mortise latch, and the strike plate, plus the interior knob or lever you choose. You still specify the inside trim, since that is a required selection rather than a default, and there are close to ninety knob and lever styles to pick from including the matching Hercules lever.
10) Is the Emtek 3336 mortise entrance handleset fire rated?
The 3336 mortise lock is UL listed with a 180 minute fire rating, in either the F20 entrance or F13 dormitory function. That is stated for the mortise lock itself, so if you are hanging a rated exterior door assembly the lock body is not what disqualifies it.
11) Is the Emtek 3336 handleset rated for a commercial opening?
Emtek catalogs the 3336 as residential hardware, in solid brass. It suits houses, condos, and high-end multi-family front doors. For a commercial entrance where a purchasing spec calls out an ANSI/BHMA grade, look at graded product instead: the Master Lock HDLB series handleset is listed as Grade 2, and the Schlage Residential F60 Addison as Grade 2.
12) I need a Baldwin or Deltana alternative to the Emtek 3336 mortise entry set. What else is there?
For mortise entry trim from another brand, the Baldwin Estates 6542 Tremont is offered in both single cylinder and double cylinder entry, and both are listed for 1-3/4 inch doors. If you are moving away from mortise entirely, Deltana's solid brass handlesets cover it, including the Hanover 803871B, St. Ann 815871, and Kingston 825871, all entry function, and the Montego 810871 spans 1-3/8 to 2 inch doors.
13) What handleset works on a door thicker than 1-3/4 inches if the Emtek 3336 is specified for standard thickness?
The Emtek 3336 Hercules Smooth is built for 1-3/4 inch doors as standard, with thicker doors called out at time of order. Where an off-the-shelf thicker range is wanted instead, the Weslock 1411 Traditionale Colonial Handleset with Eleganti Knob is a single cylinder set covering 1-3/4 inch to 2-1/4 inch, and the Yale BYRD256 CBARX Assure key free touchscreen deadbolt with Ridgefield passage handleset covers the same 1-3/4 inch to 2-1/4 inch range. The Deltana 810871 Montego Handleset covers 1-3/8 inch to 2 inch.
14) Which handleset should I choose if I want keypad or app entry rather than a keyed mortise lock like the Emtek 3336?
The Emtek 3336 Hercules Smooth is a mechanical single cylinder keyed set on a Schlage C keyway. For electronic access, the Yale Real Living BYRD226CBARX Assure Lock pairs a Wi-Fi and Bluetooth touchscreen deadbolt with a Ridgefield handleset for 1-3/4 inch to 2-1/4 inch doors, the BYRD226NRRX is the standalone touchscreen version of the same handleset for that same thickness range, and the Kwikset 815SCEHFL-CP913CNT San Clemente pairs a handleset with a contemporary SmartCode keypad deadbolt for 1-3/4 inch doors. All three are deadbolt-and-handleset assemblies rather than a mortise lock body.
15) I need a matching non-locking handleset for a door beside the one getting the Emtek 3336. What are the options?
The Emtek 3336 Hercules Smooth is a keyed entry set, so a companion inactive or non-locking door needs a different part. The Weslock 2815 Hillcrest Dummy Handleset with New Heaven Lever and the Weslock 6695 Belmont Dummy Handleset with Impresa Knob are both dummy-function handlesets covering 1-3/8 inch to 2 inch doors. The Schlage Residential JE285 Barcelona Style Handleset with Seville Lever is a Grade 2 non-keyed entry handleset for 1-3/8 inch to 1-3/4 inch doors, which latches without a key.
16) Does any comparable handleset carry a stated ANSI grade the way a specifier might require, compared with the Emtek 3336?
The Emtek 3336 Hercules Smooth is a UL listed mortise lock in ANSI F20 or F13 function with a UL 180 minute fire rating. Among the comparable handlesets, the Master Lock HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset, the Schlage Residential F60 Addison is Grade 2, and the Kwikset 687BW SMT Belleview is Grade 3. Those are bored-door handlesets rather than mortise assemblies, so the comparison is between a graded tubular set and a UL listed mortise lock.
17) What is the difference between the Emtek 3336 handleset and an interconnected lock like the Schlage JI18/19?
The Schlage Residential JI18/19 is an interconnected passage lock with a keyed deadbolt and Torino lever, Grade 2, for 1-3/8 inch to 1-3/4 inch doors. The lever itself is passage function and the security comes from the separate deadbolt. The Emtek 3336 Hercules Smooth is a single mortise lock body in F20 entrance or F13 dormitory function, with the latch and deadbolt inside one case and handing specified per door.
18) Are the Baldwin Wesley handlesets an equivalent to the Emtek 3336 Hercules Smooth?
The Baldwin Wesley Handleset is offered with an Alcott Knob or a Carnaby Knob for the interior, both in entrance function, which matches the entry function the Emtek 3336 Hercules Smooth carries. The Emtek 3336 also takes any brass knob or lever for the inside trim, so the interior style is chosen at order on either. The dividing question is the door prep: the 3336 is a mortise set requiring handing to be specified.
19) If I need double cylinder keying on both sides of a glass front door, is the Emtek 3336 the right choice?
The Emtek 3336 Hercules Smooth is a single cylinder keyed set. Where the opening calls for a key on both sides, the Baldwin Estates 6542 Tremont Double Cylinder Entry Mortise Trim is a double cylinder mortise trim for 1-3/4 inch doors, alongside the single cylinder 6542 version.
20) What finishes does the Emtek 3336 Hercules handleset come in, and can I match it across a whole building?
Six finishes: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). Since the inside trim is ordered separately from a large knob and lever range, you can run one finish across entry sets and interior hardware. Unlacquered brass is the one to think twice about on a fleet: it has no protective coating and will patina at different rates depending on how much each door gets handled.
21) Which interior lever or knob should I order with the Emtek 3336 Hercules handleset?
Any of Emtek's brass knobs or levers can go on the inside, and the selection is required rather than optional, so nothing ships until you name one. Matching the exterior means the Hercules lever (HEC). If you want contrast, the range runs from contemporary bar and square pulls (T-Bar, R-Bar, L-Square in faceted, hammered, knurled, Tribeca and white marble) through traditional knobs like Providence, Waverly and Victoria, to crystal knobs including Bristol, Windsor and Georgetown.
22) Is there a brass entry handleset alternative to the Emtek 3336 for a lighter-duty residential door?
The Emtek 3336 Hercules Smooth is a brass mortise entrance set. For a bored residential door, the Deltana 803871B Hanover Handleset is a solid brass entry handleset, and the Pamex FS7P31 Lexington Single Cylinder Handleset in satin nickel covers 1-3/8 inch to 1-3/4 inch doors in entry function. Both skip the mortise pocket the 3336 requires.
