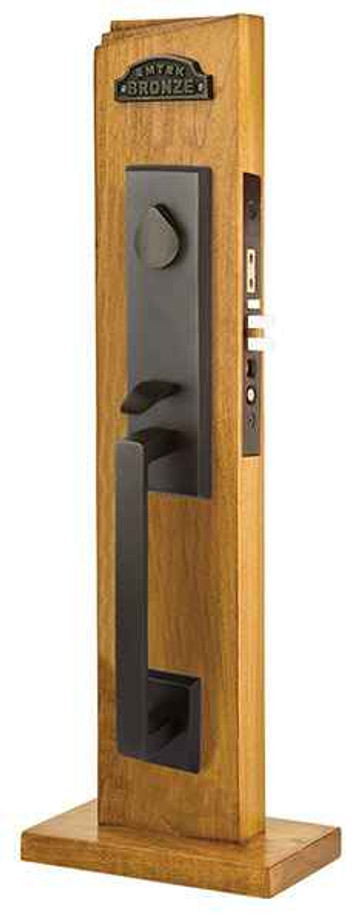

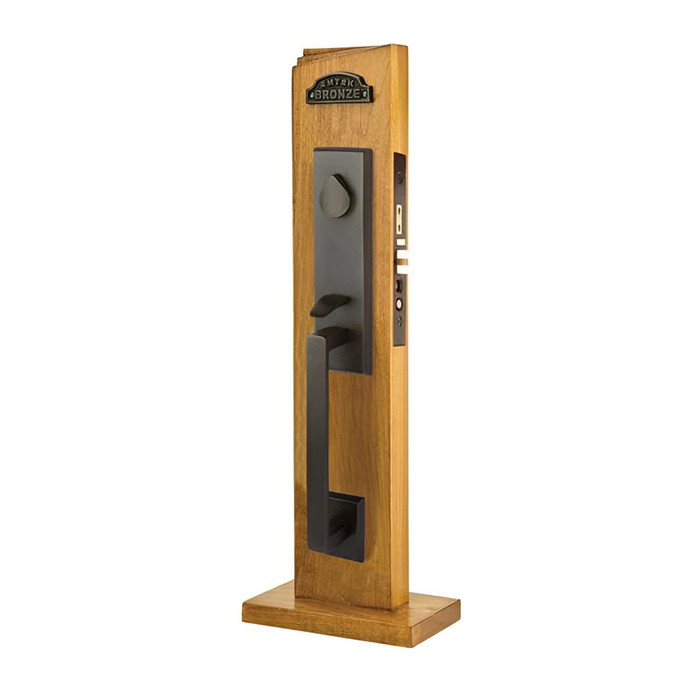

Emtek 3340 Rustic Modern Rectangular Sandcast Bronze Mortise Entrance Handleset - Entry Set EMTEK-3340

Emtek 3340 Rustic Modern Rectangular Sandcast Bronze Mortise Entrance Handleset - Entry Set

(No reviews yet) Write a Review

Model: F20-3340-75-RH-FB
From the Sandcast Bronze Collection
$1,197.00
$957.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,197.00
$957.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 3340 Rustic Modern Rectangular Sandcast Bronze Mortise Entrance Handleset - Entry Set

- Can be ordered with any Sandcast Bronze Knob or Lever for the inside trim
- Sold as complete set. Includes Latch and Strike Plate

- 2-1/2" or 2-3/4" Backsets
- Standard Mortise Door Prep ANSI A115.1
- UL Listed Mortise with ANSI F20 or F13 Function
- Schlage C Keyway
- Handing required for All Mortise Locks



Specifications:

  • Backset: 2-1/2" or 2-3/4"
  • Door Prep: Standard Mortise ANSI A115.1
  • UL Function: ANSI F20 or F13
  • Door Thickness: 1-3/4" standard (specify if thicker)
  • Keyway: Schlage C
  • Handing: Required – specify left or right
  • Fire Rating: UL 180 minute

Product Specs

Subcategory:
Mortise Entry Sets
Collection:
Sandcast Bronze
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Residential
Lock Type:
Mortise
Lock Function:
Entry
Series:
Rustic Modern Rectangular
Theme:
Rustic Living
Electronic:
No
Keyed:
Yes
Handle Type:
Handleset
Keyed Function:
Single Cylinder
MAP Policy:
Yes
Product Model:
3340
Product Function:
Entry
Product Shape:
Rectangular
Product Style:
Sandcast Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek F20-3340-75-RH-FB – Frequently Asked Questions

1) Do I have to specify handing when ordering the Emtek 3340 mortise handleset?
Yes, handing is required on every Emtek mortise lock, including the 3340 Rustic Modern Rectangular handleset. The choices are LH, RH, LHR and RHR, with the reverse-bevel options (LHR, RHR) used on out-swing doors. Get it wrong and the lever or knob throw and the latch bevel will be backwards in the door.
2) What backset does the Emtek 3340 handleset use, and will it drop into an existing mortise pocket?
Backset is 2-1/2 inch or 2-3/4 inch, so it can match either of the two common mortise pockets. The door prep is standard mortise to ANSI A115.1, which means it goes into a pocket cut to that same standard without modification. Measure from the door edge to the center of the existing cylinder hole to pick the right backset.
3) What is the difference between the F20 and F13 function on the Emtek 3340?
F20 is the entrance function: key retracts the latch from outside and the inside trim is always free to exit. F13 is the dormitory function, where the outside trim locks and stays locked until unlocked by key, so it does not re-lock itself behind a resident. Both are offered on the 3340 and both are UL listed mortise functions. Pick F20 for a normal front entry, F13 where you want the outside handle to stay locked after each use.
4) Can I put the Emtek 3340 handleset on a fire-rated entry door?
The mortise lock in the 3340 set carries a UL 180 minute fire rating and is UL listed in both the F20 and F13 functions. That covers a 3-hour opening on the lock side; the door, frame and closer still have to carry their own labels for the assembly to be compliant.
5) What keyway does the Emtek 3340 use, and can it be keyed to match my other locks?
It ships on the Schlage C keyway, which is the most common residential keyway in North America, so it can be keyed into an existing Schlage C system. Keying is single cylinder (key outside, thumbturn inside), and you can order keyed alike or keyed different, with an option to key to a specific code if you already have a code on file.
6) My door is bored for a tubular handleset, not a mortise pocket. Can I still use the Emtek 3340?
No. The 3340 needs a routed mortise pocket cut to ANSI A115.1; a tubular prep with two cross-bores will not accept it without re-machining the door edge. If the door is already tubular-prepped, look at a tubular handleset instead, such as the Sure-Loc Alta tubular handleset with adjustable backset or the Weslock 2810 Hillcrest single cylinder handleset, which fits 1-3/8 to 2 inch doors.
7) What is the equivalent of the Emtek 3340 if I want keyless or keypad entry on the same opening?
The Emtek 3340 is a keyed mechanical mortise set with a Schlage C keyway and no electronics. For an electronic opening, the Kwikset 815 San Clemente handleset pairs a Halifax lever with a contemporary SmartCode keypad deadbolt and ships with the RCAL latch and RCS strike for 1-3/4 inch doors. Yale Real Living offers the Assure Lock touchscreen deadbolt with Ridgefield handleset in a Wi-Fi and Bluetooth version and in a standalone version, both for 1-3/4 to 2-1/4 inch doors. These use a separate deadbolt and handleset rather than the 3340's single mortise case.
8) What is the closest alternative to the Emtek 3340 handleset if the door is prepped for mortise trim rather than a full mortise lock?
The Emtek 3340 Rustic Modern Rectangular handleset is a complete mortise entrance set that includes the latch and strike and uses standard mortise door prep to ANSI A115.1. If the door already has a mortise lock body in it and you only need the trim, the Baldwin Estates 6542 Tremont single cylinder entry mortise trim is the trim-only route, and it lists a 1-3/4 inch door thickness. Baldwin also builds the 6542 Tremont in a double cylinder entry mortise trim version if the opening calls for a key on both sides, where the Emtek 3340 is a single cylinder keyed set.
9) I need an entry handleset but my door is only prepped for a tubular bore - what should I use instead of the Emtek 3340?
The Emtek 3340 is a mortise handleset and needs standard mortise door prep per ANSI A115.1 plus handing specified left or right. For a bored door, tubular handlesets are the substitute: the Sure-Loc Alta is a tubular handleset with adjustable backset, and the Sure-Loc Aspen is a single cylinder keyed entry handleset with adjustable backset. Schlage Residential F60 Addison with Accent lever is another keyed entry handleset, Grade 2, fitting 1-3/8 to 1-3/4 inch doors.
10) Does the Emtek 3340 come with the latch and strike, or do I order those separately?
It is sold as a complete set including the mortise latch and the strike plate. The one thing you choose rather than receive by default is the interior trim: the set is ordered with a Sandcast Bronze knob or lever of your choosing, from levers such as Durango, Teton and Yuma to knobs like Butte, Winchester and Modern Square.
11) Is the Emtek 3340 a commercial-grade handleset for an apartment building entry?
The 3340 is catalogued as residential hardware, and the sandcast bronze trim is a decorative entry set rather than a graded commercial lockset. The mortise body itself is UL listed and fire rated at 180 minutes, so it suits high-end single-family and custom residential front doors. For a graded product, the Schlage F60 Addison and the Schlage JE285 handlesets are Grade 2, and the Master Lock HDLB Series single cylinder deadbolt handleset is also Grade 2.
12) I want a double cylinder mortise entry set, key on both sides. Is the Emtek 3340 that?
No, the 3340 is single cylinder: key outside, thumbturn inside. If the opening has glass near the lock and the spec calls for key on both sides, the Baldwin Estates 6542 Tremont double cylinder entry mortise trim is a double cylinder mortise option for 1-3/4 inch doors.
13) Is there a graded alternative to the Emtek 3340 for a rental property where I care more about the ANSI grade than the finish?
The Emtek 3340 is a residential sandcast bronze mortise entrance set, UL listed with ANSI F20 or F13 function and a UL 180 minute fire rating. If an ANSI grade on the paperwork is what drives the decision, the Master Lock HDLB series single cylinder deadbolt handleset is Grade 2 entrance, Schlage Residential F60 Addison is Grade 2 entrance, and the Kwikset 687 Amador single cylinder handleset is Grade 3 entrance for 1-3/4 inch doors.
14) My door is thicker than 1-3/4 inches - can I still use the Emtek 3340 or is there a better option?
The Emtek 3340 is built for 1-3/4 inch doors as standard and thicker doors are accommodated by specifying the thickness when ordering. Among comparable entry handlesets, the Weslock 1411 Traditionale Colonial with Eleganti knob covers 1-3/4 to 2-1/4 inch doors, and the Weslock 2810 Hillcrest single cylinder with Hudson knob covers 1-3/8 to 2 inch doors. Note those are tubular-style handlesets rather than mortise.
15) Which handlesets look like a substitute for the Emtek 3340 but will not lock the door?
The Emtek 3340 is a keyed entry set with F20 entrance or F13 dormitory function. Several similar-looking handlesets are not keyed: the Weslock 6695 Belmont with Impresa knob and the Weslock 2815 Hillcrest with New Heaven lever are dummy function, and the Schlage Residential JE285 Barcelona with Seville lever is a non-keyed entry function set. Use those only on inactive or double-door leaves, not where you need the 3340's keyed operation.
16) I want a solid brass entry handleset instead of the Emtek 3340 sandcast bronze - what are the options?
The Emtek 3340 is bronze, offered in Flat Black Bronze, Medium Bronze and Tumbled White Bronze. For a solid brass body in an entry function, Deltana offers the Hanover 803871B, the St. Ann 815871 and the Kingston 825871, all solid brass entry handlesets, plus the Montego 810871 which fits 1-3/8 to 2 inch doors. Baldwin's Wesley handleset is also an entrance function set and pairs with either the Alcott or Carnaby knob for interior trim, similar to the way the 3340 is ordered with a chosen knob or lever inside.
17) Do I need to specify handing on alternatives to the Emtek 3340?
Handing must be specified on the Emtek 3340 because all mortise locks are handed, and it is offered LH, RH, LHR and RHR for out-swing doors. Tubular handlesets with adjustable backsets avoid that ordering step: the Sure-Loc Madison keyed entry, Coral and Aspen handlesets are all built with an adjustable backset, and the Pamex FS7P31 Lexington single cylinder handleset covers 1-3/8 to 1-3/4 inch doors. Those are non-mortise designs, so the door prep differs from the 3340's ANSI A115.1 mortise pocket.
18) The Emtek 3340 uses a Schlage C keyway - what if I need SmartKey instead?
The Emtek 3340 is keyed to the Schlage C keyway and can be ordered keyed alike or keyed different. If your property is standardized on Kwikset SmartKey, the Kwikset 687 Amador exterior-only single cylinder handleset is offered in a SmartKey version and in an SC1 keyway SmartKey version, both Grade 3 for 1-3/4 inch doors, and the Kwikset 687 Belleview is the same SmartKey arrangement in a different grip style.
19) What finishes does the Emtek 3340 Rustic Modern Rectangular handleset come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are living finishes on solid cast bronze, so expect them to develop character with weather and handling rather than stay uniform like a plated brass.
20) What should I use instead of the Emtek 3340 if I need an interconnected lever and deadbolt rather than a handleset?
The Emtek 3340 is a mortise handleset with the grip on the exterior and a chosen knob or lever inside, running on a single mortise case. If the specification calls for an interconnected lockset instead, the Schlage Residential JI18/19 is an interconnected passage lock with keyed deadbolt and Torino lever in satin stainless steel, Grade 2, for 1-3/8 to 1-3/4 inch doors. That is a lever-and-deadbolt arrangement rather than the 3340's handleset grip.
