Emtek 3325 Rectangular Monolit...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,197.00
$957.60

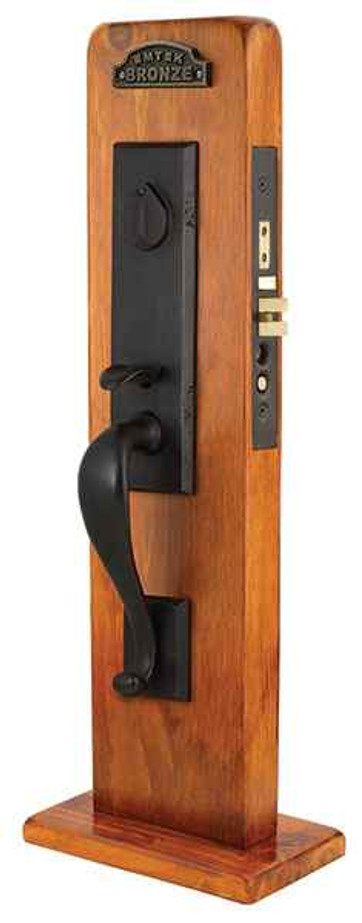

Emtek 3325 Rectangular Monolithic Sandcast Bronze Mortise Entrance Handleset - Entry Set

Emtek 3325 Rectangular Monolithic Sandcast Bronze Mortise Entrance Handleset - Entry Set

(No reviews yet) Write a Review

Model: F20-3325-75-RH-FB
From the Sandcast Bronze Collection
$1,197.00
$957.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,197.00
$957.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 3325 Rectangular Monolithic Sandcast Bronze Mortise Entrance Handleset - Entry Set

- Can be ordered with any Sandcast Bronze Knob or Lever for the inside trim
- Sold as complete set. Includes Latch and Strike Plate

- 2-1/2" or 2-3/4" Backsets
- Standard Mortise Door Prep ANSI A115.1
- UL Listed Mortise with ANSI F20 or F13 Function
- Schlage C Keyway
- Handing required for All Mortise Locks



Specifications:

  • Backset: 2-1/2" or 2-3/4"
  • Door Prep: Standard Mortise ANSI A115.1
  • UL Function: ANSI F20 or F13
  • Door Thickness: 1-3/4" standard (specify if thicker)
  • Keyway: Schlage C
  • Handing: Required – specify left or right
  • Fire Rating: UL 180 minute

Product Specs

Subcategory:
Mortise Entry Sets
Collection:
Sandcast Bronze
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Residential
Lock Type:
Mortise
Lock Function:
Entry
Series:
Rectangular
Theme:
Rustic Living
Electronic:
No
Keyed:
Yes
Handle Type:
Handleset
Keyed Function:
Single Cylinder
MAP Policy:
Yes
Product Model:
3325
(CTC) Center-to-Center:
5-1/2"
Product Function:
Entry
Product Shape:
Rectangular
Product Style:
Sandcast Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek F20-3325-75-RH-FB – Frequently Asked Questions

1) Do I have to specify handing when ordering the Emtek 3325 mortise handleset?
Handing is required on every 3325 order, and it can't be reversed in the field the way a tubular latch can. Four choices: LH, RH, LHR, or RHR, with the R versions being out-swing doors. Stand outside the door: if the hinges are on your left and the door swings away from you, that's LHR. Get it wrong and the lever throws the wrong way on the wrong face of the door.
2) What backset does the Emtek 3325 handleset use, and will it fit my existing mortise pocket?
Two backsets are offered on the 3325, 2-1/2 inch and 2-3/4 inch, so measure from the door edge to the center of the existing lever hub before you order. The door prep is standard mortise per ANSI A115.1, which is the common commercial and heavy residential mortise pocket, so if the existing lock is a standard mortise case in the matching backset it drops into the same cutout.
3) Will the Emtek 3325 work on a door thicker than 1-3/4 inches?
Standard build is for a 1-3/4 inch door, which is the usual entry door thickness. Thicker doors are handled by specifying the actual thickness at the time of order, and there's a door thickness field on the order form for exactly that. Don't order standard and shim it, the spindle and cylinder lengths change with thickness.
4) What is the difference between F20 and F13 on the Emtek 3325 mortise lock?
F20 is the entrance function: key retracts the latch from outside, inside lever always free, and the thumbturn or button controls outside locking. F13 is the dormitory function, where the outside lever stays locked and the key is required from outside regardless of what the inside is doing. Pick F20 for a house or an apartment front door where the resident wants to leave it unlocked; pick F13 where the opening must stay locked at all times, like a unit door off a common corridor. Both are UL listed on this handleset.
5) Can the Emtek 3325 handleset go on a fire rated door?
The mortise lock is UL Listed with a 180 minute fire rating, so it is rated for openings up to a 3 hour fire door assembly. That matters for the corridor and stair doors in multi-family and hospitality work, where a residential-grade tubular handleset would not be acceptable.
6) Can the Emtek 3325 be keyed alike with the other locks in my house?
The 3325 uses a Schlage C keyway and is single cylinder, so it keys with anything else on Schlage C. It can be ordered keyed different or keyed alike across multiple sets, and there's a field to key it to a specific code if you already have a keying schedule running in the building.
7) What comes in the box with the Emtek 3325 entry set, and do I need to buy the interior knob separately?
Sold as a complete set with the mortise latch and strike plate included. The interior trim is a required selection, not an extra purchase: choose any Sandcast Bronze lever (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) or knob (Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town, Providence) and it ships as one set.
8) What is the center to center on the Emtek 3325 rectangular handleset?
5-1/2 inches center to center between the handle mounting points. If you are replacing an older handleset and want to land on the existing through-bolt holes, that is the number to check against the door, otherwise you will be plugging and re-boring the face.
9) What finishes does the Emtek 3325 sandcast bronze handleset come in, and will they patina?
Three finishes: Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. All are solid sandcast bronze rather than a plated finish, so the color runs through the material and the surface will darken and soften with handling rather than wearing through to a different metal underneath.
10) Should I use a mortise handleset like the Emtek 3325 or a standard tubular deadbolt-and-handleset?
The 3325 is a mortise lock, meaning one steel case pocketed into the door edge handles both the latch and the deadbolt, worked from a single ANSI A115.1 prep. A tubular handleset instead uses two separate bores and two mechanisms. Go mortise when the door is thick, heavy, or fire rated (this one carries a UL 180 minute rating) or when you want one keyed case doing all the work. Go tubular when the door is already bored for a standard 2-1/8 inch cross bore and you don't want to cut a pocket. Most of the alternatives in this class are tubular, for instance the Schlage F60 Addison and the Kwikset 687 Amador.
11) What other mortise entry handlesets could I buy instead of the Emtek 3325?
The closest like-for-like alternative in mortise is the Baldwin Estates 6542 Tremont entry mortise trim, offered in single cylinder (6542ENTR) or double cylinder (6542DBLC), both listed for a 1-3/4 inch door. Note that the Baldwin is trim rather than a complete set the way the 3325 is, so you match it to a mortise case. If you want a solid brass rather than bronze look in a full handleset, Deltana's Hanover 803871B, St. Ann 815871 and Kingston 825871 are all entry-function solid brass sets.
12) Is the Emtek 3325 handleset suitable for a commercial building or an apartment complex?
Emtek classes the 3325 as residential hardware, so for a high-traffic commercial opening on a cycle spec you would be looking at a Grade 1 commercial mortise lock instead. Where it does earn a place in multi-family and hospitality work is on unit entry doors: it is a UL listed mortise case with a 180 minute fire rating and an F13 dormitory option, and it keys on Schlage C so it drops into an existing building keying schedule.
13) Can I get an Emtek 3325 handleset with a keypad or smart lock?
No. The 3325 is a mechanical, key-operated mortise set with no electronic option. If you want a handleset with electronic access, look at the Yale Assure Lock touchscreen deadbolts paired with the Ridgefield handleset (the BYRD226NRRX standalone, or BYRD226CBARX with Wi-Fi and Bluetooth), or the Kwikset 815 San Clemente handleset with the Contemporary SmartCode keypad deadbolt. Those are tubular deadbolt assemblies, not mortise, so the door prep is different.
14) I need a matching handleset on a door that doesn't lock. Does the Emtek 3325 come as a dummy?
The 3325 is built as a keyed entry set only, single cylinder, so it isn't a dummy. For an inactive leaf or a French door slab where you just need the look, the Weslock 6695 Belmont with Impresa knob and the Weslock 2815 Hillcrest with New Heaven lever are dummy-function handlesets, both listed for 1-3/8 to 2 inch doors. For a non-keyed but operating door, the Schlage JE285 Barcelona with Seville lever is a non-keyed entry handleset for 1-3/8 to 1-3/4 inch doors.
